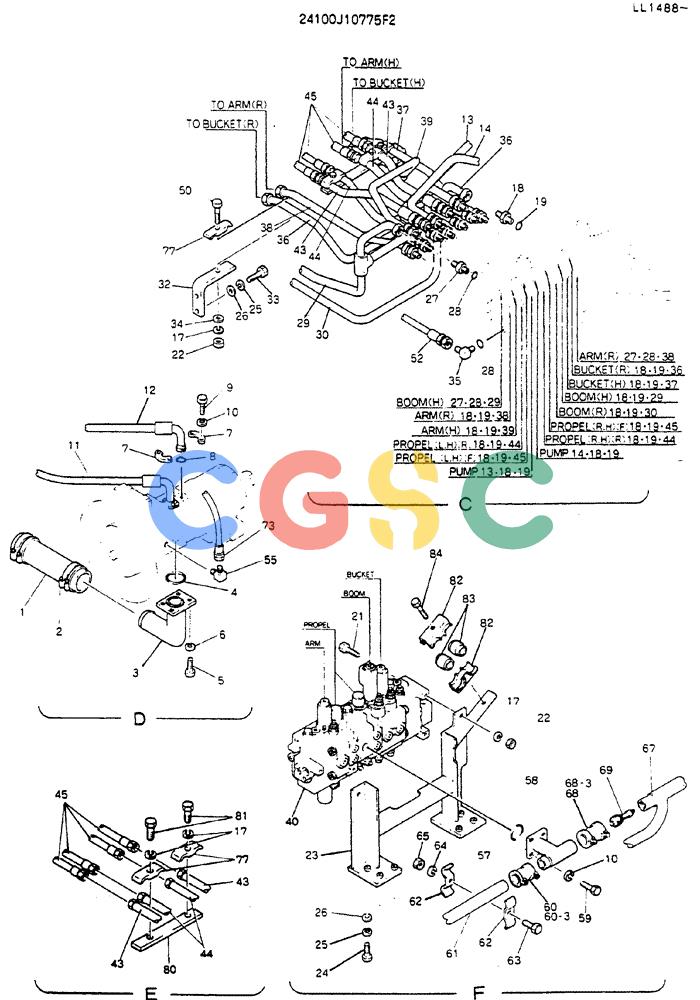

| . . | 24100J10755F2 | [1] | HYDR LINES.UPP | |
| 1. | 2418T7002D2 | [1] | FLEXIBLE HOSE | KOB |
| 2. | ZC15X10500 | [4] | CLIP | KOB |
| 3. | 2418P19373 | [1] | TUBE | KOB |
| 4. | ZD11G07500 | [1] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.40 ± 0.65 x OD 80mm |
| 5. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 6. | ZW22K12000 | [4] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 7. | ZE13X12000 | [4] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| 8. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 9. | ZS13C10035 | [8] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 10. | ZW22X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 11. | 2444Z2287D1 | [1] | FLEXIBLE HOSE | KOB |
| 12. | 2444Z2323D1 | [1] | FLEXIBLE HOSE | KOB |
| 13. | 2418T17566 | [1] | RIGID TUBE | KOB |
| 14. | 2418T18186 | [1] | TUBE | KOB |
| 16. | ZS13C12060 | [2] | SCREW | KOBM12x1.75x60mm Superseded by part number: ZS18C12060 |
| 17. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 18. | ZA23F28016 | [12] | CONNECTION | KOB1" PF - M36x1.50x49mm Long |
| 19. | ZD12P02900 | [17] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 21. | 2420T4331D2 | [3] | SCREW,M12 x 1.75 x 160mm | KOBM12x1.75x160mm |
| 22. | ZN13C12010 | [5] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 23. | 2416N3330 | [1] | BRACKET | BRACKET |
| 24. | ZS13C16055 | [6] | SCREW | KOBM16x2.0x55mm |
| 25. | ZW22X16000 | [10] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 26. | R16T0152D2 | [10] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 27. | ZA23F28012 | [2] | HYD CONNECTOR | KOB |
| 28. | ZD12P02400 | [3] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 29. | 2418P12280 | [1] | TUBE | TUBE |
| 30. | 2418P12279 | [1] | RIGID TUBE | KOB |
| 31. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| 32. | 2416P8799 | [2] | SUPPORT | KOB |
| 33. | ZS13C16035 | [4] | SCREW | KOBM16x2.0x35mm |
| 34. | ZW13H12000 | [2] | WASHER | KOB |
| 35. | ZA33F22012 | [1] | ELBOW | KOB |
| 36. | 2418P19329 | [1] | TUBE | KOB |
| 37. | 2418T17804 | [1] | TUBE | KOB |
| 38. | 2418P18112 | [1] | RIGID TUBE | KOB |
| 39. | 2418T17805 | [1] | RIGID TUBE | KOB |
| 40. | 2436U1312F6 | [1] | VALVE.CONTROL | |
| 43. | 2418P20759 | [2] | TUBE | KOB |
| 44. | 2418P20760 | [2] | TUBE | KOB |
| 45. | 2444Z2399D8 | [4] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1173D2 |
| 46. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 47. | ZX21M08110 | [1] | FLEXIBLE HOSE | KOB1100mm Long (43-19/64 in) |
| 48. | ZH52X08000 | [1] | TEE,30 Degree Fl, Male, PF 1/2" x 1/2" x 1/2", O-Ring | KOB(Incls. O-Ring 237-6008) |
| 49. | ZX21M08150 | [1] | HOSE | KOB1500mm Long (59-3/64 in) |
| 50. | ZS13C12085 | [2] | SCREW | KOB Superseded by part number: ZS18C12085 |
| 51. | ZH22X12016 | [1] | HYD CONNECTOR | KOB |
| 52. | 2444Z2517D2 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1170D4 |
| 53. | 2444Z2418 | [1] | ELBOW | KOB |
| 55. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOBElbow, 90° -- 3/4 PF (Incls. O-Ring 237-6012) |
| 56. | ZX32M12135 | [1] | FLEXIBLE HOSE | KOB |
| 57. | 2418P20758 | [1] | TUBE | |
| 58. | ZD11G06000 | [1] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOBID 59.40 ± 0.61 x OD 65mm |
| 59. | ZS13C10030 | [4] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 60. | R44P0089D13 | [3] | COUPLING | KOB Superseded by part number: ZG15F04500 |
| 60-3. | R44P0089D13S3 | [2] | GASKET | KOB |
| 61. | 2418P17879 | [1] | TUBE | KOB |
| 62. | 2432T2388 | [3] | CLAMP | CLAMP |
| 63. | ZS13C08025 | [1] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 64. | ZW22X08000 | [2] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 65. | ZN13C08007 | [1] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 67. | 2418P17880 | [1] | TUBE | KOB |
| 68. | R44P0089D8 | [1] | ELASTIC JOINT,101mm ID x 148.8mm OD x 165.1mm L | KOB |
| 68-3. | R44P0089D8S3 | [2] | GASKET | KOB |
| 69. | 2436R393S4 | [1] | VALVE | KOBBY-PASS |
| 70. | R44P0089D4 | [1] | COUPLING | KOB Superseded by part number: ZG15F05100 |
| 70-3. | R44P0089D4S3 | [2] | GASKET,50.85mm ID x 67.20mm OD | KOB |
| 71. | 2416T22652 | [1] | BRACKET | KOB |
| 72. | ZS13C08040 | [1] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 73. | ZX21M12045 | [1] | FLEXIBLE HOSE | KOB450mm Long (17-23/32 in), Serial Range: LL1488-LL1523 |
| . . | ZX41M12050 | [1] | HOSE ASSY, Start Serial: LL1524 | HOSE ASSY, Start Serial: LL1524 |
| 75. | ZS13C12025 | [1] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 77. | ZC36X28014 | [4] | CLAMP | KOBDouble Line -- 100x38x16mm (Ø30mm) |
| 80. | 2416T21619D2 | [1] | BLOCK | KOB |
| 81. | ZS13C12055 | [2] | SCREW | KOBM12x1.75x55mm Superseded by part number: ZS18C12055 |
| 82. | 2432Z467 | [2] | CLAMP | KOB |
| 83. | 2405Z155 | [2] | BUSHING | BUSHING |
| 84. | ZS13C12100 | [1] | SCREW | KOB Superseded by part number: ZS18C12100 |
