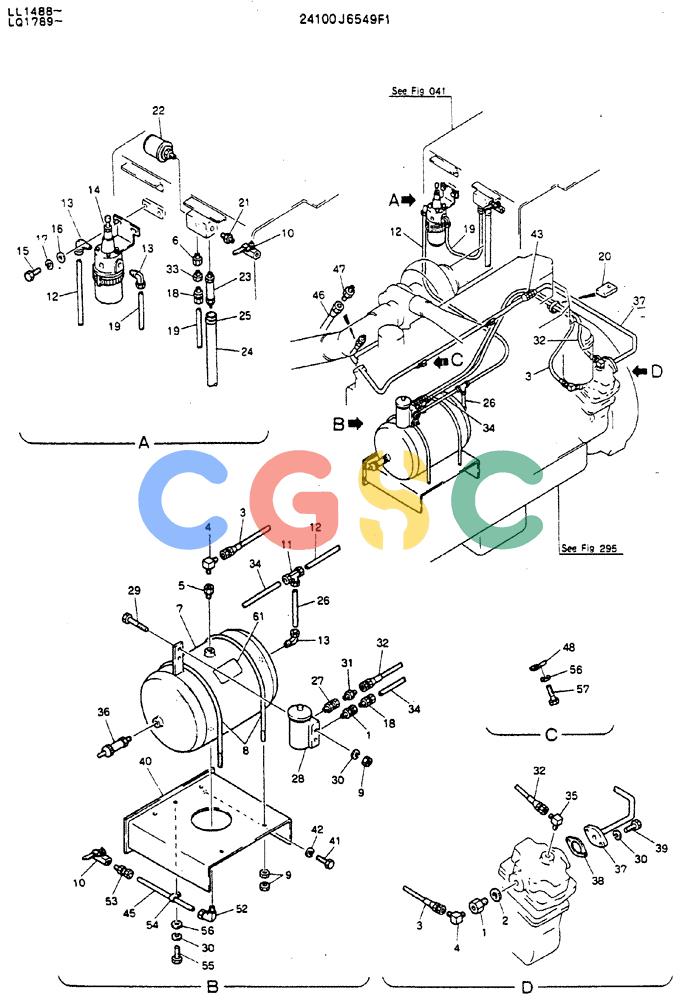

神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (04-002) - AIR-LINES, LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6549F1 | [1] | AIR-LINES,UPP | |
| 1. | 2444T2574 | [1] | UNIVERSAL JOINT | KOB |
| 2. | 2420Z1209D2 | [1] | GASKET | KOB |
| 3. | 2420R349D140 | [1] | HOSE,6.35mm ID x 1400mm L | KOB1/4" PF |
| 4. | ZH32Z04000 | [2] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 5. | ZG21B08004 | [1] | BUSHING | KOB |
| 6. | 2436Z316 | [1] | VALVE | KOB |
| 7. | 2427N1665 | [1] | TANK | KOBAIR |
| 8. | B20T0041 | [2] | U-BOLT | KOB |
| 9. | ZN13C08007 | [11] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 10. | 2436R339 | [2] | COCK, DRAIN | KOB |
| 11. | ZH51K08000 | [1] | TEE | KOB |
| 12. | ZX15K08110 | [1] | KIT | KOBNYLON |
| 13. | ZH31K08004 | [3] | ELBOW | KOB |
| 14. | 2446R316F1 | [1] | VALVE PRESSURE RELIE | KOB |
| 15. | ZS18C06014 | [2] | SCREW,Hex, M6 x 14mm | KOBM06x1.0x14mm |
| 16. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 17. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 18. | ZH21K08004 | [2] | HYD CONNECTOR | KOB |
| 19. | ZX15K08050 | [1] | PLASTIC-RUBBER TUBE | KOB |
| 20. | 2420T3483 | [1] | GROMMET | KOB |
| 21. | ZG21E04000 | [1] | HYD CONNECTOR | KOBNIPPLE |
| 22. | 2479R1338 | [1] | SENDER UNIT | KOB |
| 23. | 2436Z274D4 | [1] | VALVE PRESSURE RELIE | KOB |
| 24. | 2420Z1224 | [1] | FLEXIBLE HOSE | KOBGuard -- ID 22 x OD 26 x 300mm Long (11-13/16 in) |
| 25. | ZC15X02600 | [1] | CLAMP | KOB |
| 26. | ZX15K08009 | [1] | TUBE | KOBNYLON |
| 27. | 2444T2145 | [1] | HYD CONNECTOR | KOB |
| 28. | 2450U212F1 | [1] | GOVERNOR | KOB |
| 29. | ZS13C08075 | [2] | BOLT | KOBM08x1.25x75mm Superseded by part number: ZS18C08075 |
| 30. | ZW22X08000 | [6] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 31. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 32. | 2420R349D150 | [1] | HOSE,6.35mm ID x 1500mm L | KOBPF 1/4 |
| 33. | ZG22B08004 | [1] | BUSHING | KOB |
| 34. | ZX15K08025 | [1] | KIT | KOBNYLON |
| 35. | ZH32Z04002 | [1] | ELBOW | KOB90° -- 1/4" PF - 1/8" PT |
| 36. | R38T0001D4 | [1] | VALVE PRESSURE RELIE | KOB |
| 37. | 2418P17891 | [1] | TUBE | KOB |
| 38. | 2418Z722 | [3] | PACKING | KOB Superseded by part number: YE93H01024P1 |
| 39. | ZS13C08020 | [1] | SCREW | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 40. | 2416T20745 | [1] | BRACKET | |
| 41. | ZS13C12020 | [2] | SCREW | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 42. | ZW22X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 43. | R44P0045D2 | [1] | PLUG | KOB |
| 45. | 2418T17931 | [1] | TUBE | KOB |
| 46. | 2418P18225 | [1] | TUBE | KOB |
| 47. | R44P0043D2 | [1] | HYD CONNECTOR | KOB |
| 48. | ZC25X12009 | [2] | CLAMP | |
| 52. | ZF33E10004 | [1] | ELBOW | ELBOW |
| 53. | ZF23E10004 | [1] | HYD CONNECTOR | KOB |
| 54. | ZC45X10009 | [1] | CLIP | KOB Superseded by part number: ZC46X10009 |
| 55. | ZS13C08012 | [1] | SCREW | KOBM08x1.25x12mm Superseded by part number: ZS18C08012 |
| 56. | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 57. | ZS18C08018 | [2] | CAPSCREW,Hex, M8 x 18mm | KOBSCREW M08x1.25x16mm Superseded by part number: ZS18C08020 |
