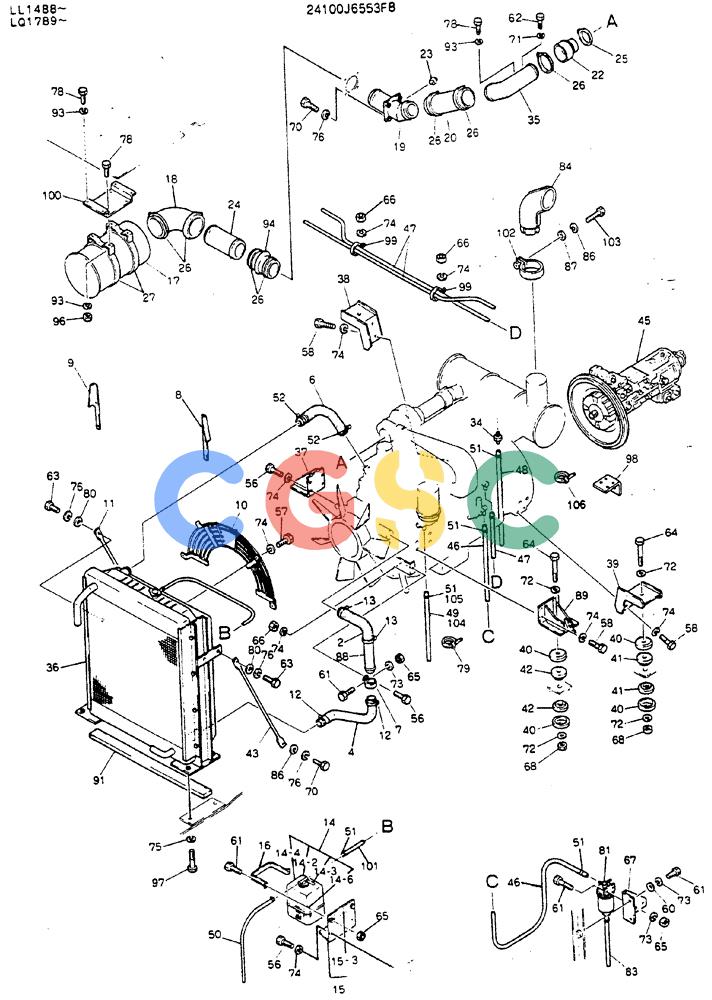

| . . | 24100J6553F8 | [1] | POWER-PLANT | |
| 2. | 2444Z2377 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444Z4148 |
| 4. | 2444Z2501 | [1] | FLEXIBLE HOSE | KOB |
| 6. | 2444Z2502 | [1] | FLEXIBLE HOSE | KOB |
| 7. | 2432T2366 | [1] | CLAMP | KOB |
| 8. | 2418T17567 | [1] | PLATE | PLATE |
| 9. | 2418T17570 | [1] | PLATE | |
| 10. | 2414N1951 | [1] | GUARD | KOB |
| 11. | 2416T13494 | [1] | STAY | STAY |
| 12. | ZC15X07000 | [2] | CLIP | KOB |
| 13. | ZC15X08000 | [2] | CLIP | KOB |
| 14. | 2427U203F3 | [1] | TANK | KOBRADIATOR SUB |
| 14-2. | 2427U203S2 | [1] | HYD CONNECTOR | KOB |
| 14-3. | 2427U203S3 | [1] | LABEL | KOB |
| 14-4. | 2427U203S4 | [1] | TANK | KOB |
| 14-6. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| 15. | 2416P8513 | [1] | BRACKET | BRACKET |
| 15-3. | 2416Z313D7 | [1] | SEAT,RUBBER | |
| 16. | 2416T10844 | [1] | BRACKET | KOB |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONCLEANER ASSY.AIR SEE FIGURE 022 |
| 18. | 2444Z1600D3 | [1] | ELBOW UNION | KOBUnion Elbow Superseded by part number: 2444R620 |
| 19. | 2427P1858 | [1] | PIPE | KOB |
| 20. | 2444R985 | [1] | FLEXIBLE HOSE | KOB |
| 22. | 2444Z2347 | [1] | FLEXIBLE HOSE | KOB |
| 23. | 2450R163F1 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 24. | 2418T17431 | [1] | PIPE | KOB |
| 25. | ZC15X09000 | [1] | CLAMP | KOBBAND |
| 26. | ZC15X10500 | [7] | CLIP | KOBBAND |
| 27. | 2432Z162D5 | [2] | BAND | BAND |
| 34. | 2444Z1293D10 | [1] | LUBE NIPPLE | KOBNipple, Hose -- 3/8" PTx46mm Long |
| 35. | 2418P18514 | [1] | PIPE | KOB |
| 36. | NSS | [1] | NOT SOLD SEPARAT | CONREDIATOR ASSY SEE FIGURE 023 |
| 37. | 2416P8564 | [1] | BRACKET | KOB |
| 38. | 2416P5584D2 | [1] | BRACKET | KOB |
| 39. | 2416P5584D1 | [1] | BRACKET | KOB |
| 40. | 2414T1512 | [8] | COVER | KOB |
| 41. | 2416R145D2 | [4] | RUBBER SLEEVE | KOB |
| 42. | 2416R145D1 | [4] | RUBBER MOUNTING | KOB |
| 43. | 2416T13493 | [1] | STAY | STAY |
| 45. | NSS | [1] | NOT SOLD SEPARAT | CONPUMP ASSY,CONNECT SEE FIGURE 021 |
| 46. | 4018Z1D8 | [1] | TUBE | KOB |
| 47. | 4018Z1D7 | [2] | HOSE | KOB |
| 48. | 2420Z795D3 | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 49. | 2418Z560D2 | [1] | HOSE | |
| 50. | 2420Z912D8 | [1] | HOSE | KOB |
| 51. | ZC15X01000 | [10] | CLIP | KOB |
| 56. | ZS13C10025 | [14] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 57. | ZS13F10020 | [4] | SCREW | KOB Superseded by part number: ZS18F10020 |
| 58. | ZS13C10030 | [10] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 60. | ZW11X08000 | [2] | WASHER | KOBID 09 x OD 17 x Th 1.6mm Superseded by part number: ZW16X08000 |
| 61. | ZS13C08030 | [7] | SCREW | KOBM08x1.25x30mm Superseded by part number: ZS18C08030 |
| 62. | ZS18C08022 | [1] | SCREW,Hex, M8 x 22mm | KOBM08x1.25x22mm |
| 63. | ZS13C12030 | [3] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 64. | ZS13C18120 | [4] | CAPSCREW M18x2.0x120mm | CAPSCREW M18x2.0x120mm |
| 65. | ZN13C08007 | [5] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 66. | ZN13C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 67. | 2418T17674 | [1] | PLATE | |
| 68. | ZN13C18015 | [4] | NUT | KOBM18x2.5mm |
| 70. | ZS13C12025 | [5] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 71. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 72. | R16T0152D13 | [8] | WASHER | KOBFlat -- ID 19 x OD 40 x Th 4.5mm |
| 73. | ZW22X08000 | [5] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 74. | ZW22X10000 | [30] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 75. | ZW22X16000 | [8] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 76. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 78. | ZS18C10025 | [9] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 79. | 2432Z290 | [6] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 80. | ZW13H12000 | [4] | WASHER | KOB |
| 81. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER ASSY SEE FIGURE 025 |
| 83. | 4018Z1D3 | [1] | HOSE | KOB |
| 84. | 2418P18105 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 86. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 87. | 2418T12345 | [1] | WASHER | KOBID 13 x OD 30 x Th 3.2mm |
| 88. | 2418T17430 | [1] | RIGID TUBE | KOB |
| 89. | 2416P13246 | [1] | BRACKET | KOB |
| 91. | 2416Z522D2 | [1] | INSULATOR | KOB |
| 93. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 94. | 2444Z1411D2 | [1] | HUB | KOB |
| 96. | ZN18C10008 | [4] | NUT | KOBM10x1.50mm |
| 97. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| 98. | 2416T21428 | [1] | BRACKET | |
| 99. | ZC47X16011 | [3] | CLIP | KOB |
| 100. | 2416P8742 | [1] | BRACKET | |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
| 102. | 2432T2492 | [1] | CLAMP | KOB Superseded by part number: LQ12P01003P1 |
| 103. | ZS18C12035 | [1] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 104. | 2418Z737D1 | [1] | TUBE | KOB |
| 105. | ZC15X01500 | [1] | CLIP | KOB |
| 106. | 2416T22S22 | [1] | | |
