神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (05-010) - GAUGE, CLUSTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
846 次

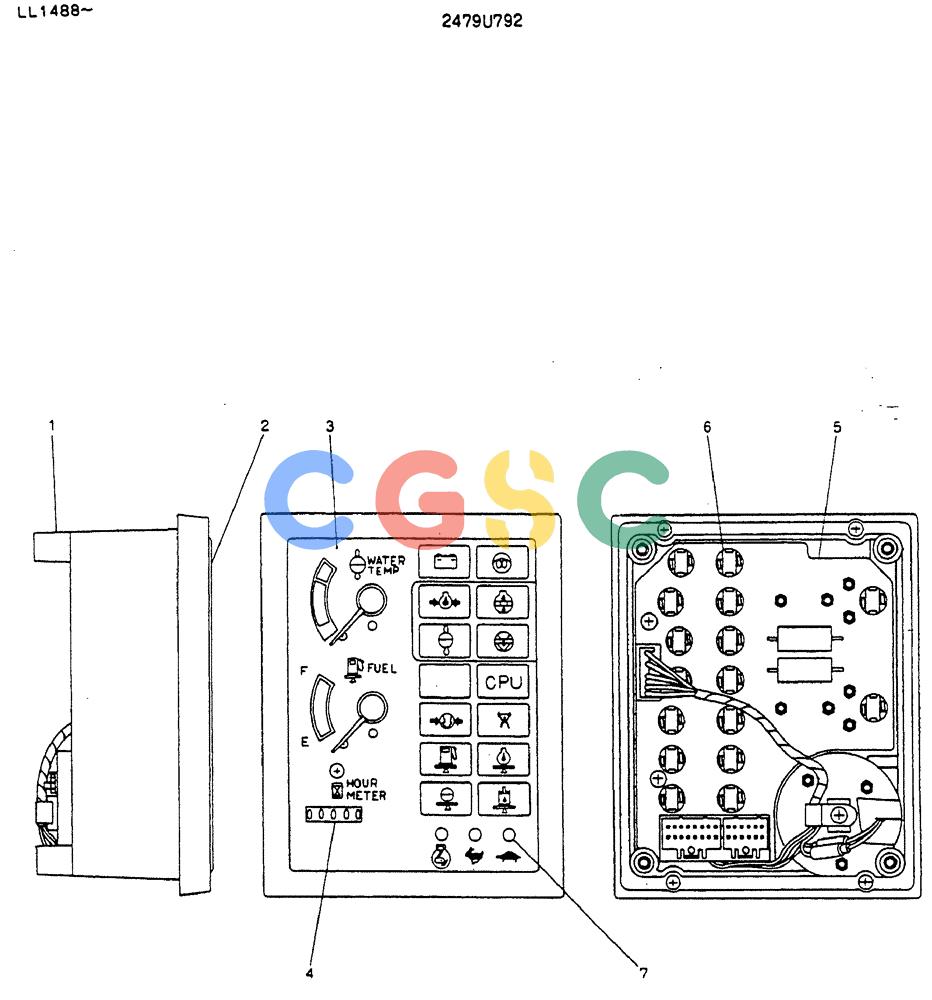

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2479U792 | [1] | GAUGE | KOB |
| 1. | 2479U732S1 | [1] | HOUSING | HOUSING |
| 2. | 2479U732S2 | [1] | COVER | KOBFRONT |
| 3. | 2479U732S3 | [1] | INDICATOR | KOB |
| 4. | 2479U732S4 | [1] | DIPSTICK | KOB |
| 5. | 2479U732S5 | [1] | REPAIR KIT | KOB Superseded by part number: 2479U732R100 |
| 6. | 2479U732S6 | [16] | BULB | KOB Superseded by part number: LC59S00001S013 |
| 7. | 2479U732S7 | [1] | REPAIR KIT | KOB Superseded by part number: 2479U732R100 |
