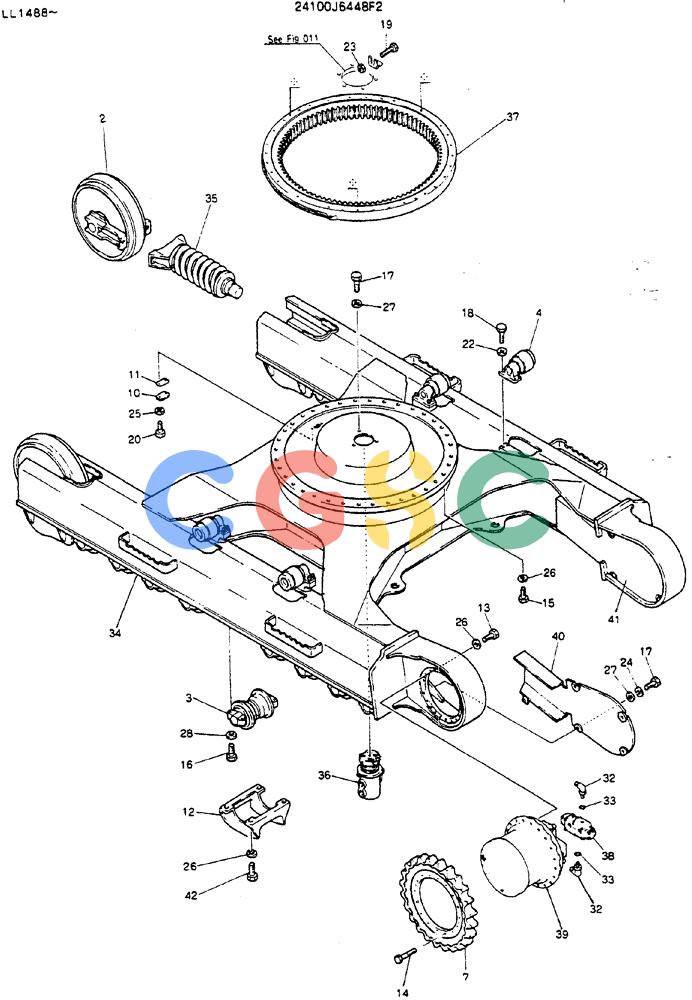

神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (06-001) - INSTAL, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6448F2 | [1] | INSTAL.L0W | |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONIDLER ASSY SEE FIGURE 034 |
| 3. | NSS | [18] | NOT SOLD SEPARAT | CONROLLER ASSY (LOWER) SEE FIGURE 035 |
| 4. | NSS | [4] | NOT SOLD SEPARAT | CONROLLER ASSY (UPPER) SEE FIGURE 036 |
| 7. | 2404N252 | [2] | DRIVING SPROCKET | KOB |
| 10. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| 11. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| 12. | 2422N869 | [2] | GUIDE, TRUCK, CRAWL. | GUIDE, TRUCK, CRAWL. |
| 13. | ZS13C20065 | [38] | SCREW | KOBM20x2.50x65mm |
| 14. | ZS13C20055 | [40] | SCREW | KOBScrew -- M20x2.50x55mm |
| 15. | ZS13F20075 | [36] | SCREW | KOBM20x1.50x75mm |
| 16. | ZS13F18080 | [72] | SCREW | KOB |
| 17. | ZS13C12025 | [13] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 18. | ZS13C16050 | [16] | SCREW | KOBM16x2.0x50mm |
| 19. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm |
| 20. | ZS13C10014 | [2] | SCREW | KOBM10x1.50x14mm Superseded by part number: ZS18C10014 |
| 22. | ZW13H16000 | [16] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 23. | ZN13C16013 | [1] | NUT | KOBM16x2.0mm |
| 24. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 25. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 26. | ZW13H20000 | [82] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 27. | ZW11X12000 | [13] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 28. | 2418T17441D2 | [72] | WASHER | KOB |
| 32. | ZA33F28016 | [4] | ELBOW | KOB |
| 33. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 34. | 2422J1861 | [1] | FRAME,LOW | |
| 35. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING ASSY,TRACK SEE FIGURE 037 |
| 36. | 24100J5144F4 | [1] | FLEXIBLE JOINT | KOB Superseded by part number: 24100U1524F1 |
| 37. | NSS | [1] | NOT SOLD SEPARAT | CONBEARING ASSY SEE FIGURE 039 |
| 38. | 2436U1233F1 | [2] | BRAKE VALVE | KOB |
| 39. | NSS | [2] | NOT SOLD SEPARAT | CONREDUCTION UNIT SEE FIGURE 038 |
| 40. | 2414N3943D1 | [1] | COVER | COVER |
| 41. | 2414N3943D2 | [1] | COVER | COVER |
| 42. | ZS13F20060 | [8] | SCREW | KOBM20x1.50x60mm |
