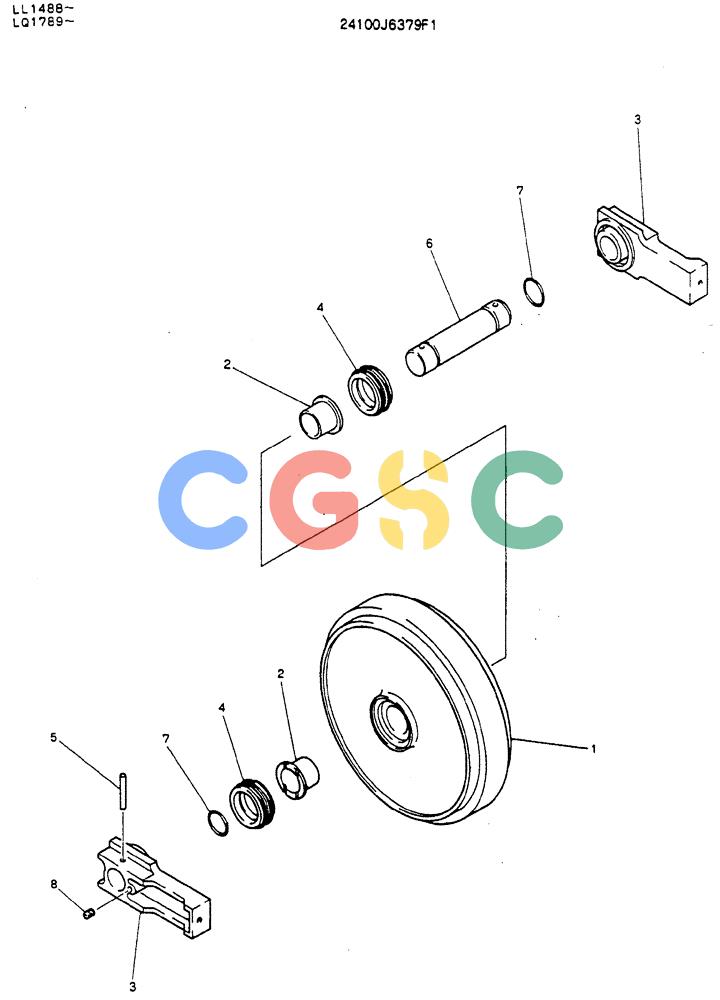

神钢零件查询(MD240BLC) - EXCAVATOR ASN LL1488 (1/80-12/06) (06-002) - IDLER, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
124 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6379F1 | [1] | IDLER WHEEL | KOB |
| 1. | 2413N393 | [1] | IDLER | KOB |
| 2. | 2405P482 | [2] | BUSHING | KOBID 75.2 x OD 83 x 69.5mm Long |
| 3. | 2413N394 | [2] | SLIDE VALVE | KOB |
| 4. | R45P0018D13 | [2] | SEAL | KOB Superseded by part number: ZD57F11032 |
| 5. | 2419T2668D2 | [2] | PIN | KOB Superseded by part number: 2419T6351 |
| 6. | 2419P1669 | [1] | ROLLER SHAFT | KOB |
| 7. | ZD11G07000 | [2] | O-RING,69.40mm ID x 75.60mm OD x 3.10mm | KOBID 69.40 ± 0.61 x OD 75mm |
| 8. | ZE82T02000 | [2] | PLUG | KOBPipe, 1.25" PT |
