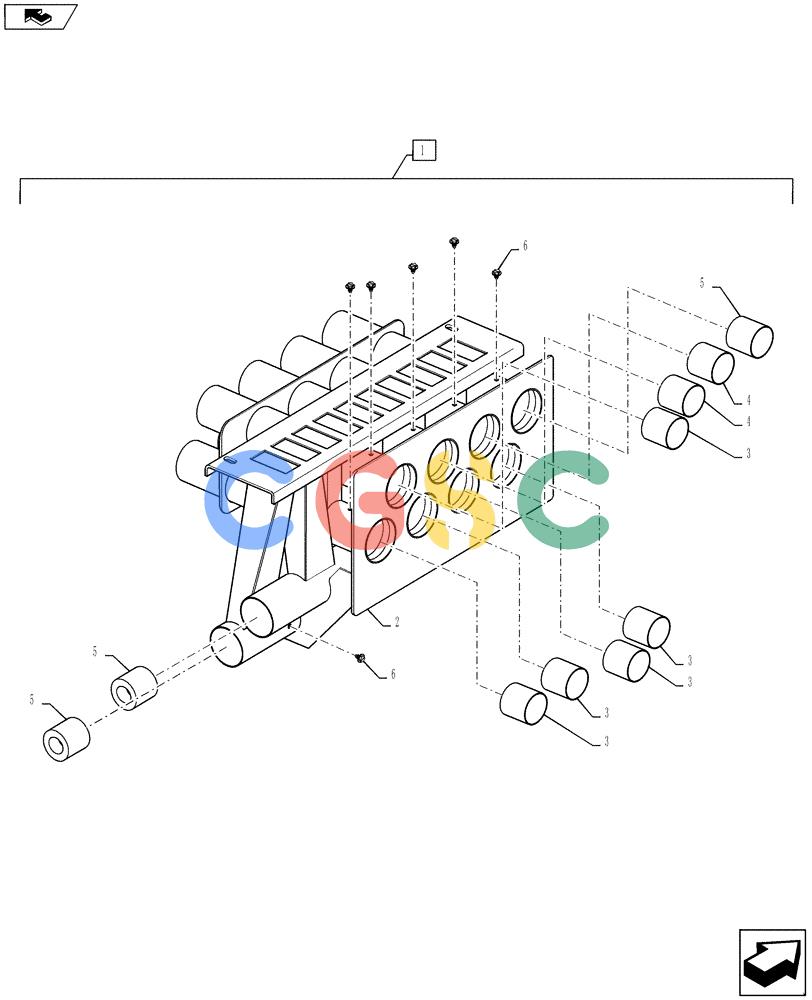

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (39.130.28) - VENTURI GROUP, LH, 3" TUBES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN303284
|
[1] |
VENTURI
|
BN
Complete, LH, 3" Boom Tubes, 3" Rear Tubes, Includes Ref 2 - 6
|
| 2. |
BN300819
|
[1] |
VENTURI
|
BN
LH, 3" Tubes
|
| 3. |
BN303564
|
[5] |
VENTURI
|
BN
3" OD x 1.2" ID, Green
|
| 4. |
BN303565
|
[2] |
VENTURI
|
BN
3" OD x 1.3" ID, Yellow
|
| 5. |
BN303566
|
[3] |
VENTURI
|
BN
3" OD x 1.4" ID, Brown
|
| 6. |
BN55388
|
[10] |
SCREW,#10 x 3/8", SST
|
BN
#10 X 3/8, Stainless Steel, Type A
|
