| 1. |
84573692
|
[1] |
WIRE HARNESS
|
BN

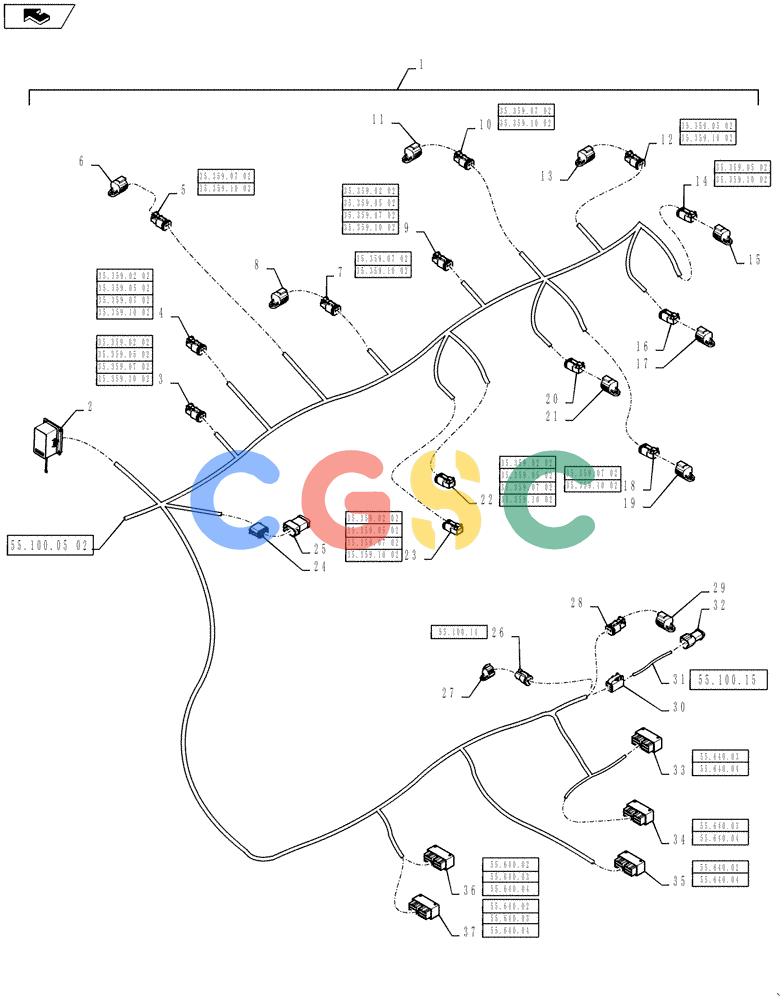

Product, Used With Viper Pro Controller Option, 810, Includes Ref 2 - 37 And All Parts On Fig 55.100.05(01) and 55.100.05(02)
|
| 2. |
87312843
|
[1] |
FUSE BOX
|
FAR
Fuse and Relay, X-507F2
|
| 2. |
87655334
|
[5] |
RELAY,12V, 35A, Micro
|
WIC
Fuse and Relay, X-507F2
|
| 2. |
121410A1
|
[4] |
FUSE,5A, Mini, Tan
|
CAS
Fuse and Relay, X-507F2 Superseded by part number: 10395890
|
| 2. |
121414A1
|
[4] |
FUSE,20A, Mini, Yellow
|
CAS
Fuse and Relay, X-507F2 Superseded by part number: 10401190
|
| 2. |
87686742
|
[14] |
PLUG
|
MKT
Fuse and Relay, X-507F2
|
| 2. |
87704966
|
[20] |
TERMINAL
|
ZED
Fuse and Relay, X-507F2
|
| 2. |
87693249
|
[11] |
ELEC. TERMINAL PIN
|
BN
Fuse and Relay, X-507F2
|
| 2. |
84392736
|
[5] |
TERMINAL CONNECTOR
|
BN
Fuse and Relay, X-507F2
|
| 3. |
87695582
|
[1] |
ELEC CONNECTOR,Female, 2 Pole
|
RAC
Auger Enable, X-509F2
|
| 3. |
87695649
|
[1] |
ELEC CONNECTOR,Locking, Green
|
BAS
Auger Enable, X-509F2 Superseded by part number: 84074638
|
| 3. |
87695921
|
[2] |
CONTACT,Female, Nickel, 0.50 - 1.00mm
|
COE
Auger Enable, X-509F2
|
| 6. |
84391159
|
[1] |
CAP
|
BN
Cap For LH Supplemental Auger, X-529M2
|
| 24. |
87695592
|
[1] |
CONTACT HOUSING,Female, 12 Pole
|
BN
Splice, X-557F2
|
| 24. |
87695651
|
[1] |
LOCKING TAB,Wedge Lock
|
BN
Splice, X-557F2
|
| 24. |
86500036
|
[1] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
Splice, X-557F2
|
| 25. |
87269436
|
[1] |
SOCKET/RECEPTACLE
|
BN
12 Way Splice Pack, SP-557M2
|
| 25. |
87698541
|
[1] |
LOCKING TAB,Wedge Lock, 12-Pin
|
ZED
12 Way Splice Pack, SP-557M2
|
| 26. |
87695580
|
[1] |
ELEC CONNECTOR,Female, 3 Pole
|
BN
Wet Kit Harness Power, X-550F2
|
| 26. |
84074639
|
[1] |
LOCKING TAB,Wedge Lock
|
ZED
Wet Kit Harness Power, X-550F2 Superseded by part number: 89842513
|
| 27. |
84391165
|
[1] |
HOUSING,Receptacle
|
BN
Cap For Wet Kit Harness Power, X-550M2
|
| 30. |
87694153
|
[1] |
CONTACT HOUSING,Female, 4 Cavities
|
NH
Can Buss, X-210F2
|
| 30. |
87694146
|
[1] |
ELEC CONNECTOR,Locking, Green
|
NH
Can Buss, X-210F2 Superseded by part number: 84074640
|
| 30. |
225365C1
|
[4] |
SOCKET
|
IH
Can Buss, X-210F2
|
| 31. |
87267294
|
[1] |
WIRE HARNESS
|
BN
Active Terminator Adaptor Harness, H210M
|
| 32. |
84058092
|
[1] |
CONTACT HOUSING,120 Ohm Resistor
|
ZED
120Amp Active Terminator, 210T
|
| 32. |
87695625
|
[1] |
WIRE CONNECTOR,Locking, Green
|
BN
120Amp Active Terminator, 210T
|
| 33. |
84138326
|
[1] |
ELEC CONNECTOR
|
SAS
Supplemental Bin Control, X-556F2 Superseded by part number: 87268798
|
| 33. |
87270686
|
[8] |
TERMINAL
|
BN
Supplemental Bin Control, X-556F2
|
| 33. |
84142712
|
[22] |
PLUG
|
BN
Supplemental Bin Control, X-556F2
|
| 34. |
87268797
|
[1] |
MULTIPOLE CONNECTOR,Female, 30 Pole
|
BN
Supplemental Bin Control, X-553F2
|
| 34. |
87270687
|
[5] |
ELEC. TERMINAL PIN,Female, 0.75 - 1.5 mm2
|
BN
Supplemental Bin Control, X-553F2
|
