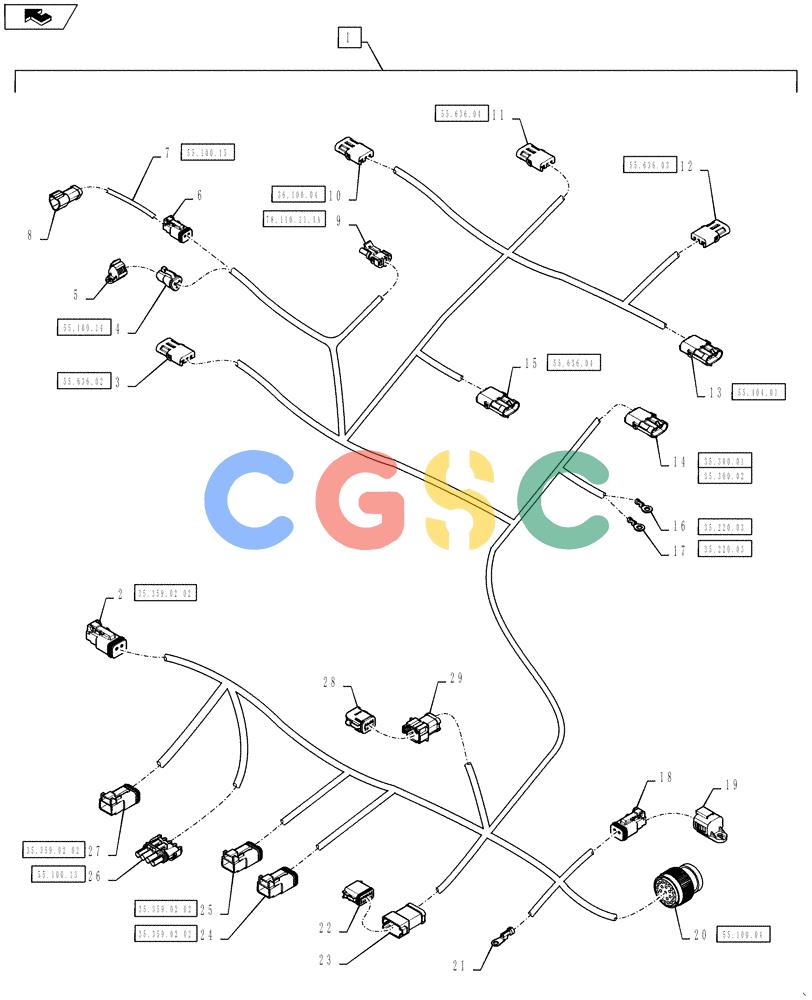

| 1. |
84195993
|
[1] |
WIRE HARNESS
|
BN
Product, Used With SCS5000 Controller Option, 810, Includes Ref 2 - 29
|
| 2. |
87695582
|
[1] |
ELEC CONNECTOR,Female, 2 Pole
|
RAC
RH Conveyor Motor, X-502F3
|
| 2. |
87695649
|
[1] |
ELEC CONNECTOR,Locking, Green
|
BAS
RH Conveyor Motor, X-502F3 Superseded by part number: 84074638
|
| 2. |
87695921
|
[2] |
CONTACT,Female, Nickel, 0.50 - 1.00mm
|
COE
RH Conveyor Motor, X-502F3
|
| 3. |
87692858
|
[1] |
ELEC CONNECTOR,Male
|
BN
Main Bin Level Sensor, X-501M3
|
| 3. |
225120C1
|
[3] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
Main Bin Level Sensor, X-501M3
|
| 4. |
87695580
|
[1] |
ELEC CONNECTOR,Female, 3 Pole
|
BN
Wet Kit Harness Power, X-550F3
|
| 4. |
84074639
|
[1] |
LOCKING TAB,Wedge Lock
|
ZED
Wet Kit Harness Power, X-550F3 Superseded by part number: 89842513
|
| 5. |
84391165
|
[1] |
HOUSING,Receptacle
|
BN
Cap For Wet Kit Harness Power, X-550M3
|
| 6. |
87694153
|
[1] |
CONTACT HOUSING,Female, 4 Cavities
|
NH
Can Buss, X-210F3
|
| 6. |
87694146
|
[1] |
ELEC CONNECTOR,Locking, Green
|
NH
Can Buss, X-210F3 Superseded by part number: 84074640
|
| 6. |
225365C1
|
[4] |
SOCKET
|
IH
Can Buss, X-210F3
|
| 7. |
87267294
|
[1] |
WIRE HARNESS
|
BN
Active Terminator Adaptor Harness, H210M
|
| 8. |
84058092
|
[1] |
CONTACT HOUSING,120 Ohm Resistor
|
ZED
120Amp Active Terminator, 210T
|
| 8. |
87695625
|
[1] |
WIRE CONNECTOR,Locking, Green
|
BN
120Amp Active Terminator, 210T
|
| 9. |
87692855
|
[1] |
CONTACT HOUSING,Male, 2 Cavities
|
BN
Sparge, X-511F3
|
| 9. |
225123C1
|
[2] |
TERMINAL CONNECTOR,Tin, 0.8mm
|
IH
Sparge, X-511F3
|
| 13. |
87692877
|
[1] |
MULTIPOLE CONNECTOR,Male, 2 Cavities
|
BN
Bin Light, X-513M3
|
| 16. |
84127304
|
[1] |
TERMINAL
|
BN
Fan On/Off, X-516F3
|
| 19. |
84391159
|
[1] |
CAP
|
BN
Cap For Control Interface, X-500M3
|
| 20. |
380841A1
|
[1] |
TERMINAL CONNECTOR
|
CAS
Cab Harness Interface, XB-5F3
|
| 20. |
84807680
|
[8] |
LOCKING TAB
|
ZED
Cab Harness Interface, XB-5F3 Superseded by part number: 225055C1
|
| 20. |
225039C1
|
[20] |
TERMINAL
|
IH
Cab Harness Interface, XB-5F3 Superseded by part number: 87697866
|
| 20. |
225241C1
|
[2] |
SOCKET
|
CAS
Cab Harness Interface, XB-5F3 Superseded by part number: 87695618
|
| 20. |
223953A1
|
[2] |
SOCKET/RECEPTACLE
|
CAS
Cab Harness Interface, XB-5F3
|
| 21. |
84140737
|
[1] |
TERMINAL CONNECTOR
|
BN
Power Interface, G1-PF3
|
| 21. |
84148916
|
[1] |
LOCKING TAB
|
LEC
KEY, LOCK Power Interface, G1-PF3
|
| 22. |
87695592
|
[1] |
CONTACT HOUSING,Female, 12 Pole
|
BN
Clean Ground Splice, X-523F3
|
| 22. |
87695651
|
[1] |
LOCKING TAB,Wedge Lock
|
BN
Clean Ground Splice, X-523F3
|
| 22. |
84068583
|
[1] |
PLUG,12 - 16 Ga, White
|
ZED
Clean Ground Splice, X-523F3 Superseded by part number: 87695652
|
| 23. |
87381540
|
[1] |
ELEC CONNECTOR
|
BN
2 x 6 Way Splice Pack, SP-523M3
|
| 23. |
87698541
|
[1] |
LOCKING TAB,Wedge Lock, 12-Pin
|
ZED
2 x 6 Way Splice Pack, SP-523M3
|
| 26. |
245486C1
|
[1] |
ELEC CONNECTOR,4 Pin
|
IH
Remote Control Module, X-517F3 Superseded by part number: 87692817
|
| 26. |
225122C1
|
[4] |
TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm
|
IH
Remote Control Module, X-517F3
|
| 28. |
87708152
|
[1] |
ELEC CONNECTOR
|
MKT
Ground Splice, X-557F3
|
| 28. |
225321C1
|
[1] |
WEDGE
|
CAS
CONNECTOR Ground Splice, X-557F3 Superseded by part number: 84806312
|
| 28. |
86500036
|
[1] |
TERMINAL,Female, Nickel, 0.75 - 2mm
|
PA
Ground Splice, X-557F3
|
| 29. |
87270259
|
[1] |
ELEC CONNECTOR
|
BN
12 Way Splice Pack, SP-557M3
|
