神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-049) - FUEL INJECTION PUMP DRIVE - 090-100A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
244 次

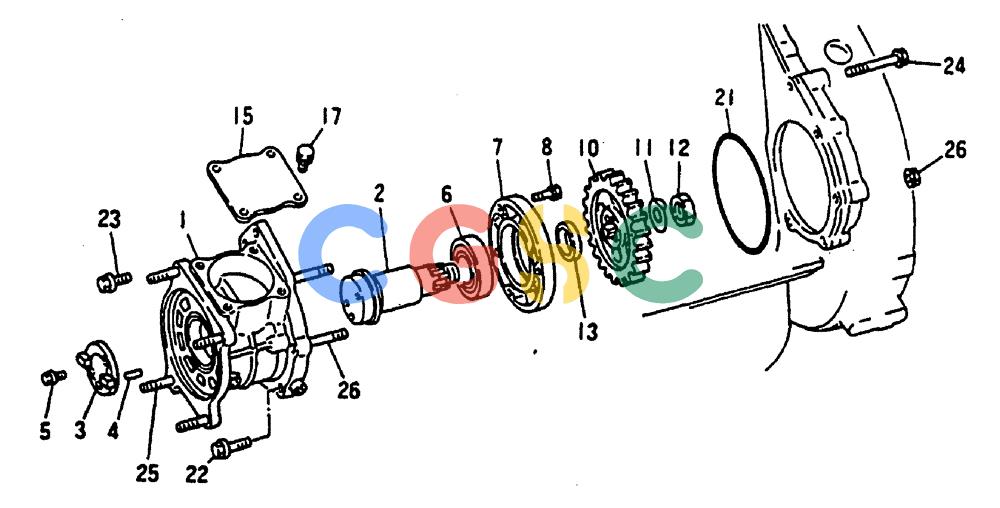

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME075052 | [1] | CASE | KOBPUMP, SANHA |
| 1. | VAME713278 | [1] | CASE | KOB |
| 2. | VAME713279 | [1] | SHAFT | |
| 3. | VAME713245 | [1] | COUPLING | |
| 4. | VAME713138 | [1] | PIN | PIN |
| 5. | VAME713139 | [2] | BOLT | KOB |
| 6. | VAME713211 | [1] | INJECTION PUMP DRIVE | KOBBEARING |
| 7. | VAME713253 | [1] | HOLDER, BRG | |
| 8. | VAME713293 | [3] | BOLT | |
| . . | VAMF450405 | [3] | WASHER | KOBWASHER, SPG 8 Superseded by part number: 132502A1 |
| 10. | VAME038015 | [1] | GEAR DRIVE | GEAR DRIVE |
| 11. | VAME713246 | [1] | LOCK WASHER | KOBWASHER, LOCK |
| 12. | VAME713247 | [1] | NUT | |
| I3. | VAME713248 | [1] | COLLAR | |
| I5. | VAME713289 | [1] | COVER | |
| 17. | VAME713297 | [4] | BOLT | |
| 21. | VAMF520423 | [1] | O-RING | KOBO-RING 135 Superseded by part number: VAF315313500 |
| . . | VAMH000711 | [2] | SCREW | KOBBOLT, FLANGE 10X40 Superseded by part number: 135146A1 |
| 23. | VAMH000714 | [1] | BOLT | KOBBOLT, FLANGE 10X25 |
| 24. | VAMH000723 | [1] | BOLT | KOBBOLT, FLANGE 10X70 |
| 25. | VAMH002131 | [4] | STUD | KOBSTUD Superseded by part number: 132296A1 |
| 26. | VAMF406296 | [2] | BOLT | KOBSTUD 10X60 |
| . . | VAMF434105 | [2] | NUT | KOBNUT, FLANGE 10 |
