神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-054) - CYLINDER BLOCK REPAIR KIT - 450-800A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
248 次

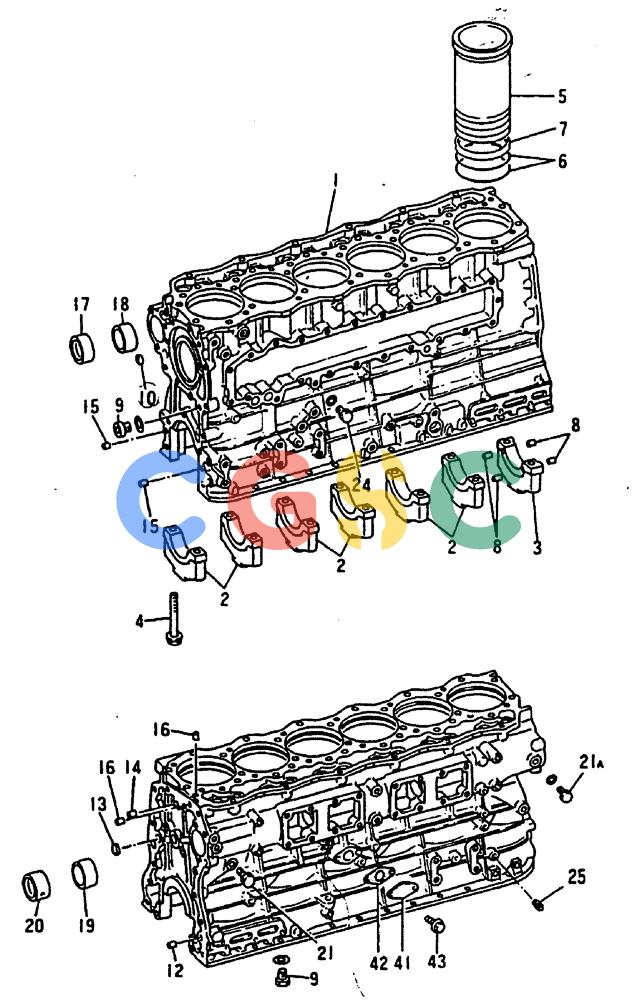

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-43. | VAME997395 | [1] | CRANKCASE ASSY 6D15T | |
| 1. | VAME071431 | [1] | CRANKCASE | |
| 2. | VAME031914 | [6] | CAP BRG FR & MI | CAP BRG FR & MI |
| 3. | VAME031915 | [1] | CAP, BRG RE | |
| 4. | VAME031865 | [14] | SCREW | KOB14X108 |
| 5. | VAME047574 | [6] | LINER, ENGINE CYLIND | KOBCYL |
| 6. | VAME031610 | [12] | O-RING | KOB |
| 7. | VAME071066 | [6] | PACKING | KOB |
| 8. | VAMH012041 | [6] | PIN | KOBPIN, SPG 4X10 |
| 9. | VAMH037137 | [2] | PLUG | KOBPLUG 20 |
| . . | VAMF660068 | [2] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 10. | VAMH037760 | [1] | CAP COVER | KOBCAP, SEALING 15 Superseded by part number: 132367A1 |
| 12. | VAMH007011 | [1] | PIN | KOBPIN, DOWEL 12X34 Superseded by part number: 132324A1 |
| 13. | VAMF665535 | [1] | CAP | KOBCAP, SEALING 18 |
| 14. | VAMH007010 | [1] | PIN | KOBPIN, DOWEL 12X17 |
| I5. | VAMF472404 | [2] | DOWEL | KOBPIN, DOWEL 8X18 Superseded by part number: MF472404 |
| 16. | VAMH037082 | [2] | PLUG PLUG 6.5X8 | PLUG PLUG 6.5X8 |
| 17. | VAME071141 | [1] | BUSHING | KOB1 |
| 18. | VAME071142 | [1] | BUSHING | KOB2 |
| 19. | VAME071143 | [1] | BUSHING | KOB3 |
| 20. | VAME071144 | [1] | BUSHING | KOB4 Superseded by part number: VAME071862 |
| 21. | VAME031088 | [1] | PLUG | KOB10 |
| . . | VAMF660063 | [1] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 21A. | VAME031088 | [1] | PLUG | KOB10 |
| 24. | VAME031088 | [1] | PLUG | KOB |
| 25. | VAMS666222 | [1] | PLUG | SMPLUG, TAPER PT3/8 |
| 41. | VAME011599 | [1] | FLANGE | FLANGE |
| 42. | VAME013757 | [1] | GASKET | KOB Superseded by part number: VAME014532, 77268959, VAME013227 |
| 43. | VAMF140223 | [2] | BOLT | KOBBOLT, FLANGE 8X16 |
