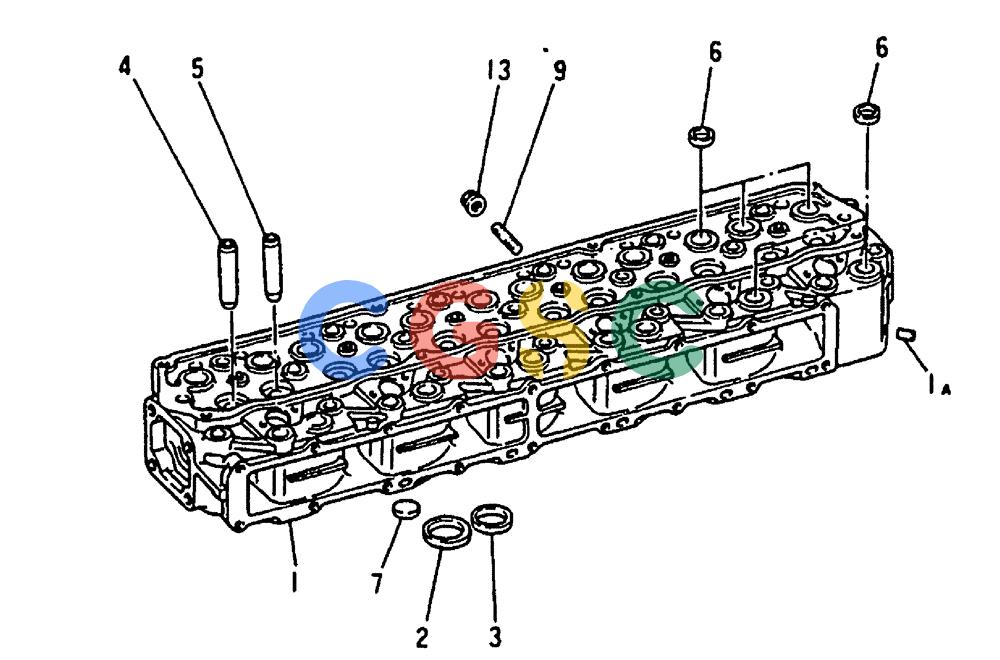

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-055) - CYLINDER HEAD REPAIR KIT - 450-810A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
675 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VAME997430 | [1] | CYLINDER HEAD | KOBCYLINDER 6D14T,15T |
| 1. | VAME047867 | [1] | HEAD, CYL | |
| 1A. | VAMH037762 | [6] | PLUG | KOBPLUG Superseded by part number: 132297A1 |
| 2. | VAME071301 | [6] | VALVE SEAT | KOBINSERT |
| 3. | VAME071303 | [6] | SEAT ACCESSORY | KOBINSERT |
| 4. | VAME031886 | [6] | GUIDE | KOBVALVE INLET |
| 5. | VAME031888 | [6] | GUIDE | KOBVALVE |
| 6. | VAMS666137 | [18] | CAP | KOBCAP, SEALING 25 |
| 7. | VAMS666136 | [5] | PLUG | KOBCAP, SEALING 22 |
| 9. | VAMH002174 | [12] | STUD | KOBEXHUST MANIFOLD M10x33mm Long |
| 13. | VAMH004054 | [12] | NUT | KOBFLANGE 10 Superseded by part number: 134868A1 |
