神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (17-056) - LINER & PISTON KIT - 450-880B Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
496 次

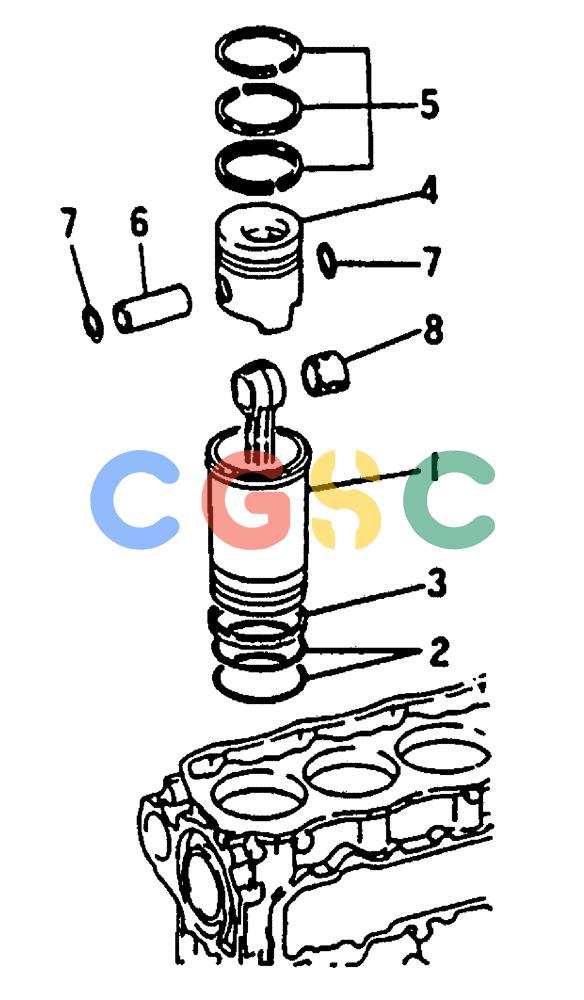

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-8. | VAME997463 | [3] | KIT, LINER, PISTON R | KOBPISTON, 2CYL 6D15T, Start Serial: 9004 |
| . . | VAME997226 | [3] | LINER KIT, Serial Range: -9003 | LINER KIT, Serial Range: -9003 |
| 1. | VAME047574 | [6] | LINER, ENGINE CYLIND | KOBCYL |
| 2. | VAME031610 | [12] | O-RING | KOB |
| 3. | VAME071066 | [6] | PACKING | KOB |
| 4. | VAME072057 | [6] | PISTON | KOBSTD |
| 5. | VAME997456 | [6] | PISTON RING SET, ICYL 6D15T, Start Serial: 9004 | |
| . . | VAME999929 | [6] | , Serial Range: -9003 | |
| 6. | VAME047021 | [6] | PIN | KOB |
| 7. | VAME032686 | [12] | SNAP RING | KOB |
| 8. | VAME072128 | [6] | BUSHING | KOBCONN-ROD |
