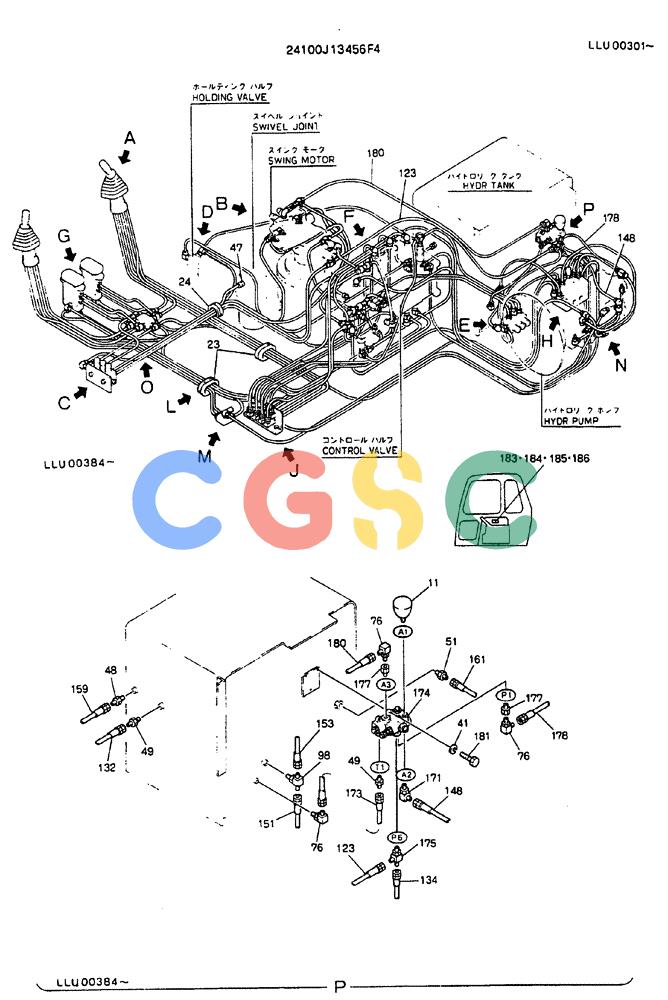

| . . | 24100J13456F4 | [1] | REMOTE-CONTROL ASSY | |
| 1. | 2436U2606F1 | [2] | PILOT VALVE | KOB |
| 2. | 2436U2642F1 | [1] | HYDRAULIC VALVE | KOB |
| 3. | 2436U2642F2 | [1] | HYDRAULIC VALVE | KOB |
| 4. | 2436U1453F2 | [1] | SOLENOID VALVE | KOB Superseded by part number: 2436U1453F4 |
| 5. | 2436U1453F1 | [1] | SOLENOID VALVE | KOB Superseded by part number: 2436U1453F3 |
| 6. | 2436U1444F1 | [1] | VALVE | KOB |
| 7. | 2436R906F1 | [1] | VALVE | KOB |
| 8. | 2410T323 | [1] | BLOCK | KOB |
| 9. | 2436R680F1 | [1] | VALVE PRESSURE RELIE | KOB, Serial Range: LLU00301-LLU00383 |
| 10. | 2446R151F1 | [1] | ELEMENT | KOBFILTER, LINE ASSY, Serial Range: LLU00301-LLU00383 Superseded by part number: 2446R183F1 |
| 10-1. | 2446R151S1 | [1] | HEAD | KOB |
| 10-2. | R36P0019 | [1] | HYDRAULIC OIL FILTER | KOBELEMENT |
| 10-3. | 45Z91D84 | [1] | O-RING | KOBID 56.74 ± 0.25 OD 63.80mm |
| 10-4. | 2446R151S4 | [1] | RING | KOBBACK-UP |
| 10-5. | 2446R151S5 | [1] | CASE | KOB |
| 11. | 2445R373F1 | [1] | ACCUMULATOR | KOB |
| 12. | 2436U1171D21 | [1] | CHECK VALVE | KOB |
| 13. | 2436U1171D31 | [1] | CHECK VALVE | KOB |
| 14. | 2436U1171D36 | [1] | CHECK VALVE | KOB, Serial Range: LLU00301-LLU00383 |
| 15. | 2436U1282D2108 | [1] | VALVE PRESSURE RELIE | KOB |
| 16. | 2479U1378 | [2] | PRESSURE SWITCH | KOB, Serial Range: LLU00301-LLU00383 Superseded by part number: 2479U2010 |
| . . | 2479U1378 | [3] | PRESSURE SWITCH | KOB, Start Serial: LLU00384 Superseded by part number: 2479U2010 |
| 17. | 2418T22461D1 | [1] | PLATE | KOBPLATE |
| 18. | 24100P2924 | [1] | BRACKET | KOB, Serial Range: LLU00301-LLU00383 |
| 19. | 2416T22061 | [1] | BRACKET, Serial Range: LLU00301-LLU00383 | BRACKET, Serial Range: LLU00301-LLU00383 |
| 20. | 2406R256F1 | [2] | HANDLE | KOB |
| 21. | 2414N4225 | [2] | BOOT | KOB |
| 22. | 2420T3483 | [2] | GROMMET | KOB |
| 23. | 2420Z1188 | [2] | GROMMET | KOB |
| 24. | 2420Z1287 | [1] | GROMMET | KOB |
| 25. | 2414Z199D025 | [5] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 26. | 2432Z290D6 | [15] | CLIP | KOBWire Ties -- 292mm Long Superseded by part number: PY01P01043D5 |
| 27. | 2432Z290 | [20] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 28. | ZS23C06030 | [8] | SCREW,Hex Socket Head, M6 x 30mm | KOBM06x1.0x30mm |
| 29. | ZS13C06060 | [1] | SCREW | KOBBOLT M06x1.0x60mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZS18C06060 |
| 30. | ZS13C08016 | [5] | SCREW | KOBM08x1.25x16mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZS18C08016 |
| . . | ZS13C08016 | [4] | SCREW | KOBM08x1.25x16mm, Start Serial: LLU00384 Superseded by part number: ZS18C08016 |
| 31. | ZS13C08040 | [4] | SCREW | KOBM08x1.25x40mm Superseded by part number: ZS18C08040 |
| 32. | ZS13C08055 | [1] | SCREW | KOBM08x1.25x55mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZS18C08055 |
| 33. | ZS13C10020 | [8] | SCREW | KOBM10x1.50x20mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZS18C10020 |
| . . | ZS13C10020 | [6] | SCREW | KOBM10x1.50x20mm, Start Serial: LLU00384 Superseded by part number: ZS18C10020 |
| 34. | ZS13C10030 | [4] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 35. | ZN13C14011 | [2] | NUT | KOBM14x2.0mm Superseded by part number: ZN18C14011 |
| 36. | ZW11K06000 | [8] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 37. | ZW11X08000 | [1] | WASHER | KOBID 09 x OD 17 x Th 1.6mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZW16X08000 |
| 38. | ZW22K06000 | [8] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 39. | ZW22X06000 | [1] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm LLU00301, Serial Range: -LLU00383 | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm LLU00301, Serial Range: -LLU00383 |
| 40. | ZW22X08000 | [10] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm, Serial Range: LLU00301-LLU00383 Superseded by part number: 83990583 |
| . . | ZW22X08000 | [8] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm, Start Serial: LLU00384 Superseded by part number: 83990583 |
| 41. | ZW22X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm, Serial Range: LLU00301-LLU00383 Superseded by part number: ZW26X10000 |
| . . | ZW22X10000 | [13] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm, Start Serial: LLU00384 Superseded by part number: ZW26X10000 |
| 42. | 2444R1111F3 | [1] | HYD CONNECTOR | KOB, Start Serial: LLU00384 |
| 42-1. | 2417T537 | [1] | SPRING | KOB |
| 42-2. | 2425Z551 | [1] | BALL | BALL |
| 42-4. | 2444Z3775 | [1] | TEE | KOB Superseded by part number: 2444Z3134 |
| 42-5. | 2444Z3787 | [1] | HYD CONNECTOR | KOB Superseded by part number: 2444Z2294 |
| 42-8. | 2444Z3820 | [1] | 90 ELBOW | KOB90° -- 1/4" PT (Incls. O-Ring ZD12P01100) |
| 43. | 2444Z2477F1 | [1] | HYD CONNECTOR | KOB(WITH FILTER) |
| 44. | 2444Z2477F6 | [1] | HYD CONNECTOR | KOB(WITH FILTER) |
| 45. | 2444Z2546F1 | [2] | HYD CONNECTOR | KOB(WITH FILTER), Serial Range: LLU00301-LLU00449 |
| 46. | ZA23F10004 | [2] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 47. | ZH22X04000 | [19] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100), Serial Range: LLU00301-LLU00449 |
| . . | ZH22X04000 | [15] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100), Start Serial: LLU00450 |
| 48. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| 49. | ZH22X06000 | [3] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400), Serial Range: LLU00301-LLU00383 |
| . . | ZH22X06000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400), Start Serial: LLU00384 |
| 50. | ZH22X06008 | [1] | HYD CONNECTOR | KOB3/8"PFx1/2"PFx42.5mm Long (Incls. O-Ring ZD12P02400), Serial Range: LLU00301-LLU00383 |
| 51. | ZH22X08000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 52. | ZH22X12000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 53. | 2444Z3185 | [4] | ELBOW | KOB |
| 54. | 2444Z2505 | [1] | CONNECTOR | |
| 55. | 2444Z2335 | [3] | CONNECTION | KOB |
| 56. | 2444Z2337 | [13] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01100) |
| 57. | 2444Z2489 | [1] | HYD CONNECTOR | KOB, Serial Range: LLU00301-LLU00383 |
| 58. | 2444Z2525 | [4] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100), Serial Range: LLU00301-LLU00425 Superseded by part number: 72217408 |
| . . | 2444Z2525 | [6] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100), Serial Range: LLU00426-LLU00449 Superseded by part number: 72217408 |
| 59. | 2444Z2535 | [1] | HYD CONNECTOR | KOB |
| 60. | 2444Z3148 | [1] | HYD CONNECTOR | KOB, Serial Range: LLU00301-LLU00383 |
| 61. | 2444Z3163 | [2] | HYD CONNECTOR | KOBCONNECTOR Superseded by part number: 2444Z3178D2 |
| 63. | 2444Z3179D6 | [1] | HYD CONNECTOR | KOB |
| 64. | 2444Z3280 | [1] | HYD CONNECTOR | KOB |
| 65. | 2444Z3322D3 | [1] | HYD CONNECTOR | KOB1/8"PF x 1/8"PT x 25mm Long (Incls. O-Ring) |
| 66. | 2444Z3619 | [1] | HYD CONNECTOR | KOB |
| 67. | 2444Z3758 | [1] | HYD CONNECTOR | KOB |
| 68. | 2444Z3759 | [1] | HYD CONNECTOR | KOB |
| 69. | 2444Z3800 | [1] | HYD CONNECTOR | KOB, Serial Range: LLU00301-LLU00383 |
| 70. | 2444Z3819 | [1] | HYD CONNECTOR | KOB |
| 71. | 2444T2524 | [1] | HYD CONNECTOR | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 72. | 2444Z2447F1 | [2] | ELBOW UNION | KOBUnion Elbow |
| 73. | 2444Z2447F2 | [1] | 90 ELBOW | KOB(WITH FILTER) |
| 74. | 2444Z3817F1 | [1] | ELBOW UNION | KOBUnion Elbow (WITH FILTER) |
| 75. | ZH32X04000 | [17] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 76. | ZH32X06000 | [8] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, Serial Range: LLU00301-LLU00383 |
| . . | ZH32X06000 | [11] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006, Start Serial: LLU00384 |
| 77. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
| 78. | ZH42X04000 | [2] | 45 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| 79. | 2444Z2338 | [9] | 90 ELBOW | KOB90° -- (1/4" PFx3/8" PF), (Incls. O-Ring ZD12P01100) |
| 80. | 2444Z2345 | [1] | 90 ELBOW | KOB90° -- (Incls. O-Rings ZD12P01400 & ZD12P01800) |
| 81. | 2444Z3279 | [1] | 90 ELBOW | KOB90° -- 3/8"PF-3/8"PFx32mm Long (Incls. O-Ring ZD12P01400), Serial Range: LLU00301-LLU00383 |
| 82. | 2444Z3281 | [1] | ELBOW | KOB |
| 83. | 2444Z3766 | [1] | ELBOW | KOB |
| 84. | 2444Z3801 | [1] | ELBOW | KOB, Serial Range: LLU00301-LLU00383 |
| 86. | 2444Z2522F1 | [1] | TEE | KOB |
| 87. | ZH52X04000 | [3] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB1/4" PF (Incls. O-Ring 237-6004) |
| 88. | ZH52X06000 | [3] | TEE,30 Degree Fl, Male, PF 3/8" x 3/8" x 3/8", O-Ring | KOB3/8"PFx54mm Long (Incls. O-Ring ZD12P01400) |
| 89. | 2444T2529 | [2] | TEE | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| 90. | 2444T2580 | [1] | TEE | KOB3/8" PF x 61mm Long (No O-Ring supplied), Serial Range: LLU00301-LLU00383 |
| 91. | 2444T2592 | [2] | TEE | KOB3/8" PF - 1/4" PF (No O-Ring supplied), Serial Range: LLU00301-LLU00383 |
| . . | 2444T2592 | [1] | TEE | KOB3/8" PF - 1/4" PF (No O-Ring supplied), Start Serial: LLU00384 |
| 92. | 2444T2666 | [1] | TEE | KOB |
| 93. | 2444Z3903 | [1] | ELBOW | KOB |
| 94. | 2444T3298 | [1] | TEE | KOB3/8" PF - 1/4" PF (Incls. O-Ring ZD12P01100) |
| 95. | 2444T3309 | [2] | TEE | KOB(2) 3/8" PF x 1/4" PF x 60mm Long (Incls. O-Ring ZD12P01100) |
| 96. | 2444T3402 | [1] | TEE | KOBTee -- (Incls. O-Ring 237-6004) Superseded by part number: HH55V06006G3 |
| 97. | 2444Z2336 | [4] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| 98. | 2444Z2457 | [1] | TEE | KOB |
| 99. | 2444Z2526 | [1] | TEE | KOB |
| 100. | 2444Z2544 | [1] | TEE | KOB1/4"PTx60mm Long (No O-Ring supplied) |
| 101. | 2444Z2892 | [2] | TEE | KOB(Incls. O-Ring ZD12P01400), Serial Range: LLU00301-LLU00383 |
| . . | 2444Z2892 | [1] | TEE | KOB(Incls. O-Ring ZD12P01400), Start Serial: LLU00384 |
| 102. | 2444Z3325 | [1] | TEE | KOB, Serial Range: LLU00301-LLU00383 |
| 103. | 2444Z3465 | [1] | TEE | KOB(Incls. O-Ring ZD12P01100) |
| 104. | 2444Z3761 | [2] | TEE | KOB |
| 105. | 2444Z3802 | [1] | TEE | KOB, Serial Range: LLU00301-LLU00383 |
| 106. | ZE72X04000 | [4] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 107. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400), Serial Range: LLU00301-LLU00383 |
| 108. | 2425Z519 | [4] | BALL | KOB, Serial Range: LLU00301-LLU00383 |
| . . | 2425Z519 | [3] | BALL | KOB, Start Serial: LLU00384 |
| 109. | 2425Z533 | [1] | BALL | KOB, Serial Range: LLU00301-LLU00383 |
| 110. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 111. | 2418P20737 | [1] | RIGID TUBE | KOB |
| 112. | 2418T16720 | [1] | RIGID TUBE | KOB |
| 113. | 2416P15419 | [1] | BRACKET | KOB |
| 114. | 2420R537D100 | [1] | HOSE,9.60mm ID x 1000mm L | KOB |
| 115. | 2420R537D140 | [1] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB1400mm Long (55-7/64 in) |
| 116. | 2420R537D165 | [1] | HOSE,9.60mm ID x 1650mm L | KOBPF 3/8 Superseded by part number: HX21E06165DX |
| 117. | 2420R537D185 | [1] | FLEXIBLE HOSE,9.60mm ID x 1850mm L | KOB Superseded by part number: HX21E06185DX |
| 118. | 2420R537D180 | [3] | HOSE,9.60mm ID x 1800mm L | KOB1800mm Long (70-7/8 in), Serial Range: LLU00301-LLU00351 |
| . . | 2420R537D180 | [4] | HOSE,9.60mm ID x 1800mm L | KOB1800mm Long (70-7/8 in) LLU00352 to |
| 119. | 2420R537D210 | [8] | HOSE,9.53mm ID x 2100mm L | KOB |
| 120. | 2420R537D255 | [2] | HOSE,9.6mm ID x 2550mm L | KOB |
| 121. | 2420R537D290 | [2] | HOSE,9.53mm ID x 2900mm L | KOB |
| 122. | 2420R537D054 | [1] | FLEXIBLE HOSE,9.60mm ID x 540mm L | KOB Superseded by part number: 2420R537D055 |
| 123. | 2420R537D170 | [2] | HOSE,9.60mm ID x 1700mm L | KOB, Serial Range: LLU00301-LLU00383 |
| . . | 2420R537D170 | [3] | HOSE,9.60mm ID x 1700mm L | KOB, Start Serial: LLU00384 |
| 124. | 2420R537D120 | [1] | HOSE ASSY.,9.60mm ID x 1200mm L | KOB1200mm Long (47-1/4 in), Serial Range: LLU00301-LLU00383 Superseded by part number: HX21E06120DX |
| 125. | 2420R537D150 | [2] | FLEXIBLE HOSE,9.60mm ID x 1500mm L | KOB3/8" PF, 1500mm Long (59-1/16 in), Serial Range: LLU00301-LLU00383 Superseded by part number: HX21E06150DX |
| 126. | 2420R537D059 | [1] | FLEXIBLE HOSE,9.60mm ID x 590mm L | KOB, Serial Range: LLU00301-LLU00383 Superseded by part number: HX21E06059DX |
| 127. | 2444R941D9 | [1] | FLEXIBLE HOSE | KOB800mm Long (31-1/2 in) |
| 128. | 2444R1119D080 | [2] | FLEXIBLE HOSE | HIT |
| 129. | 2444R1119D090 | [2] | HOSE | KOB |
| 130. | 2444R1119D035 | [1] | FLEXIBLE HOSE | KOB350mm Long (13-49/64 in) |
| 131. | 2444R1119D180 | [1] | HOSE | KOB1800mm Long (70-7/8 in) |
| 132. | 2444R1119D028 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1119D030 |
| 133. | 2420R349D085 | [3] | HOSE,6.35mm ID x 850mm L | KOB850mm Long (33-29/64 in) |
| 134. | 2420R349D075 | [2] | HOSE | KOB750mm Long (29-1/2 in) LLU00301, Serial Range: -LLU00383 Superseded by part number: 2444R3019D3 |
| . . | 2420R349D075 | [3] | HOSE | KOB750mm Long (29-1/2 in) LLU00384 to Superseded by part number: 2444R3019D3 |
| 135. | 2420R349D355 | [1] | FLEXIBLE HOSE | KOB |
| 136. | 2420R349D375 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: HX21E04375DX |
| 137. | 2420R349D145 | [1] | HOSE | KOB1450mm Long (57-5/64 in) Superseded by part number: HX21E04145DX |
| 138. | 2420R349D230 | [1] | HOSE ASSY. | KOB2300mm Long (90-1/2 in) |
| 139. | 2420R349D065 | [2] | HOSE,650.00 mm | KOB650mm Long (25-1/2 in) LLU00301, Serial Range: -LLU00383 Superseded by part number: HX21E04065DX |
| . . | 2420R349D065 | [1] | HOSE,650.00 mm | KOB650mm Long (25-1/2 in) LLU00384 to Superseded by part number: HX21E04065DX |
| 140. | 2420R349D045 | [2] | HOSE | KOB450mm Long (17-23/32 in) |
| 141. | 2420R349D120 | [1] | HOSE,6.35mm ID x 1200mm L | KOB |
| 142. | 2420R349D130 | [2] | FLEXIBLE HOSE | KOB1/4" PF, 1300mm Long (51-3/16 in) |
| 143. | 2420R349D300 | [1] | HOSE ASSY. | KOB3000mm Long (118-7/64 in) |
| 144. | 2420R349D080 | [1] | HOSE,6.35mm ID x 800mm L | KOB800mm Long (31-1/2 in) |
| 145. | 2420R349D180 | [1] | HOSE,6.35mm ID x 1800mm L | KOB1800mm Long (70-7/8 in), Serial Range: LLU00301-LLU00351 |
| 146. | 2420R349D170 | [1] | FLEXIBLE HOSE | KOB1700mm Long (66-59/64 in) Superseded by part number: HX21E04170DX |
| 147. | 2420R349D055 | [1] | HOSE,6.35mm ID x 550mm L | KOB550mm Long (21-21/32 in) |
| 148. | 2420R349D060 | [2] | HOSE,6.35mm ID x 700mm L | KOB600mm Long (23-5/8 in) LLU00301, Serial Range: -LLU00383 |
| . . | 2420R349D060 | [3] | HOSE,6.35mm ID x 700mm L | KOB600mm Long (23-5/8 in) LLU00384 to |
| 149. | 2420R349D200 | [1] | HOSE ASSY. | KOB2000mm Long (78-3/4 in) |
| 150. | 2420R349D155 | [1] | HOSE,6.35mm ID x 1150mm L | KOB |
| 151. | 2420R349D035 | [2] | HOSE | KOB350mm Long (13-49/64 in) |
| 152. | 2420R349D050 | [1] | HOSE,500.00 mm | KOB500mm Long (19-11/16 in) LLU00301, Serial Range: -LLU00383 |
| 153. | 2420R349D040 | [3] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) LLU00301, Serial Range: -LLU00383 |
| . . | 2420R349D040 | [2] | HOSE,6.35mm ID x 400mm L | KOB1/4" PF, 400mm Long (15-3/4 in) LLU00384 to |
| 154. | 2420R349D110 | [3] | HOSE,1100.00 mm | KOB1100mm Long (43-19/64 in) Superseded by part number: HX21E04110DX |
| 155. | 2444R963D11 | [1] | FLEXIBLE HOSE | KOB550 mm long (21-21/32 in) Superseded by part number: HX31E04055DX |
| 156. | 2444Z3186 | [4] | ELBOW | KOB |
| 157. | 2444R963D28 | [1] | FLEXIBLE HOSE | KOB250mm Long (9-27/32 in) Superseded by part number: HX31E04025DX |
| 158. | 2444R1120D180 | [1] | HOSE | KOB |
| 159. | 2444R1120D200 | [1] | HOSE | KOB |
| 160. | ZX21M12045 | [1] | FLEXIBLE HOSE | KOB450mm Long (17-23/32 in) |
| 161. | ZX22M08045 | [1] | HOSE | KOB |
| 162. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 163. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 164. | 2444R1111F5 | [1] | CONNECTOR ASSY LLU00301, Serial Range: -LLU00383 | |
| 164-1. | 2417T537 | [1] | SPRING | KOB |
| 164-2. | 2425Z551 | [1] | BALL | BALL |
| 164-4. | 2444Z3775 | [1] | TEE | KOB Superseded by part number: 2444Z3134 |
| 164-5. | 2444Z3787 | [1] | HYD CONNECTOR | KOB Superseded by part number: 2444Z2294 |
| 164-9. | 2444Z3783 | [1] | 90 ELBOW | KOB90° -- 1/4" PT (Incls. O-Ring ZD12P01100) |
| 165. | 2420R349D100 | [1] | HOSE | KOB1000mm Long (39-3/8 in) Superseded by part number: HX21E04100DX |
| 166. | 2444Z3943 | [1] | ELEC CONNECTOR | KOB3/8" PF - 3/8"PFx 35mm Long (Incls. O-Ring ZD12P01400) |
| 167. | 2444Z2447F8 | [1] | ELBOW UNION | KOBUnion Elbow |
| 170. | 2420R349D090 | [2] | HOSE,6.35mm ID x 900mm L | KOB900mm Long (35-7/16 in) |
| 171. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) LLU00301, Serial Range: -LLU00383 |
| . . | ZH32X04006 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) LLU00384 to |
| 173. | 2444R1119D054 | [1] | FLEXIBLE HOSE | KOBLLU00384 to Superseded by part number: 2444R1119D055 |
| 174. | 2436R914F1 | [1] | INLET MANIFOLD | KOBLLU00384 to Superseded by part number: 2436R914F2 |
| 175. | 2444Z3832 | [1] | TEE | HITLLU00384 to |
| 176. | 2444T2533 | [1] | TEE | KOB(Incls. O-Ring ZD12P01400) LLU00384 to Superseded by part number: 87635046 |
| 177. | 2444Z2891 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) LLU00384 to |
| 178. | 2420R537D050 | [1] | HOSE,9.53mm ID x 500mm L | KOBLLU00384 to |
| 180. | 2420R537D220 | [1] | HOSE,9.60mm ID x 2200mm L | KOBLLU00384 to Superseded by part number: 77254115, HX21E06220DX |
| 181. | ZS13C10025 | [3] | CAPSCREW | KOBSCREW M10x1.50x25mm LLU00384 to Superseded by part number: ZS18C10025 |
| 182. | 2444Z4080 | [4] | HYD CONNECTOR | KOBLLU00450 to |
| 183. | 2432N568 | [1] | INSTALLER JIG | KOBLLU00450 to Superseded by part number: 2432N1751 |
| 184. | 2432N578 | [1] | PLATE | KOBLLU00450 to |
| 185. | 2432N696 | [1] | INSTALLER JIG | KOBLLU00450 to Superseded by part number: 2432N1750 |
| 186. | 2432N1084 | [1] | INSTALLER JIG | KOBLLU00450 to Superseded by part number: 2432N1752 |
