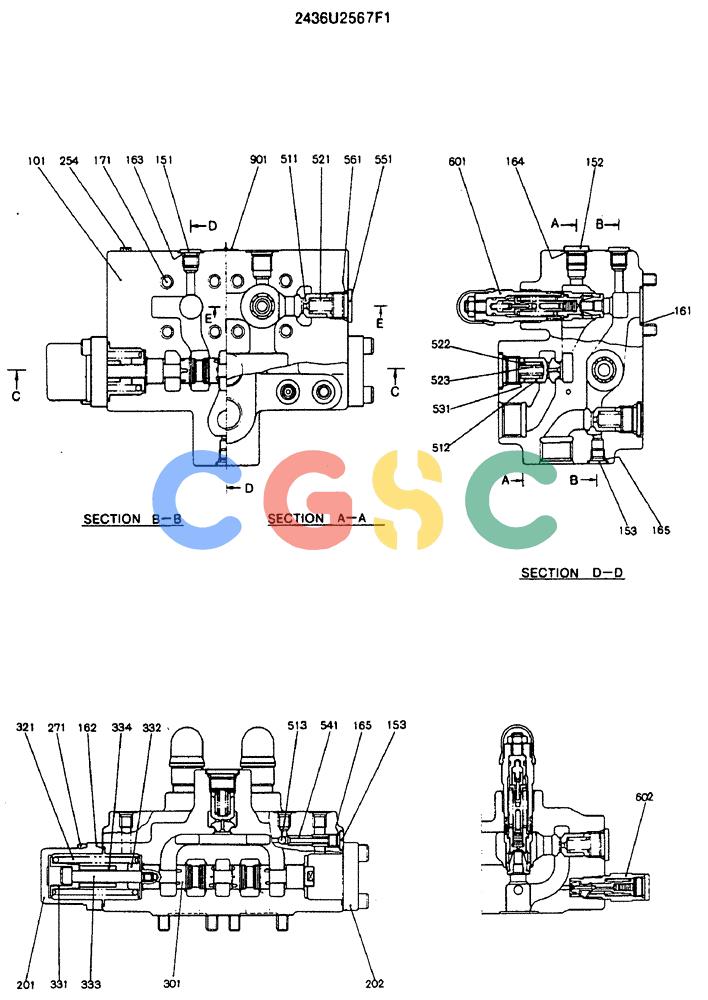

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (13-006) - VALVE ASSY, CONTROL (SWING) - 2436U2567F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
993 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U2567F1 | [1] | CONTROL VALVE | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 151. | 2436U1165S154 | [2] | PLUG | KOB |
| 152. | 2436U1219S153 | [1] | PLUG | KOB |
| 153. | 2436U1485S651 | [1] | PLUG | PLUG |
| 161. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 162. | ZD12G05500 | [2] | O-RING,3.1mm Thk x 54.4mm ID, 90 Duro | KOBO -- ID 54.40 ± 0.49 x OD 60mm |
| 163. | ZD12P01400 | [2] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 164. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 165. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 171. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 201. | 2436U1241S201 | [1] | COVER | KOB |
| 202. | 2436U1241S202 | [1] | COVER | KOBCOVER |
| 254. | 2436U1457S254 | [8] | PLUG | KOB |
| 271. | ZS23C10030 | [4] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 301. | 2436U2567S301 | [1] | SPOOL | |
| 321. | 2436U2567S321 | [1] | SPRING | KOB |
| 331. | 2436U1241S331 | [1] | SEAT, SPRING | SEAT, SPRING |
| 332. | 2436U1241S332 | [1] | SEAT, SPRING | |
| 333. | 2436U1165S336 | [1] | BOLT | KOBSPACER |
| 334. | 2436U1241S334 | [1] | SPACER | |
| 511. | 2436U1165S511 | [3] | POPPET | KOBPLUNGER |
| 512. | 2436U1241S512 | [1] | PLUNGER | |
| 513. | 2483U172S19 | [1] | BALL | KOB |
| 521. | 2436U1241S521 | [3] | SPRING | KOB |
| 522. | 2436U2567S522 | [1] | SPRING | KOBSPRING |
| 523. | 2436U2567S523 | [1] | SPRING | KOBSPRING |
| 531. | 2436U2567S531 | [1] | SHIM | KOBSHIM |
| 541. | 2436U1241S541 | [1] | SEAT | |
| 551. | 2436U1928S554 | [4] | PLUG | KOBPLUG Superseded by part number: YN30V00001S551 |
| 552. | 2436U1485S651 | [1] | PLUG | PLUG |
| 561. | ZD12P02400 | [4] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 562. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 601. | 2436R759F4 | [2] | VALVE PRESSURE RELIE | KOBASSY, SEE FIGURE 13-002 |
| 602. | 2436R790F3 | [2] | VALVE | KOBASSY, SEE FIGURE 13-003 Superseded by part number: 2436R790F8 |
| 901. | 24100U1156S891 | [1] | NAME-PLATE | |
