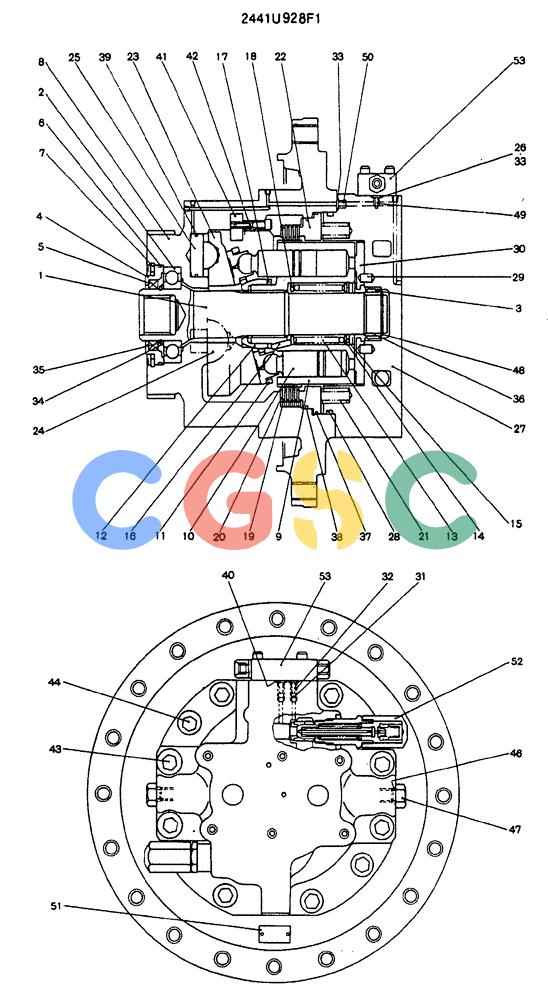

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (13-007) - MOTOR ASSY (PRORELLING) - 2441U928F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U928F1 | [1] | MOTOR ASSY (PROPELLING), CONSISTS OF THE FOLLOWING PARTS | MOTOR ASSY (PROPELLING), CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2441U739S1 | [1] | SHAFT | KOB |
| 2. | 2441U739S2 | [1] | BALL BEARING | KOB Superseded by part number: 25T816D10 |
| 3. | 2441U739S3 | [1] | BEARING | KOB |
| 4. | 2441U739S4 | [1] | CONTROL BLOCK | KOB |
| 5. | 2441U739S5 | [1] | SEAL KIT | KOB |
| G. | ZD12G11000 | [1] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOBID 109.4 ± 0.91 x OD 115mm |
| 7. | ZR26X11500 | [1] | SNAP RING | KOB |
| 8. | 2441U928S8 | [1] | CASE | CASE |
| 9. | 2441U928S9 | [1] | CYLINDER BLOCK | KOB |
| 10. | NSS | [9] | NOT SOLD SEPARAT | CONPISTON ASSY |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONRETAINER |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 13. | 2441U739S13 | [1] | SPRING | KOB |
| 14. | 2441U739S14 | [1] | SPRING SEAT | KOB |
| 15. | ZR26X07200 | [1] | SNAP RING | KOBSNAP |
| 16. | 2441U739S16 | [3] | PIN | KOB |
| 17. | 2441U739S17 | [1] | HOLDER | KOB |
| 18. | 2441U739S18 | [1] | SPRING SEAT | KOB |
| 19. | 2441U739S19 | [4] | CLUTCH PLATE | KOB |
| 20. | 2441U739S20 | [5] | STEP PLATE | KOB |
| 21. | 2441U518S30 | [14] | SPRING | KOB |
| 22. | 2441U739S22 | [1] | PISTON | KOBBRAKE |
| 23. | NSS | [1] | NOT SOLD SEPARAT | CONPLATE, SHOE |
| 24. | NSS | [2] | NOT SOLD SEPARAT | CONPIVOT |
| 25. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 26. | ZD12P00600 | [2] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 27. | 2441U928S27 | [1] | COVER | KOBREAR |
| 28. | ZD12G22000 | [1] | O-RING,219.30mm ID x 230.70mm OD x 5.70mm | KOB |
| 29. | 2441U739S29 | [2] | PIN | KOB |
| 30. | 2441U739S30 | [1] | PLATE | KOBVALVE |
| 31. | 2441U783S20 | [2] | CHECK VALVE | KOB |
| 32. | 2441U783S30 | [2] | SPRING | KOB |
| 33. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 34. | 2441U739S34 | [1] | SPACER | KOB |
| 35. | ZR16X06000 | [1] | RING | KOBSNAP |
| 36. | 2441U739S36 | [1] | RACE | KOB |
| 37. | 2441U739S37 | [1] | PISTON RING | KOB |
| 38. | 2441U739S38 | [1] | PISTON RING | KOB |
| 39. | 2441U928S39 | [1] | PISTON RING | KOB |
| 40. | ZD12P00900 | [2] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 41. | 2441U739S41 | [1] | STOP | KOB |
| 42. | 2441U928S42 | [3] | SCREW | KOB |
| 43. | ZS23C18065 | [4] | SCREW,Hex Socket Head, M18 x 65mm | KOBM18x2.50x65mm |
| 44. | ZS23C18055 | [6] | SCREW,Hex Socket Head, M18 x 55mm | KOBM18x2.50x55mm |
| 46. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 47. | 2483U171S34 | [2] | PLUG | KOB |
| 48. | 2441U739S48 | [1] | RING | KOBSNAP |
| 49. | 2436U812S4 | [1] | PLUG THROTTLE | PLUG THROTTLE |
| 50. | 2436U1123S14 | [1] | ORIFICE | KOB |
| 51. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 52. | 2436R866F1 | [2] | PILOT VALVE | KOBASSY, RELIEF, SEE FIGURE 13-008 |
| 53. | 2436R874F1 | [1] | VALVE | KOBASSY, SEE FIGURE 13-009 |
| . . | 2441U739R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 10 |
| . . | 2441U928R200 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 11 - 12 |
| . . | 2441U928R300 | [1] | REPAIR KIT | KOBCONSISTS OF REF. 23 - 25 |
