神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (13-008) - VALVE ASSY, OVER-LOAD RELIEF - 2436R866F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
791 次

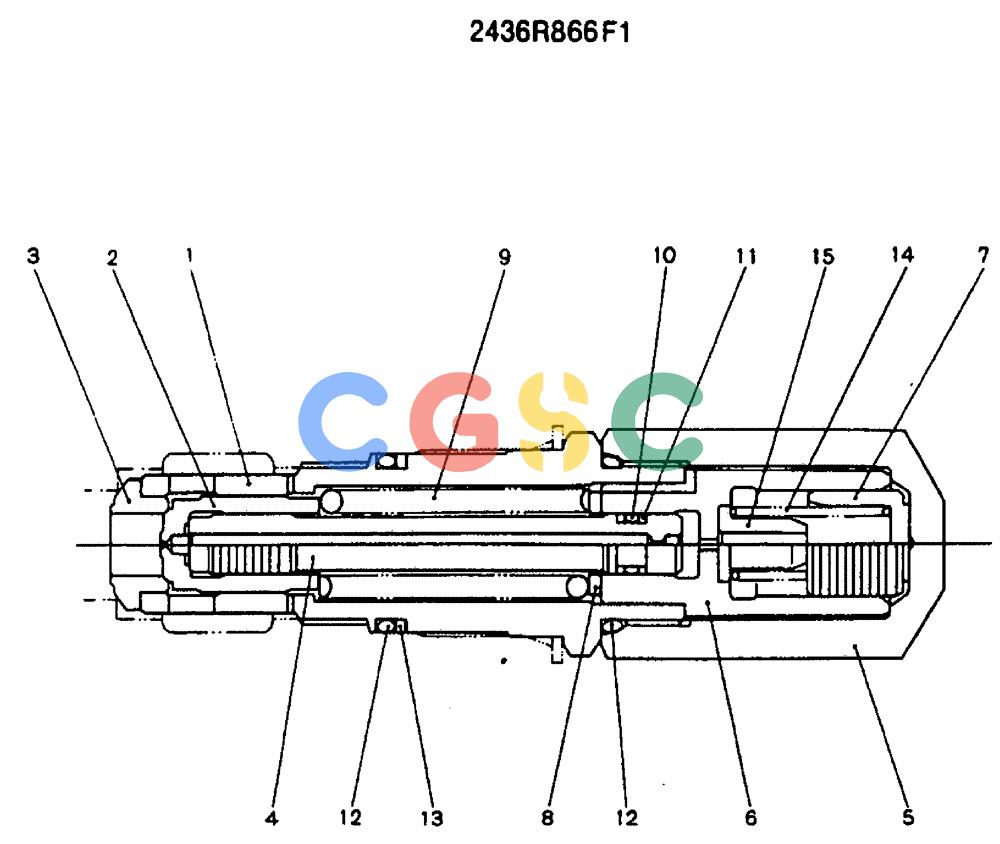

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R866F1 | [1] | PILOT VALVE | KOBASSY, RELIEF, CONSISTS OF THE FOLLOWING |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSOCKET |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONVALVE |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, VALVE |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONCAP |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONSHIM |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 10. | ZD12P00700 | [1] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOBO-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 11. | ZD85P00700 | [2] | BACK-UP RING | KOBID 07 x OD 10 x Th 1.25mm |
| 12. | ZD12G02500 | [2] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 13. | ZD85G02500 | [1] | BACK-UP RING | KOBRing, Back-Up -- ID 25 x OD 30 x Th 1.25mm |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
