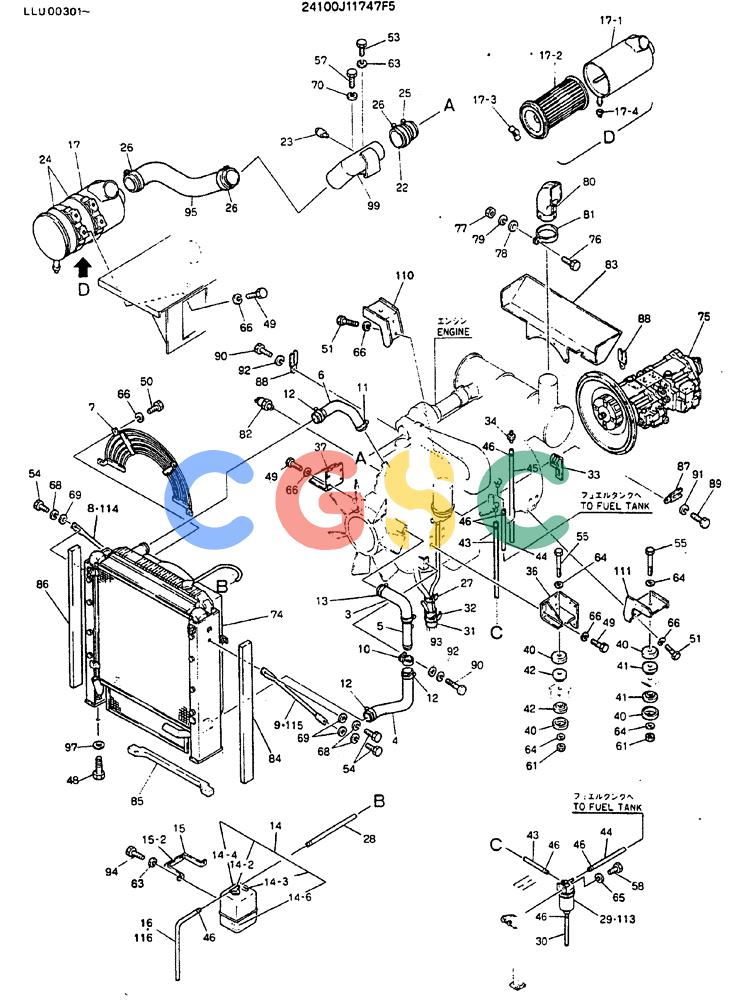

| . . | 24100J11747F5 | [1] | POWER PLANT ASSY | POWER PLANT ASSY |
| 3. | 2444Z2377 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444Z4148 |
| 4. | 2444R1948 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1199 |
| 5. | 2418T17430 | [1] | RIGID TUBE | KOB |
| 6. | 2444R1070 | [1] | HOSE | HOSE |
| 7. | 2427N2954 | [1] | GUARD | KOB |
| 8. | 2416T23404 | [1] | STAY | KOB, Serial Range: LLU00301-LLU00383 |
| 9. | 2416T23405 | [1] | STAY | KOB, Serial Range: LLU00301-LLU00383 |
| 10. | 2432T2366 | [1] | CLAMP | KOB |
| 11. | ZC15X06000 | [1] | CLIP | KOBCLIP |
| 12. | ZC15X07000 | [3] | CLIP | KOB |
| 13. | ZC15X08000 | [2] | CLIP | KOB |
| 14. | 2427U203F3 | [1] | TANK | KOBSUB, RADIATOR |
| 14-2. | 2427U203S2 | [1] | HYD CONNECTOR | KOB |
| 14-3. | 2427U203S3 | [1] | LABEL | KOB |
| 14-4. | 2427U203S4 | [1] | TANK | KOB |
| 14-6. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| 15. | 2416T23254 | [1] | BRACKET | KOB |
| 15-2. | 2416R259D1 | [1] | CUSHION | KOB |
| 16. | 2420Z912D4 | [1] | HOSE | KOB, Serial Range: LLU00301-LLU00425 |
| 17. | 2446R329F1 | [1] | AIR FILTER | KOB |
| 17-1. | 2446R329S1 | [1] | BODY ASSY | |
| 17-2. | 2446R312S2 | [1] | ELEMENT | KOB Superseded by part number: 2451U324-3 |
| 17-3. | 2446R312S3 | [1] | NUT | KOBWING |
| 17-4. | 2446U242S4 | [1] | VALVE | KOB |
| 22. | 2444Z2347 | [1] | FLEXIBLE HOSE | KOB |
| 23. | 2450R163F1 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 24. | 2415Z194D3 | [2] | BAND | KOB |
| 25. | ZC15X09000 | [1] | CLAMP | KOB |
| 26. | ZC15X10500 | [3] | CLIP | KOB |
| 27. | 2432Z290 | [6] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 28. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER ASSY, SEE FIGURE 05-005, Serial Range: LLU00301-LLU00327 |
| 30. | 4018Z1D3 | [1] | HOSE | KOB |
| 31. | 2418Z737D1 | [1] | TUBE | KOB |
| 32. | ZC15X01500 | [1] | CLIP | KOB |
| 33. | 2416T22522 | [1] | CLIP | KOBCLIP |
| 34. | 2444Z1293D10 | [1] | LUBE NIPPLE | KOBNipple, Hose -- 3/8" PTx46mm Long |
| 36. | 2416P14857 | [1] | BRACKET | KOB |
| 37. | 2416P8564 | [1] | BRACKET | KOB |
| 40. | 2414T1512 | [8] | COVER | KOB |
| 41. | 2416R145D2 | [4] | RUBBER SLEEVE | KOB |
| 42. | 2416R145D1 | [4] | RUBBER MOUNTING | KOBMOUNT |
| 43. | 4018Z1D27 | [1] | HOSE | KOB |
| 44. | 4018Z1D22 | [2] | RIGID TUBE | KOB |
| 45. | 2420Z795D3 | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 46. | ZC15X01000 | [9] | CLIP | KOB |
| 48. | ZS13C16035 | [4] | SCREW | KOBM16x2.0x35mm |
| 49. | ZS13C10025 | [12] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 50. | ZS18F10020 | [4] | BOLT,Hex, M10 x 20mm | KOBM10x1.25x20mm |
| 51. | ZS13C10030 | [8] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 52. | ZS13C08030 | [1] | SCREW | KOBM08x1.25x30mm Superseded by part number: ZS18C08030 |
| 53. | ZS18C08022 | [1] | SCREW,Hex, M8 x 22mm | KOBM08x1.25x22mm |
| 54. | ZS13C12030 | [4] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 55. | ZS13C18120 | [4] | CAPSCREW M18x2.0x120mm | CAPSCREW M18x2.0x120mm |
| 57. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 58. | ZS13C08025 | [2] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 59. | ZN13C08007 | [1] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 61. | ZN13C18015 | [4] | NUT | KOBM18x2.5mm |
| 63. | ZW26X08000 | [5] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 64. | 2418T17441D2 | [8] | WASHER | KOB |
| 65. | ZW22X08000 | [6] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 66. | ZW22X10000 | [24] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 68. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 69. | ZW13H12000 | [4] | WASHER | KOB |
| 70. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 73. | 2420P1581 | [1] | PIPE | PIPE |
| 74. | NSS | [1] | NOT SOLD SEPARAT | CONRADIATOR ASSY, SEE FIGURE 05-004 |
| 75. | NSS | [1] | NOT SOLD SEPARAT | CONPUMP ASSY, CONNECTION, SEE FIGURE 05-003 |
| 76. | ZS18C12040 | [1] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 77. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 78. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 79. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 80. | 2418P23183 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 81. | 2432T2492 | [1] | CLAMP | KOB Superseded by part number: LQ12P01003P1 |
| 82. | 2489U268F1 | [1] | SENDER UNIT,65 Degrees C, 149 Degrees F - 115 Degrees C, 239 Degrees F | KOBTHERMO |
| 83. | 2414P7853 | [1] | GUARD, Serial Range: LLU00301-LLU00317 | |
| 84. | 2479R1785 | [1] | INSULATOR | KOB |
| 85. | 2479R1828 | [1] | INSULATOR | KOB |
| 86. | 2479R1810 | [1] | INSULATOR | KOB |
| 87. | 2432R233D1 | [1] | CLIP | KOB37x12x40mm |
| 88. | 2432R233D3 | [2] | CLIP | KOB50x16x60mm |
| 89. | ZS18C06010 | [1] | SCREW,Hex, M6 x 10mm | KOBM06x1.0x10mm |
| 90. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 91. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 93. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 94. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 95. | 2444R1116 | [1] | FLEXIBLE HOSE | KOB |
| 97. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 99. | 2420P1601 | [1] | PIPE | KOB |
| 110. | 2416P16737D2 | [1] | BRACKET | KOB |
| 111. | 2416P16737D1 | [1] | BRACKET | KOBBRACKET |
| 112. | 2414P8306 | [1] | GUARD, Start Serial: LLU00318 | GUARD, Start Serial: LLU00318 |
| 113. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER ASSY, SEE FIGURE 05-005, Start Serial: LLU00328 |
| 114. | 2416T25932 | [1] | STAY SEE FIGURE 05-005, Start Serial: LLU00384 | STAY SEE FIGURE 05-005, Start Serial: LLU00384 |
| 115. | 2416T25931 | [1] | STAY | KOB, Start Serial: LLU00384 |
| 116. | 2420Z912D7 | [1] | FLEXIBLE HOSE | KOB, Start Serial: LLU00426 |
