神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (05-005) - FILTER ASSY - 2446U180, F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
480 次

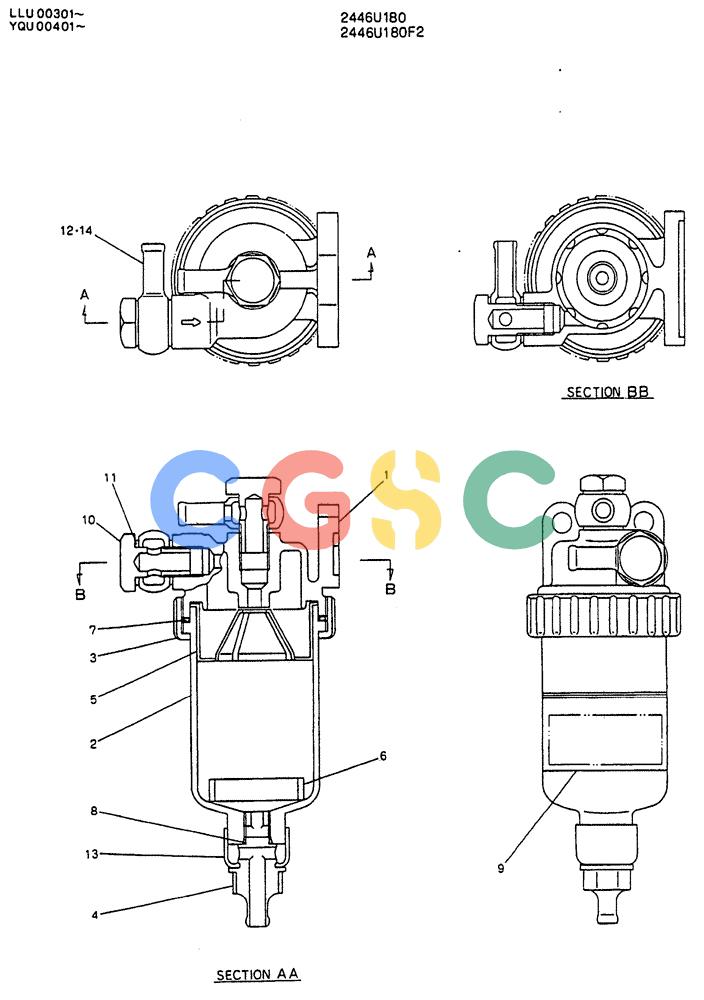

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2446U180 | [1] | SEPARATOR | KOBFILTER ASSY, Serial Range: LLU00301-LLU00327 Superseded by part number: 2446U180F2 |
| . . | 2446U180F2 | [1] | SEPARATOR | KOBFILTER ASSY, Start Serial: LLU00328 |
| 1. | 2446U180S1 | [1] | COVER | KOB |
| 2. | 2446U180S2 | [1] | CASE | KOB |
| 3. | 2446U180S3 | [1] | NUT | KOB |
| 4. | 2446U180S100 | [1] | DRAIN PLUG | KOB |
| 5. | 2446U180S5 | [1] | PLATE | KOB |
| 6. | 2446U180S6 | [1] | FLOAT | KOBLEVELING, WATER |
| 7. | ZD11G06000 | [1] | O-RING,59.40mm ID x 65.60mm OD x 3.10mm | KOBID 59.40 ± 0.61 x OD 65mm |
| 8. | ZD11P01000 | [1] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 9. | 2446U180S9 | [1] | PLATE, CAUTION | PLATE, CAUTION |
| 10. | 2446U180S10 | [2] | SCREW | KOB |
| 11. | 2446U180S11 | [4] | GASKET | KOB |
| 12. | 2446U180S12 | [2] | FLEXIBLE JOINT | KOBJOINT, SWIVEL, Serial Range: LLU00301-LLU00327 Superseded by part number: 2446U234S18 |
| 13. | 2446U180S13 | [1] | CUP | KOBDRAIN |
| 14. | 2446U234S18 | [2] | FLEXIBLE JOINT | KOB, Start Serial: LLU00328 |
