神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (05-004) - RADIATOR ASSY - 2452U418F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
628 次

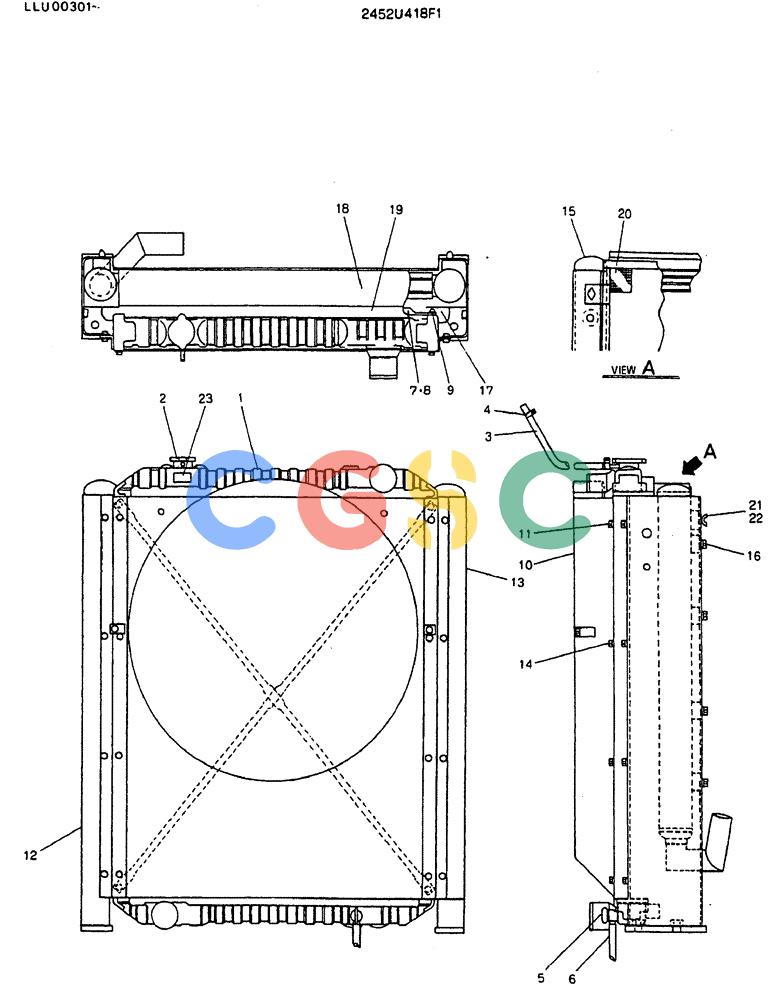

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2452U418F1 | [1] | RADIATOR | KOB |
| 1. | 2452U418S1 | [1] | CORE | KOB |
| 2. | 2452U457S8 | [1] | CAP | KOB Superseded by part number: YT05P00009S002 |
| 3. | 2452U390S20 | [1] | HOSE | KOB |
| 4. | 2452U390S19 | [2] | CLIP | KOB |
| 5. | 2452U183S5 | [1] | PLUG | KOBDRAIN |
| 6. | 2452U418S6 | [1] | FLEXIBLE HOSE | KOB |
| 7. | 2452U418S7 | [1] | ROD | KOB |
| 8. | 2452U418S8 | [1] | ROD | ROD |
| 9. | 2452U390S4 | [4] | SCREW | KOBSEMS Superseded by part number: 2452U292S30 |
| 10. | 2452U418S10 | [1] | GUARD ASSY, FAN | GUARD ASSY, FAN |
| 11. | 2427U846S5 | [8] | SEMS-BOLT | SEMS-BOLT |
| 12. | 2452U418S12 | [1] | BRACKET | KOB |
| 13. | 2452U418S13 | [1] | BRACKET | KOB |
| 15. | 2452U418S15 | [1] | OIL COOLER | KOB |
| 16. | 2452U418S16 | [8] | BOLT | KOB |
| 17. | 2452U418S17 | [2] | PACKING | KOB |
| 18. | 2452U418S18 | [1] | PACKING | KOB |
| 19. | 2452U418S19 | [2] | PACKING | KOB |
| 20. | 2452U418S20 | [1] | RETAINING WIRE | KOB |
| 21. | 2452U202S5 | [2] | BOLT | KOBM06x1.0 |
| 22. | 2452U412S20 | [2] | WASHER | KOB |
| 23. | 2452U292S31 | [1] | NAME-PLATE | |
