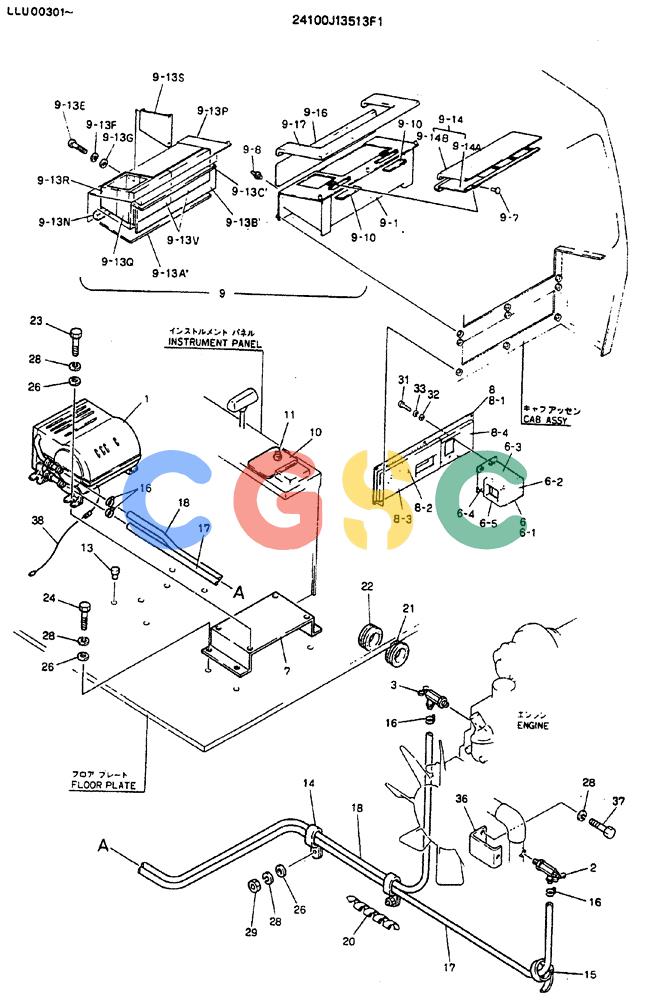

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (05-009) - HEATER ASSY - 24100J13513F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
490 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J13513F1 | [1] | HEATER ASSY | |
| 1. | 2479U293D3 | [1] | HEAT EXCHANGER | KOB Superseded by part number: 2479U293D4 |
| 2. | R44T0183 | [1] | HYD CONNECTOR | KOB |
| 3. | R44T0180 | [1] | COCK | KOB |
| 6. | 24100P3364F1 | [1] | SUPPORT ASSY | |
| 6-1. | 2416P16643 | [1] | SUPPORT | |
| 6-2. | 2427Z1515 | [1] | INSULATION, SOUND | |
| 6-3. | 2427Z1516 | [1] | INSULATION, SOUND | |
| 6-4. | 2427Z1517 | [1] | INSULATION, SOUND | |
| 6-5. | 2427Z1518 | [1] | INSULATION, SOUND | |
| 7. | 2416P16123 | [1] | SUPPORT | |
| 8. | 24100N6984F1 | [1] | DUCT ASSY | DUCT ASSY |
| 8-1. | 2427N3112 | [1] | DUCT | KOB |
| 8-2. | 2427Z1519 | [1] | INSULATION, SOUND | |
| 8-3. | 2427Z1520 | [1] | INSULATION, SOUND | |
| 8-4. | 2427Z1521 | [1] | INSULATION, SOUND | |
| 9. | 24100N6473F8 | [1] | BOX ASSY | |
| 9-7. | 2420Z1192 | [4] | RIVET | KOBRIVET |
| 9-8. | 2432R236 | [3] | CLIP | KOBASSY |
| 9-10. | 2418Z753 | [2] | PLATE | |
| 9-13. | 24100N6466F4 | [1] | BOX ASSY | |
| 9-13E. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 9-13F. | ZW26X05000 | [4] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 9-13G. | ZW16P05000 | [4] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 9-13N. | 2479Z2214 | [1] | INSULATOR | |
| 9-13P. | 2414N4654 | [1] | BOX | |
| 9-13Q. | 2414P8156 | [1] | CASE | |
| 9-13R. | 2414P8157 | [1] | CASE | |
| 9-13S. | 2418P24751 | [1] | PLATE | |
| 9-13V. | 2427Z1503 | [2] | INSULATION, SOUND | |
| 9-13A'. | 2479Z2343 | [1] | INSULATOR, Start Serial: LLU00376 | |
| 9-13B'. | 2479Z2344 | [1] | INSULATOR, Start Serial: LLU00376 | |
| 9-13C'. | 2479Z2345 | [1] | INSULATOR, Start Serial: LLU00376 | |
| 9-14. | 24100P3251F1 | [1] | COVER | KOB |
| 9-14A. | 2414P8082 | [1] | COVER | KOB Superseded by part number: 2414P8655 |
| 9-UB. | 2427R1313 | [1] | FOAM INSULATION | KOB |
| 9-16. | 2427R1310 | [1] | FOAM INSULATION | KOB |
| 9-17. | 2427R1311 | [1] | INSULATION, HEAT | INSULATION, HEAT |
| 10. | 2414P7634 | [1] | COVER | COVER |
| 11. | 2479U325 | [1] | SWITCH | KOB |
| 13. | 2420Z1374 | [6] | PLUG | KOB |
| 14. | 2432R226D11 | [2] | CLIP | KOBClamp, Double -- ID 22 x 81mm Long Superseded by part number: ZC48X22014 |
| 15. | 2432Z290 | [1] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 16. | ZC15X02300 | [4] | CLIP | KOB |
| 17. | R18T0026D35 | [1] | HOSE | KOBID 12 x OD 22 x 3000mm |
| 18. | R18T0026D2 | [1] | HOSE,12mm ID x 2700mm L | KOBID 12 x OD 22 x 2700mm |
| 20. | 2414Z199D025 | [2] | PROTECTIVE SLEEVE | KOBHose -- 250mm Long (9-27/32 in) |
| 21. | 2420Z699 | [1] | GROMMET | KOB |
| 22. | 2420Z1188 | [1] | GROMMET | KOB |
| 23. | ZS18C10016 | [4] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm |
| 24. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 26. | ZW16X10000 | [10] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 28. | ZW26X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 29. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 31. | ZS18C08016 | [4] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 32. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 33. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 36. | 2416T25285 | [1] | BRACKET | BRACKET |
| 37. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 38. | 2479Z2580 | [1] | HARNESS | |
