神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (05-008) - GAUGE CLUSTER - 2489U331 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
658 次

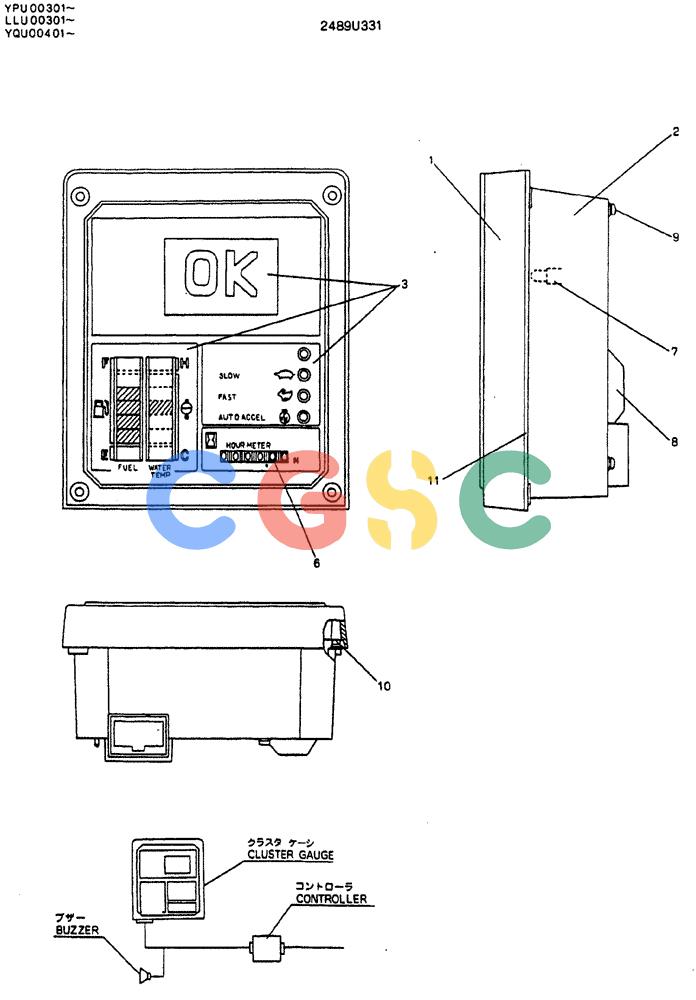

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2489U331 | [1] | GAUGE | KOBGAUGE, CLUSTER |
| 1. | 2489U266S1 | [1] | COVER | KOBFRONT |
| 2. | 2489U266S2 | [1] | HOUSING | KOB |
| 3. | 2489U266S3 | [1] | SIGHTGLASS | KOB |
| 6. | 2489U266S6 | [1] | METER | KOB |
| 7. | 2489U266S7 | [3] | BULB | KOBSOCKET & VALVE ASSY |
| 8. | 2489U266S8 | [1] | PLATE | KOB |
| 9. | 2489U266S9 | [3] | SCREW | KOB |
| 10. | 2489U266S10 | [2] | SELF-TAP SCREW | KOB |
| 11. | 2489U266S11 | [1] | GASKET | KOB |
