神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (06-004) - LIGHT ASSY - 2456U81F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
579 次

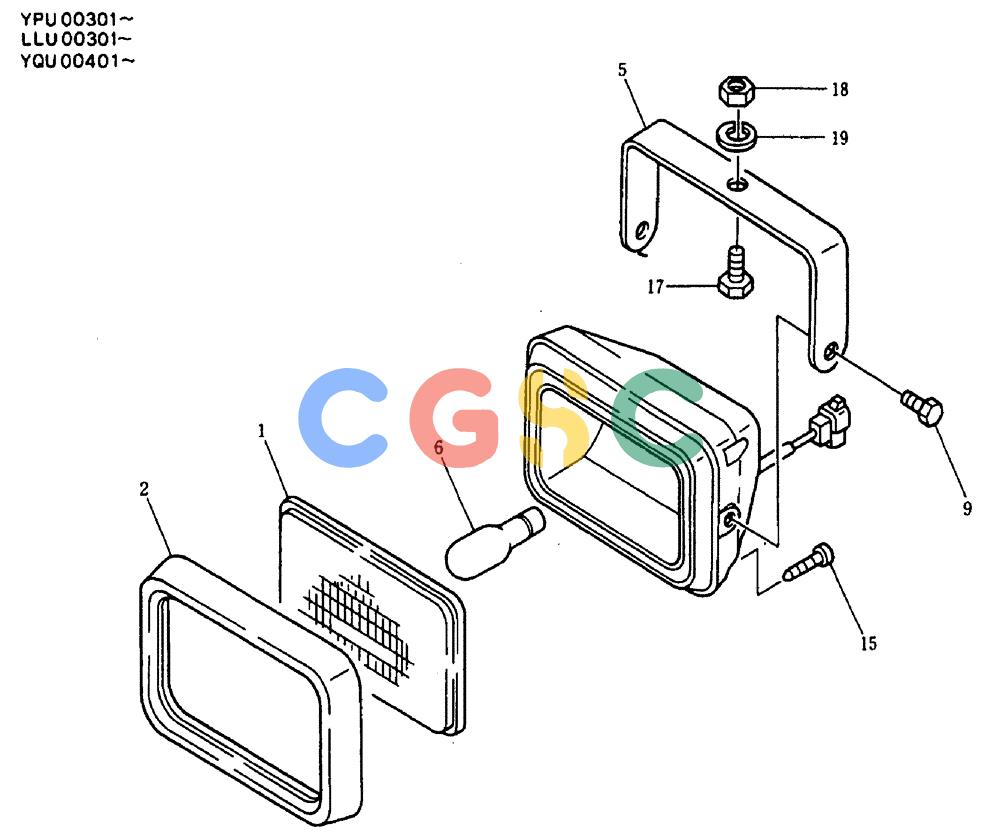

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456U81F2 | [1] | WORK LAMP | KOBASSY |
| 1. | 2456U81S1 | [1] | LENS | KOB |
| 2. | 2456U81S2 | [1] | RIM | KOB |
| 5. | 2456U81S5 | [1] | STAY | |
| 6. | 2456U81S6 | [1] | BULB | KOB24Volt/70Watts Superseded by part number: YW80S00001S005 |
| 9. | 2456U81S9 | [2] | BOLT | |
| 15. | 2456U81S15 | [4] | SCREW | KOBTAPPING SCREW |
| 17. | 2456U81S17 | [1] | BOLT | |
| 18. | 2456U81S18 | [1] | NUT | |
| 19. | 2456U81S19 | [1] | WASHER, SPRING | |
