神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (06-005) - LIGHT ASSY - 2456U74F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
452 次

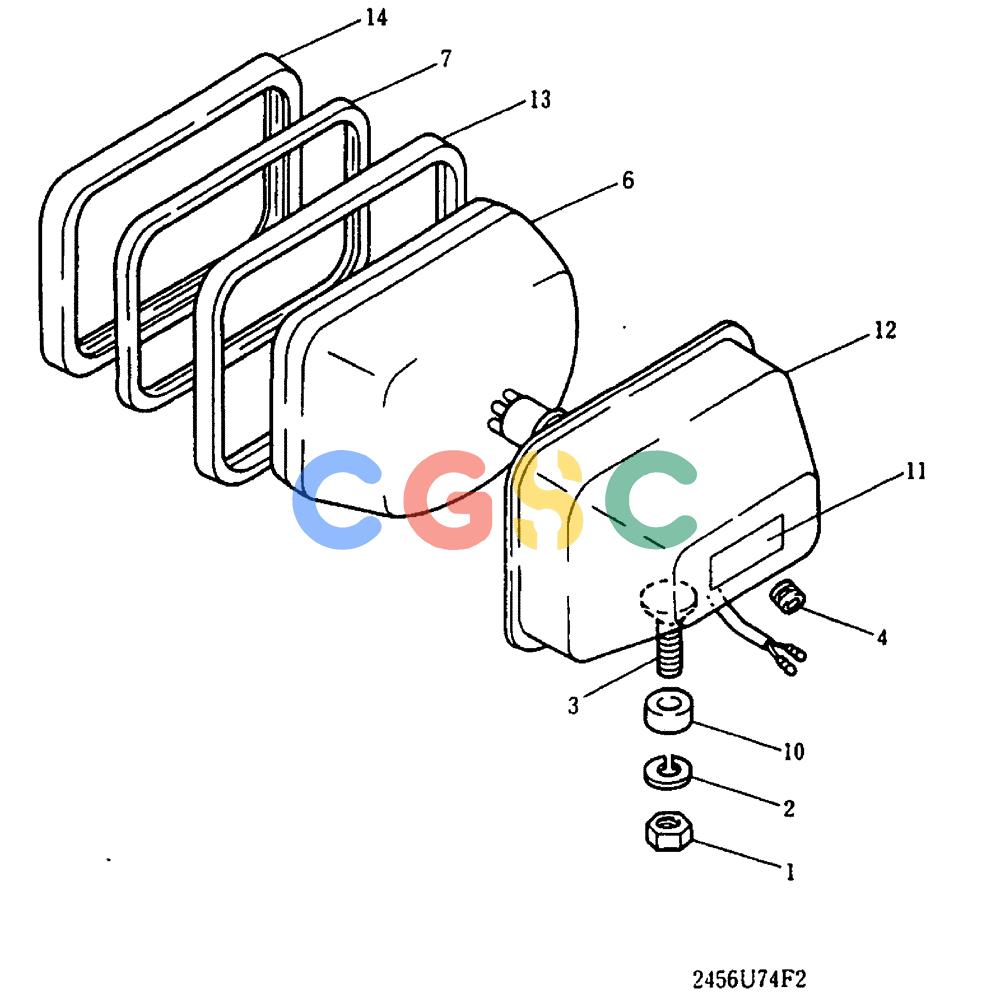

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456U74F2 | [1] | FILTER ASSY | KOBWORKING Superseded by part number: 2456R442F1 |
| 1. | 2456R229S8 | [1] | NUT | KOB |
| 2. | ZW26X14000 | [1] | WASHER | KOBID 14 x OD 24.5 x Th 3.5mm |
| 3. | 2456U74S3 | [1] | SCREW | KOB |
| 4. | 2456U74S4 | [1] | GROMMET | KOB |
| 6. | 2456R229S11 | [1] | SEALED BEAM UNIT | KOB Superseded by part number: 77259638, 2456R229S11M |
| 7. | 2456U74S7 | [1] | CUSHION | KOB |
| 10. | 2456U74S10 | [1] | SHEET | KOB |
| 11. | 2456U74S11 | [1] | NAME-PLATE | |
| 12. | 2456U74S5 | [1] | NOT SERVICED | KOB |
| 13. | 24S6U74S8 | [1] | RING | |
| 14. | 2456U74S9 | [1] | RING | KOB Superseded by part number: 2456U74S14 |
