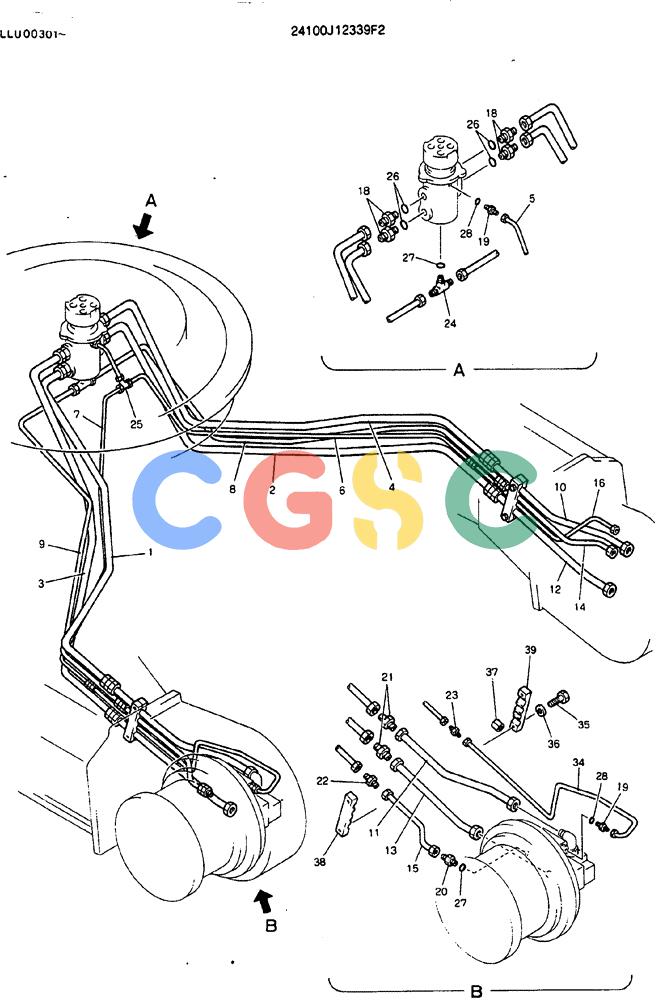

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (07-007) - HYDR LINES, LOW - 24100J12339F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
401 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J12339F2 | [1] | HYDR LINES, LOW | |
| 1. | 2418P23316 | [1] | TUBE | KOB |
| 2. | 2418P23317 | [1] | TUBE | KOB |
| 3. | 2418P23318 | [1] | TUBE | KOB |
| 4. | 2418P23319 | [1] | TUBE | KOB |
| 5. | 2418T21439 | [1] | RIGID TUBE | KOB |
| 6. | 2418P23320 | [1] | RIGID TUBE | KOB |
| 7. | 2418P23321 | [1] | RIGID TUBE | KOB |
| 8. | 2418P23322 | [1] | TUBE | KOB |
| 9. | 2418P23323 | [1] | TUBE | KOB |
| 10. | 2418T21440 | [1] | TUBE | KOB |
| 11. | 2418T21441 | [1] | TUBE | KOB |
| 12. | 2418T21442 | [1] | TUBE | KOB |
| 13. | 2418T21443 | [1] | TUBE | KOB |
| 14. | 2418P23324D1 | [1] | TUBE | KOB |
| 15. | 2418P23324D2 | [1] | TUBE | KOB |
| 16. | 2418P23325 | [1] | TUBE | KOB |
| 18. | ZF23F28016 | [4] | HYD CONNECTOR | KOB |
| 19. | ZA23F10004 | [3] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| 20. | ZA23F18008 | [2] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 21. | ZF23B28000 | [4] | HYD CONNECTOR | KOB Superseded by part number: 47641651 |
| 22. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| 23. | ZA23B10000 | [2] | HYD CONNECTOR | KOBM16x1.50x50mm Long |
| 24. | 2444Z2887 | [1] | TEE | KOB |
| 25. | ZA53B10000 | [1] | TEE | KOB(3) M16x1.50x46mm Long (No O-Ring supplied) |
| 26. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 27. | ZD12P01800 | [3] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 28. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 34. | 2418P23676 | [1] | TUBE | KOB |
| 35. | ZS23C10045 | [4] | SCREW,Hex Socket Head, M10 x 45mm | KOBM10x1.50x45mm |
| 36. | ZW22K10000 | [4] | LOCK WASHER | KOBLock -- ID 10.2 x OD 15.7 x Th 2.5mm |
| 37. | 2414T2890 | [2] | PROTECTOR | KOBID 10 x OD 14 x 35mm Long |
| 38. | 2432T4755 | [2] | CLAMP | KOB |
| 39. | 2432T4756 | [2] | CLAMP | KOB |
