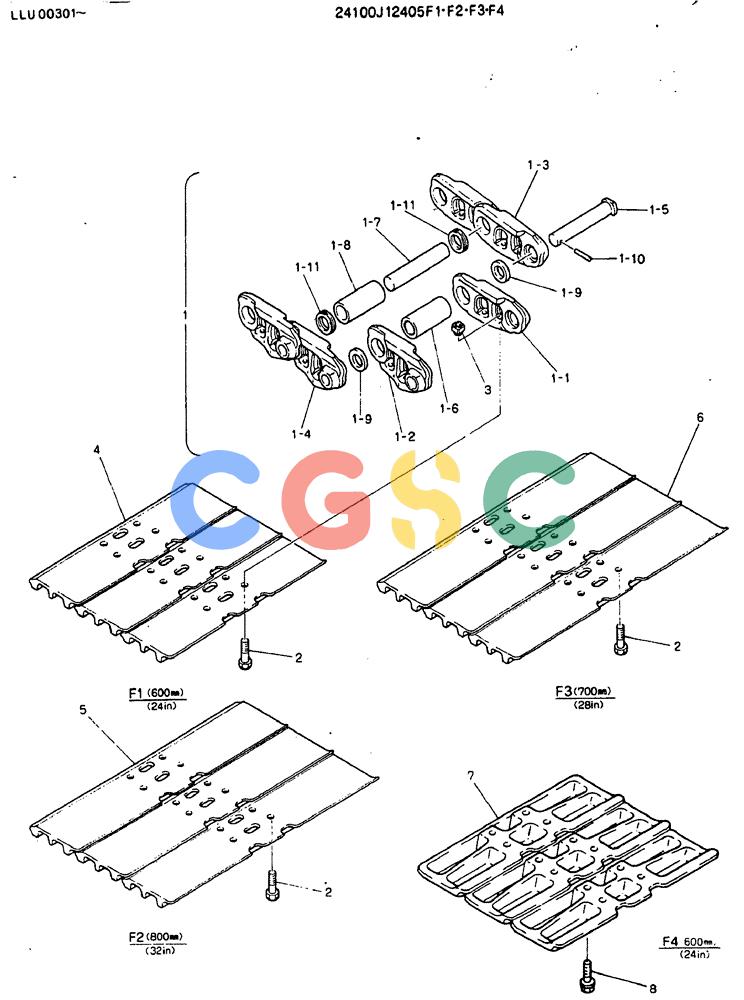

神钢零件查询(MD240C) - EXCAVATOR BTW LLU0301 - LLU0600 (1/80-12/06) (07-008) - INSTAL, CRAWLER TRACK - 24100J12405F1, F2, F3, F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J12405F1 | [1] | INSTAL, TRACK, CRAWL | INSTAL, TRACK, CRAWL |
| 1. | 24100J12450F2 | [2] | CHAIN | KOB Superseded by part number: 24100J12423F1 |
| 1-1. | 2424N213D1 | [47] | LINK | KOBLINK (RH) |
| 1-2. | 2424N213D2 | [47] | LINK | KOBLINK (LH) |
| 1-3. | 2424P168D1 | [1] | CONNECTING LINK | KOB(RH) |
| 1-4. | 2424P168D2 | [1] | CONNECTING LINK | KOB(LH) |
| 1-5. | 2419P3326 | [1] | PIN | KOB |
| 1-6. | 2405P428 | [1] | BUSHING | KOB |
| 1-7. | 2419P3327 | [47] | PIN | KOB |
| 1-8. | 2405P427 | [47] | BUSHING | KOBTRACK Superseded by part number: 2405P732 |
| 1-9. | 2418T21654 | [2] | COLLAR CLAMP | KOB |
| 1-10. | 2419Z217 | [1] | PIN | KOB |
| 1-11. | 2445Z1506 | [94] | SEAL | KOB Superseded by part number: LB60D01011P1 |
| 2. | 2420T7458 | [384] | BOLT,Spher Hex, M20 x 1.5 x 60mm, Cl 2 | KOBM20x1.50x60mm |
| 3. | 2420P1584 | [384] | NUT | KOBSHOE |
| 4. | 2424N211D1 | [96] | SHOE | KOB Superseded by part number: 2424N261 |
| . . | 24100J12405F2 | [1] | INSTAL, TRACK, CRAWL CONSISTS OF REF. 1 - 3 | INSTAL, TRACK, CRAWL CONSISTS OF REF. 1 - 3 |
| 5. | 2424N212 | [96] | SHOE | KOB Superseded by part number: 2415N366 |
| . . | 24100J12405F3 | [1] | INSTAL, CRAWLER TRACK, CONSISTS OF REF. 1 - 3 | |
| 6. | 2424N212D2 | [96] | SHOE | KOB Superseded by part number: 2424N262 |
| . . | 24100J12405F4 | [1] | INSTAL, CRAWLER TRACK, CONSISTS OF REF. 1 & 3 | |
| 7. | 2424J180 | [96] | SHOE | KOB |
| 8. | 2420T762D2 | [384] | BOLT, SHOE | |
