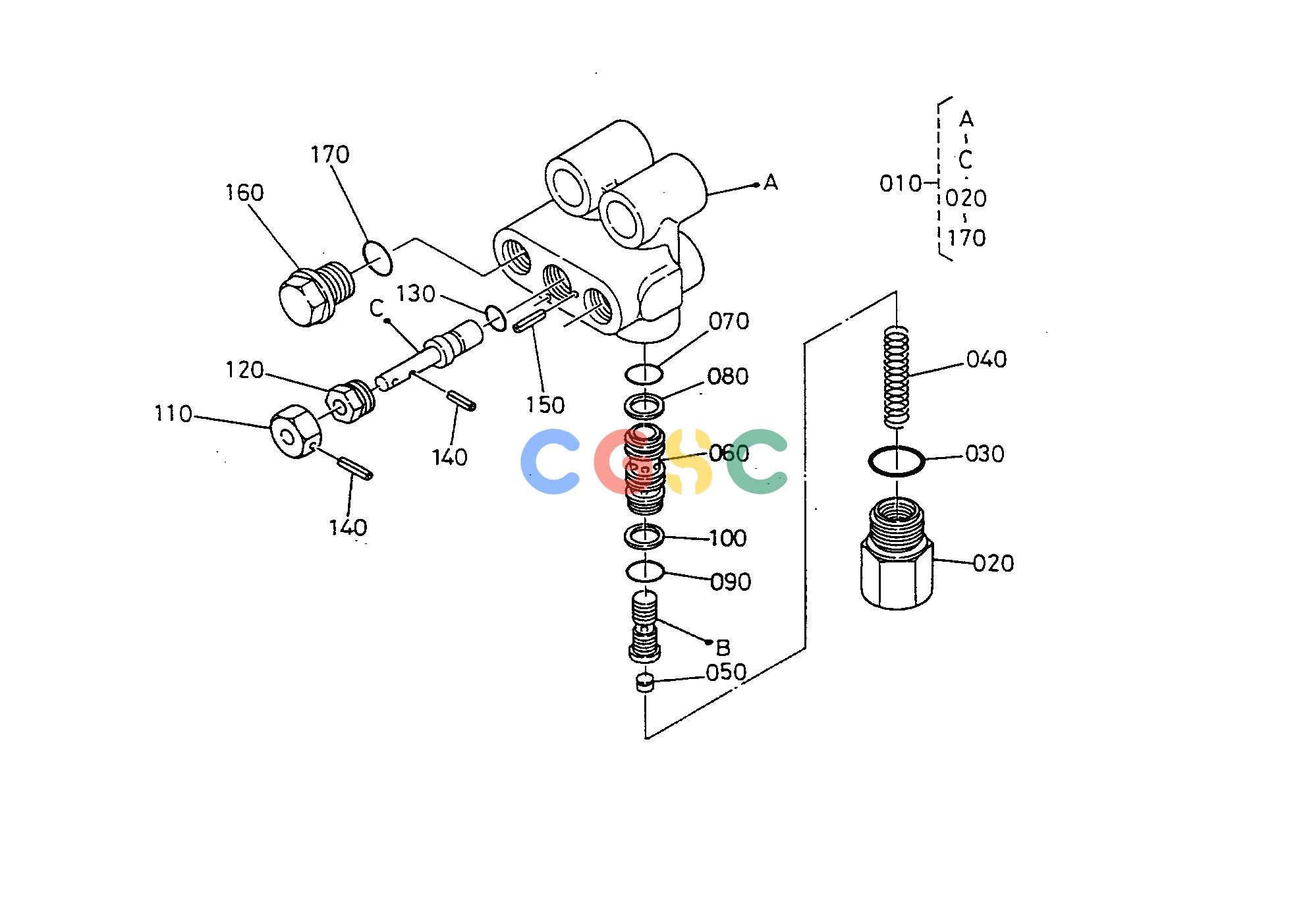

久保田零件查询T09400 HYDRAULIC BLOCK [A] [CA] [SECTION PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
919 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9631937030
|
[1] |
ASSY OUTLET HYD.
|
3.3000(lbs); 1.500
|
| 020. |
6781038310
|
[1] |
DIVIDER
|
0.0000(lbs); 0.000
|
| 030. |
0481100220
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 040. |
6781038320
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 050. |
6781038340
|
[1] |
DAMPER
|
0.0022(lbs); 0.001
|
| 060. |
6781038350
|
[1] |
DIVIDER
|
0.0550(lbs); 0.025
|
| 070. |
0481105130
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 080. |
6781038360
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 090. |
0481105150
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 100. |
6781038370
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 110. |
6781038160
|
[1] |
NUT
|
0.0330(lbs); 0.015
|
| 120. |
6785038520
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 130. |
0481100090
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 140. |
0541100316
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 150. |
0541100216
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 160. |
6781037890
|
[2] |
PLUG
|
0.1056(lbs); 0.048
|
| 170. |
0481100140
|
[2] |
RING
|
0.0022(lbs); 0.001
|
