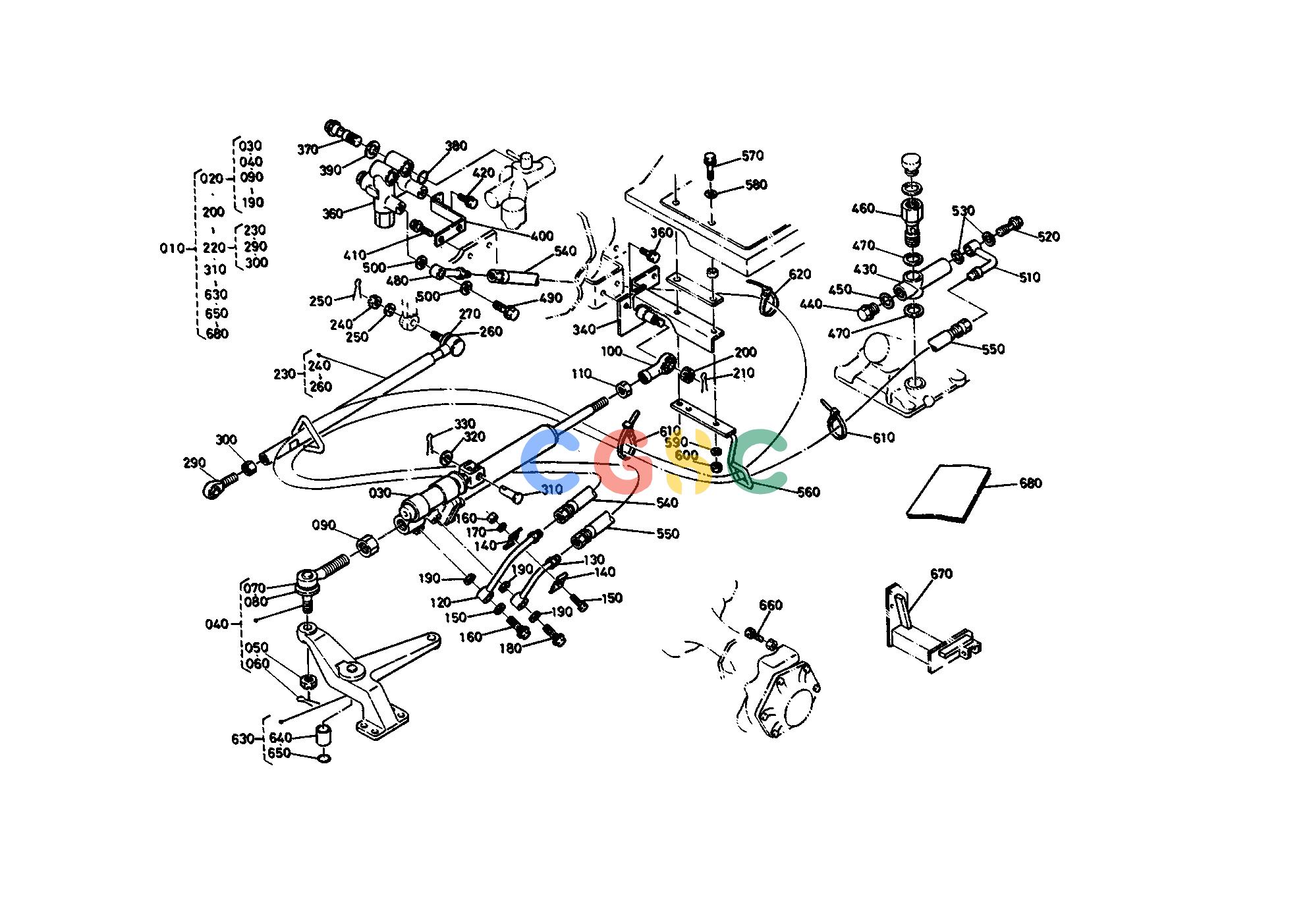

久保田零件查询T08800 POWER STEERING [A] [CA] [OPTION] STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
376 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
9631937100
|
[1] |
KIT. POWER STEERING
|
30.5800(lbs); 13.900
|
| 020. |
9631937020
|
[1] |
ASSY BOOSTER AUX.
|
11.0000(lbs); 5.000
|
| 030. |
9631938010
|
[1] |
ASSY BOOSTER
|
9.2400(lbs); 4.200
|
| 040. |
9631938110
|
[1] |
ASSY END 2
|
0.7920(lbs); 0.360
|
| 050. |
3824012830
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 060. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 070. |
3824012650
|
[1] |
COVER DUST
|
0.0220(lbs); 0.010
|
| 080. |
3824012660
|
[1] |
CLIP
|
0.0110(lbs); 0.005
|
| 090. |
0217250200
|
[1] |
NUT
|
0.0660(lbs); 0.030
|
| 100. |
9631938120
|
[1] |
END ROD
|
0.3300(lbs); 0.150
|
| 110. |
0215250140
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 120. |
9631938230
|
[1] |
PIPE DELIVERY
|
0.1760(lbs); 0.080
|
| 130. |
9631938240
|
[1] |
PIPE RETURN
|
0.1320(lbs); 0.060
|
| 140. |
9631938280
|
[2] |
CLAMP PIPE
|
0.0220(lbs); 0.010
|
| 150. |
0105350620
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 160. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 170. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 180. |
9631938250
|
[2] |
BOLT JOINT
|
0.0880(lbs); 0.040
|
| 190. |
0471400200
|
[4] |
GASKET
|
0.0022(lbs); 0.001
|
| 200. |
0237550120
|
[1] |
NUT
|
0.0176(lbs); 0.008
|
| 210. |
0551150325
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 220. |
9631937060
|
[1] |
ASSY LINK DRAG
|
2.5960(lbs); 1.180
|
| 230. |
9631937110
|
[1] |
COMP.LINK DRAG
|
2.3540(lbs); 1.070
|
| 240. |
6659156780
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 250. |
0551152520
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 260. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 270. |
6712156560
|
[1] |
COVER DUST
|
0.0176(lbs); 0.008
|
| 280. |
6712156570
|
[1] |
CLIP
|
0.0066(lbs); 0.003
|
| 290. |
9631938140
|
[1] |
END ROD
|
0.1980(lbs); 0.090
|
| 300. |
0211250120
|
[1] |
NUT
|
0.0154(lbs); 0.007
|
| 310. |
0512251240
|
[1] |
PIN JOINT
|
0.0858(lbs); 0.039
|
| 320. |
0401150120
|
[1] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 330. |
0551150425
|
[1] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 340. |
9631937120
|
[1] |
SUPPORT STEP LH
|
0.0000(lbs); 0.000
|
| 350. |
0112350820
|
[3] |
BOLT
|
0.0242(lbs); 0.011
|
| 360. |
9631937030
|
[1] |
ASSY OUTLET HYD.
|
3.3000(lbs); 1.500
|
| 370. |
9631937150
|
[2] |
BOLT JOINT
|
0.2200(lbs); 0.100
|
| 380. |
0481110220
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 390. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 400. |
9631937160
|
[1] |
STAY VALVE
|
0.1540(lbs); 0.070
|
| 410. |
0113351028
|
[2] |
BOLT
|
0.0594(lbs); 0.027
|
| 420. |
0112351020
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 430. |
9631937170
|
[1] |
JOINT
|
0.6490(lbs); 0.295
|
| 440. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 450. |
0471400300
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 460. |
9631937180
|
[1] |
BOLT JOINT
|
0.4070(lbs); 0.185
|
| 470. |
0471400400
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 480. |
9631937210
|
[1] |
PIPE DELIVERY
|
0.1100(lbs); 0.050
|
| 490. |
6781037880
|
[1] |
BOLT
|
0.0726(lbs); 0.033
|
| 500. |
0471400120
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 510. |
9631937220
|
[1] |
PIPE RETURN
|
0.1320(lbs); 0.060
|
| 520. |
9631938250
|
[1] |
BOLT JOINT
|
0.0880(lbs); 0.040
|
| 530. |
0471400200
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 540. |
9631937230
|
[1] |
HOSE
|
0.9900(lbs); 0.450
|
| 550. |
9631937240
|
[1] |
HOSE
|
1.1000(lbs); 0.500
|
| 560. |
9631938270
|
[1] |
RETAINER HOSE
|
0.3300(lbs); 0.150
|
| 570. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 580. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 590. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 600. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 610. |
5358164150
|
[2] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 620. |
5531141260
|
[1] |
BAND CORD
|
0.0154(lbs); 0.007
|
| 630. |
9631937050
|
[1] |
ASSY ARM KNUCKLE LH
|
5.9400(lbs); 2.700
|
| 640. |
6712156440
|
[1] |
BUSH
|
0.0440(lbs); 0.020
|
| 650. |
0481100250
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 660. |
9631938320
|
[1] |
BOLT ADJUSTING
|
0.0880(lbs); 0.040
|
| 670. |
9631937260
|
[1] |
STAY REINFORCING
|
0.4400(lbs); 0.200
|
| 680. |
9631938312
|
[1] |
MANUAL STRUCTURE
|
0.0000(lbs); 0.000
|
