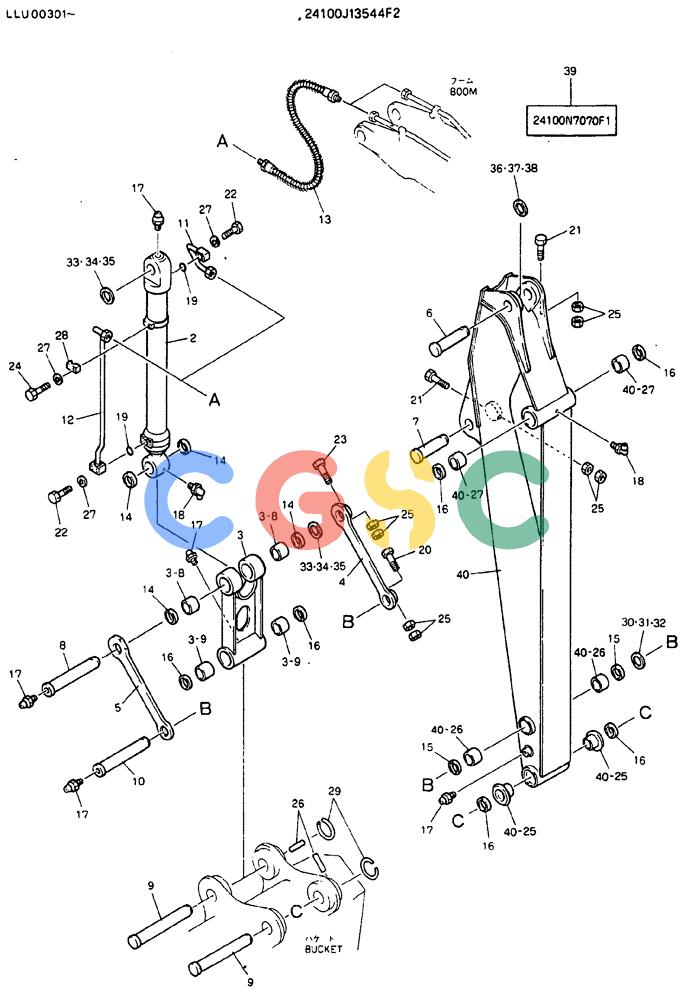

| . . | 24100J13544F2 | [1] | ARM ASSY, 3.66M | |
| 2. | 2436U1138F1 | [1] | CYLINDER | |
| 3. | 2406N1570F1 | [1] | LINK | KOB |
| 3-8. | 2405T1263 | [1] | BUSHING | KOB |
| 3-9. | 2405T1264 | [1] | BUSHING | KOB |
| 4. | 2406P4903D1 | [1] | LINK CONROD | KOB |
| 5. | 2406P4903D2 | [1] | LINK CONROD | KOB |
| 6. | 2419P2953 | [1] | PIN | KOB Superseded by part number: 2419P4041 |
| 7. | 2419P3331D2 | [1] | PIN | KOB |
| 8. | 2419P3266D1 | [1] | PIN,80mm OD x 480mm L | KOB Superseded by part number: 2419P4044D1 |
| 9. | 2419T4684D1 | [2] | PIN,90mm OD x 500mm L | KOB Superseded by part number: 2419T7611D1 |
| 10. | 2419P3267D1 | [1] | PIN,70mm OD x 449mm L | KOB Superseded by part number: 2419P4045D1 |
| 11. | 2418T18163 | [1] | RIGID TUBE | KOB |
| 12. | 2418T17669 | [1] | RIGID TUBE | KOB |
| 13. | ZX56T12200 | [2] | FLEXIBLE HOSE | KOB Superseded by part number: 2444R1177D6 |
| 14. | 2445R220D4 | [4] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| 15. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| 16. | 2445R220D6 | [6] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDust -- ID 90 X OD 105 x Th 6mm |
| 17. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 18. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 19. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| 20. | 2420T4330D9 | [1] | SCREW,M16 x 2 x 130mm | KOBM16x2.0x130mm Superseded by part number: HS18C16130G2 |
| 21. | 2420T4004D1 | [2] | SCREW,M16 x 2 x 150mm | KOBM16x2.0x150mm |
| 22. | ZS13C10070 | [8] | SCREW | KOBM10x1.50x70mm Superseded by part number: ZS18C10070 |
| 23. | 2420T4330D10 | [1] | SCREW,M16 x 2 x 140mm | KOBM16x2.0x140mm Superseded by part number: ZS18C16140 |
| 24. | ZS13C10055 | [1] | SCREW | KOBM10x1.50x55mm Superseded by part number: ZS18C10055 |
| 25. | ZN13C16013 | [8] | NUT | KOBM16x2.0mm |
| 26. | 2419T6002D1 | [2] | PIN,16mm OD x 115mm L | KOBOD 16 x 115mm Long |
| 27. | ZW22X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 28. | 2432T1187 | [1] | CLAMP | KOB Superseded by part number: YN43H01097P1 |
| 29. | 2418T19206D1 | [2] | RING | KOB |
| 30. | B16T0442D1 | [1] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOBID 72 x OD 130 x Th 1.2mm |
| 31. | B16T0442D2 | [1] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| 32. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOBID 72 x OD 130 x Th 2.3mm |
| 33. | B16T0442D3 | [2] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 34. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 35. | B16T0442D6 | [2] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
| 36. | B16T0442D13 | [1] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 37. | B16T0442D14 | [1] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 38. | B16T0442D15 | [1] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| 39. | NSS | [1] | NOT SOLD SEPARAT | CONREWORK, REMOTE-CONTROL, SEE FIGURE 03-003 |
| 40. | 2411J4244F1 | [1] | ARM | ARM |
| 40-25. | 2405T1293 | [2] | BUSHING | KOB |
| 40-26. | B05T0041C2 | [2] | BUSHING | KOB |
| 40-27. | 2405T1332 | [2] | BUSHING | KOB |
