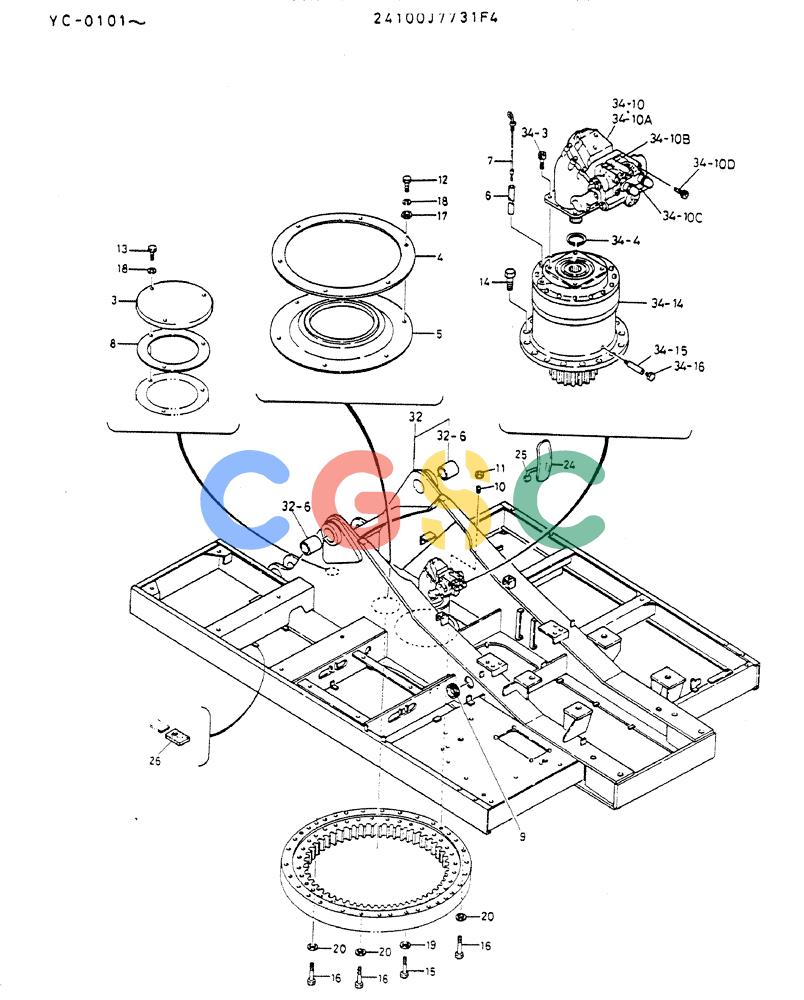

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (01-001) - FRAME ASSY, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7731F4 | [1] | FRAME ASSY, UPP | |
| 3. | 2414T1412 | [1] | COVER | KOB |
| 4. | 2414T2341 | [1] | COVER | KOB Superseded by part number: YN52F01158P1 |
| 5. | 2414Z234 | [1] | COVER | KOB |
| 6. | 2420T4039C2D8 | [1] | PIPE | KOB |
| 7. | 2420R561D2 | [1] | LEVEL GAUGE | KOB |
| 8. | R45T0005 | [1] | GASKET | KOB |
| 9. | 2420T4986 | [1] | GROMMET | |
| 10. | 2420T3998D2 | [1] | SET OF SCREWS | KOB |
| 11. | ZN18C22018 | [1] | NUT | KOBM22x2.5mm |
| 12. | ZS18C10025 | [6] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 13. | ZS18C10014 | [3] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 14. | 2420Z1626 | [16] | SCREW | KOB |
| 15. | 2420Z1624 | [31] | SCREW | KOB |
| 16. | 2420Z1625 | [3] | SCREW | KOB |
| 17. | 2418T5373C2 | [6] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 18. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 19. | ZW16H22000 | [31] | WASHER | KOBID 23 x OD 44 x Th 6.0mm |
| 20. | ZW16H24000 | [3] | WASHER | KOBID 25 x OD 48 x Th 6.0mm |
| 24. | 2456Z253 | [1] | MIRROR | KOB |
| 25. | 2406P2568 | [1] | STAY | KOB |
| 26. | 2420T3483 | [12] | GROMMET | KOB |
| 32. | 2422J1811F1 | [1] | FRAME, UPP | |
| 32-6. | 2405T1253 | [2] | BUSHING | KOB |
| 34. | 24100J6740F5 | [1] | MOTOR ASSY | |
| 34-3. | ZS23C16040 | [4] | CAPSCREW,Hex Socket Head, M16 x 40mm | KOBSCREW M16x2.0x40mm |
| 34-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 34-10. | 2441U683F1 | [1] | HYDRAULIC MOTOR | KOB |
| 34-10A. | 2441U682F1 | [1] | MOTOR, HYDR | MOTOR, HYDR |
| 34-10B. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 34-10C. | 2436U1745F1 | [1] | CONTROL VALVE | KOB |
| 34-10D. | ZS23C12110 | [8] | SCREW,Hex Socket Head, M12 x 110mm | KOBM12x1.75x110mm Superseded by part number: ZS28C12110 |
| 34-14. | 24100J6739F3 | [1] | REDUCTION UNIT SEE FIGURE 01-003 | REDUCTION UNIT SEE FIGURE 01-003 |
| 34-15. | 2418T17425 | [1] | PIPE | PIPE |
| 34-16. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
