神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (01-002) - COUNTER-WEIGHT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
322 次

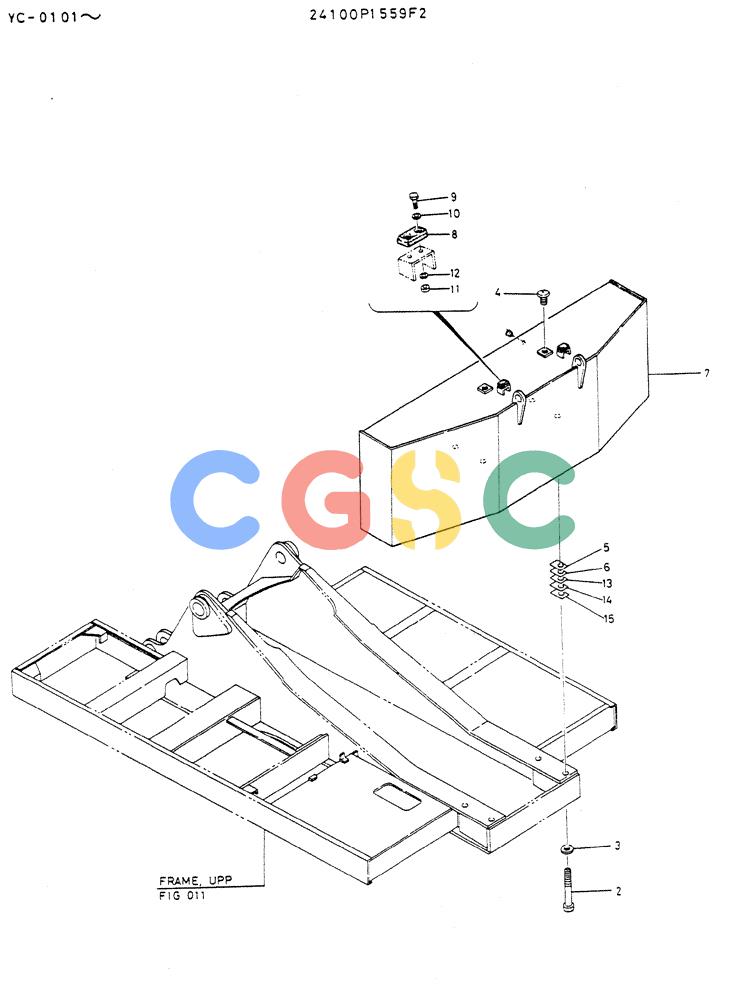

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1559F2 | [1] | COUNTER-WEIGHT ASSY | |
| 2. | R20P0021D16 | [4] | CAPSCREW | CAPSCREW |
| 3. | R16T0152D6 | [4] | WASHER | KOBFlat -- ID 37 x OD 66 x Th 6.0mm |
| 4. | 2420Z1085 | [2] | PLUG | KOB |
| 5. | 2420T6013D1 | [14] | SHIM | KOB130x80x0.4mm |
| 6. | 2420T6013D5 | [2] | SHIM | KOB130x80x3.2mm |
| 7. | 2422J2187 | [1] | WEIGHT | |
| 8. | 2416T9172 | [2] | CUSHION | KOB |
| 9. | ZS18C06025 | [4] | SCREW,Hex, M6 x 25mm | KOBM06x1.0x25mm |
| 10. | 2418T12062 | [4] | WASHER | |
| 11. | ZN31C06005 | [4] | NUT | KOB |
| 12. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 13. | 2420T6013D6 | [2] | SHIM | KOB130x80x4.5mm |
| 14. | 2420T6013D4 | [2] | SHIM | KOB130x80x2.3mm |
| 15. | 2420T6013D3 | [2] | SHIM | KOB130x80x1.6mm |
