神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (02-004) - PLATE ASSY, FLOOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
144 次

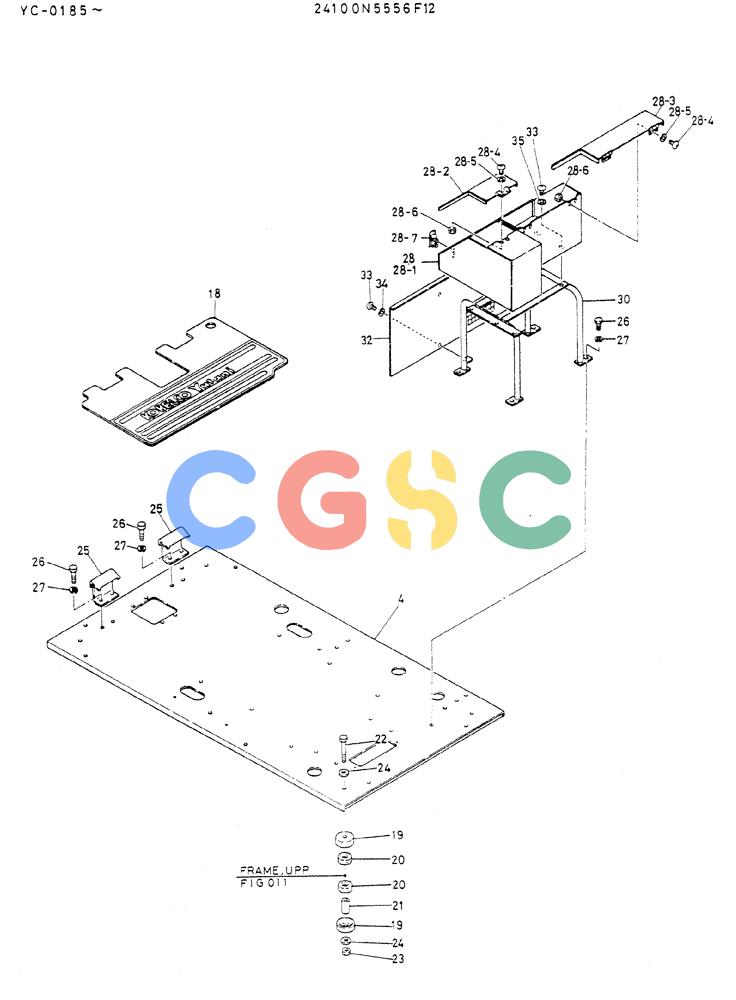

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5556F12 | [1] | PLATE ASSY, FLOOR | |
| 4. | 2418N2867D2 | [1] | PLATE, FLOOR | |
| 18. | 2427J1295D3 | [1] | FLOOR MAT | KOB |
| 19. | 2414T2855 | [12] | COVER | KOB |
| 20. | 2416Z539 | [12] | RUBBER SLEEVE | KOB |
| 21. | 2418T9226D7 | [6] | SPACER | KOB |
| 22. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 23. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 24. | ZW16H16000 | [12] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 25. | 2422T483 | [2] | STEP | STEP |
| 26. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 27. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 28. | 24100P1137F1 | [1] | BOX ASSY | BOX ASSY |
| 28-1. | 2414N1952 | [1] | BOX | BOX |
| 28-2. | 2414P3968 | [1] | COVER | COVER |
| 28-3. | 2414P3969 | [1] | COVER | COVER |
| 28-4. | ZS31C05010 | [6] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 28-5. | ZW26X05000 | [6] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 28-6. | ZN18C05004 | [6] | NUT | KOBM05x0.8mm |
| 28-7. | 2421Z295 | [2] | LOCK | KOB |
| 30. | 2416N3251 | [1] | STAND | STAND |
| 32. | 2414P3977 | [1] | COVER | COVER |
| 33. | ZS31C06012 | [9] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 34. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 35. | ZW16X06000 | [5] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
