神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (02-005) - SEAT ASSY 24100N2977F8 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
676 次

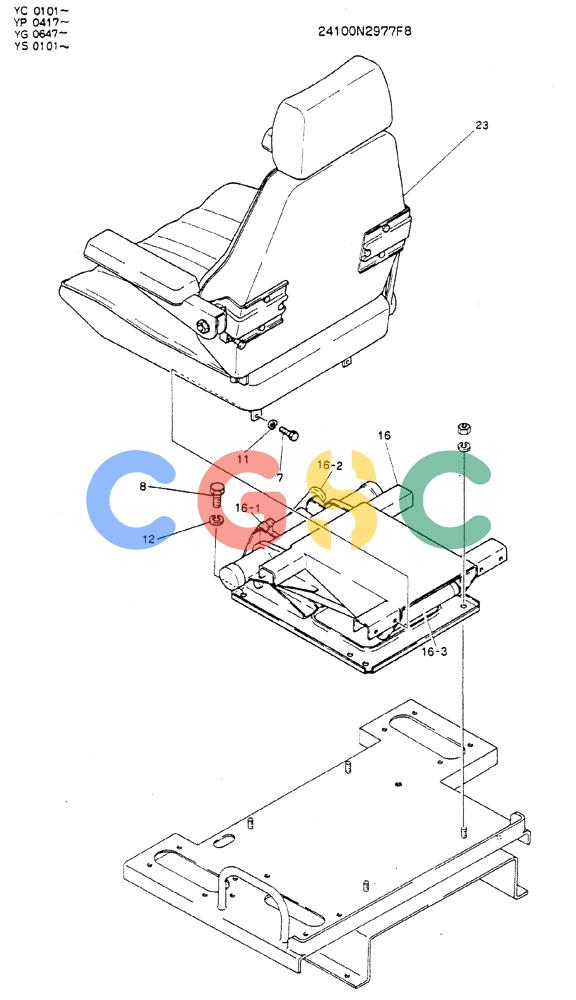

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2977F8 | [1] | SEAT ASSY | |
| 7. | ZS18C08016 | [8] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 8. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 11. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 12. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 16. | 2448U234 | [1] | SUSPENSION | SUSPENSION |
| 16-1. | 2448U234S1 | [1] | KNOB | KNOB |
| 16-2. | 2448U234S2 | [1] | HANDLE | KOB |
| 16-3. | 2448U234S3 | [1] | DAMPER | KOBDUMPER |
| 23. | 24100U342F2 | [1] | SEAT | KOBSEE FIGURE 02-006 |
