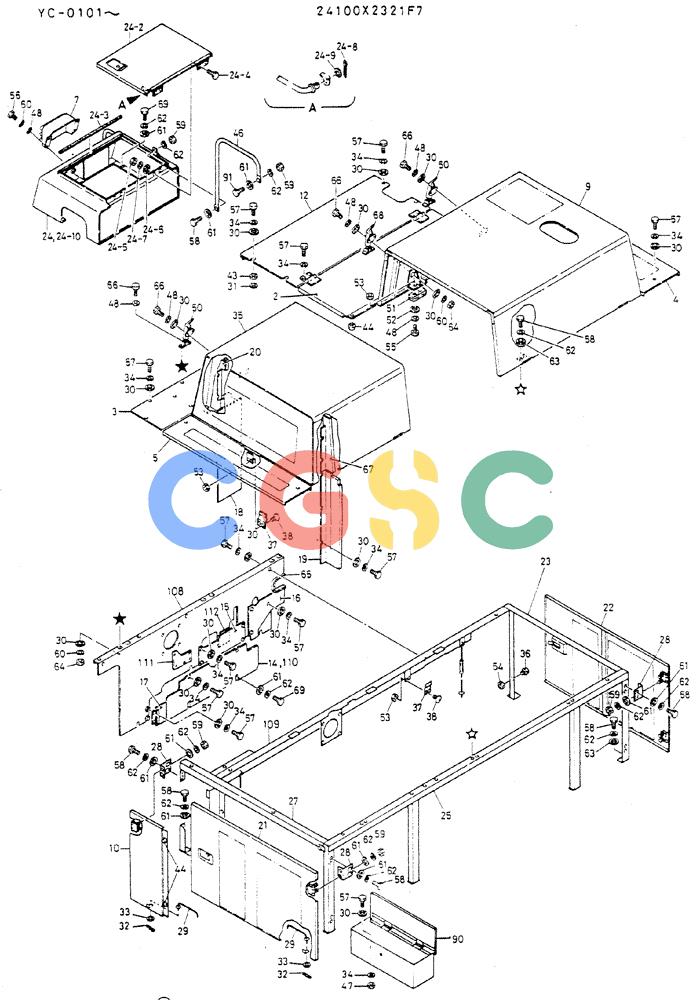

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (02-007) - GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
662 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X2321F7 | [1] | GUARD ASSY | |
| 2. | 2414N2159 | [1] | COVER | |
| 3. | 2414P4717 | [1] | COVER | |
| 4. | 2414P4525 | [1] | COVER | COVER |
| 5. | 2414P4721 | [1] | COVER | COVER |
| 7. | 2414P3893 | [1] | COVER | KOB |
| 9. | 2414P4722 | [1] | COVER | COVER |
| 10. | 2414N2845 | [1] | COVER | COVER |
| 12. | 2414N2698 | [1] | COVER | |
| 16. | 2414T3214 | [1] | COVER | |
| 17. | 2414T3213 | [1] | COVER | |
| 18. | 2414P4723 | [1] | COVER | |
| 19. | 2414P4724 | [1] | COVER | |
| 20. | 2414T3308 | [1] | COVER | |
| 21. | 2414P5185 | [1] | COVER | KOB |
| 22. | 2414P5186 | [1] | COVER | KOB |
| 23. | 2416N3929 | [1] | BRACKET | |
| 24. | 24100N3946F1 | [1] | COVER, BATTERY | COVER, BATTERY |
| 24-2. | 2414P3909 | [1] | COVER | KOB |
| 24-3. | 2416Z454 | [1] | RUBBER CUSHION | |
| 24-4. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 24-5. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 24-6. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 24-7. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 24-8. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 24-9. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 24-10. | 2421N119 | [1] | BOX | KOB |
| 25. | 2416J1096 | [1] | BRACKET | BRACKET |
| 27. | 2416N4233 | [1] | BRACKET | BRACKET |
| 28. | 2416T14838 | [6] | BRACKET | BRACKET |
| 29. | 2416T6289D2 | [3] | STAY | KOB |
| 30. | 2418T5373C2 | [64] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 31. | 2416T6915 | [2] | RUBBER | |
| 32. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 33. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | ZW26X10000 | [58] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 35. | 2414X356 | [1] | COVER | COVER |
| 36. | 2416T6682 | [2] | RUBBER BAND | KOBCUSHION |
| 37. | B16T0530 | [2] | CLIP | CLIP |
| 38. | ZS31C06014 | [4] | SCREW,Phillips Drive, Pan HD, M6 x 14mm | KOBM06x1.0x14mm |
| 43. | 2418T6682 | [2] | SPACER | |
| 44. | 2416T8283 | [7] | RUBBER SLEEVE | KOB |
| 46. | 2416T12935 | [1] | RIGID TUBE | KOB |
| 47. | ZN18C10008 | [2] | NUT | KOBM10x1.50mm |
| 48. | ZW16X08000 | [28] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 50. | 2427R302D2 | [2] | CATCH | KOBCATCH |
| 51. | 2416T9172 | [3] | CUSHION | KOB |
| 52. | ZW16X06000 | [6] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 53. | ZN31C06005 | [10] | NUT | KOB |
| 54. | ZN31C05005 | [2] | NUT | KOB |
| 55. | ZS18C06030 | [6] | SCREW,Hex, M6 x 30mm | KOBM06x1.0x30mm |
| 56. | ZS18C08016 | [4] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 57. | ZS18C10025 | [58] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 58. | ZS18C12030 | [28] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 59. | ZN18C12010 | [14] | NUT | KOBM12x1.75mm |
| 60. | ZW26X08000 | [16] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 61. | 2418T10357 | [33] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 62. | ZW26X12000 | [47] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 63. | ZW16H12000 | [14] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 64. | ZN18C08007 | [12] | NUT | KOBM08x1.25mm |
| 65. | 2416Z218D18 | [1] | RUBBER | |
| 66. | ZS18C08025 | [12] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 67. | 2414T3314 | [1] | COVER | |
| 68. | 2427R475 | [1] | CATCH | KOBLOCK Superseded by part number: YN21C02226P1 |
| 69. | ZS18C12025 | [8] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 90. | 24100P1564F1 | [1] | BOX ASSY, TOOL SEE FIGURE 02-008 | BOX ASSY, TOOL SEE FIGURE 02-008 |
| 91. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 108. | 2414N3922 | [1] | COVER | |
| 109. | 2416J829 | [1] | BRACKET | |
| 110. | 2414T2877 | [1] | COVER | |
| 111. | 2414T2875 | [1] | COVER | |
| 112. | 2414T2876 | [1] | COVER | |
