神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (02-008) - BOX ASSY, TOOL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
591 次

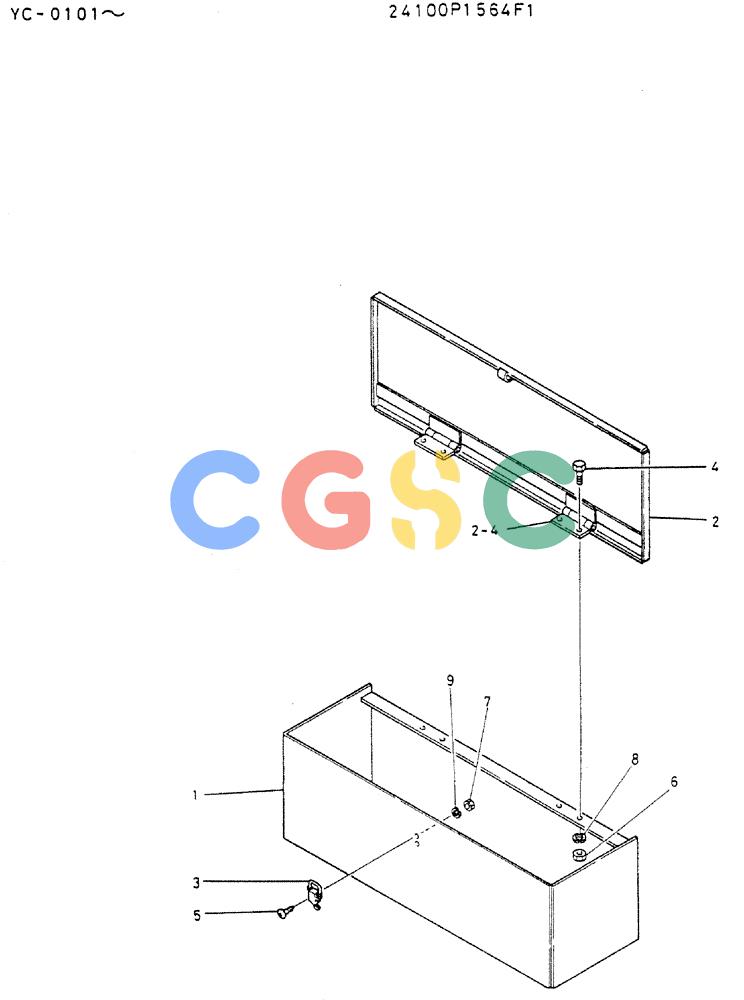

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1564F1 | [1] | BOX ASSY, TOOL | BOX ASSY, TOOL |
| 1. | 2427P2492 | [1] | CAM | CAM |
| 2. | 2414P4756 | [1] | COVER | COVER |
| 2-4. | 2420T4255 | [2] | HINGE | KOB |
| 3. | 2432Z451 | [1] | CATCH | KOB |
| 4. | ZS16C08016 | [4] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 5. | ZS31C03008 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 8mm | KOBM03x0.5x08mm |
| 6. | ZN16C08007 | [4] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 7. | ZN11C03003 | [2] | NUT | KOBM03x0.5mm |
| 8. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 9. | ZW26X03000 | [2] | LOCK WASHER | HIT |
