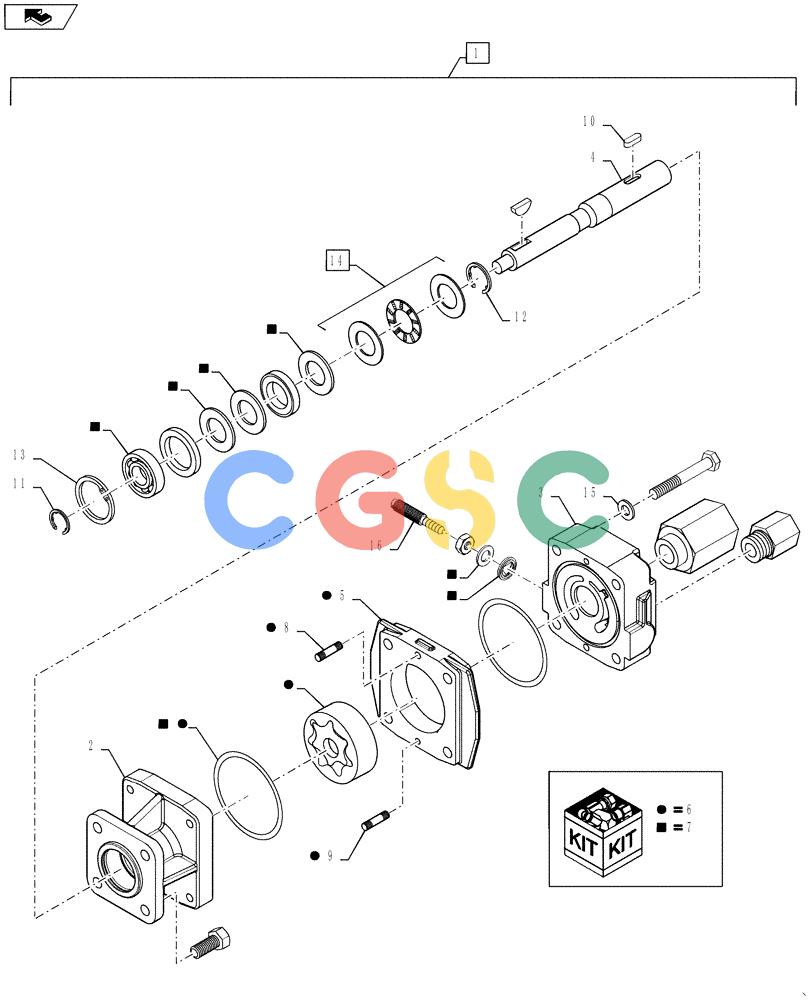

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (78.110.13.AB) - PRODUCT PUMP MOTOR, HM1 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
377 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84347727
|
[1] |
HYDRAULIC MOTOR
|
BN
HM1, Product Pump, Complete, Includes Ref 2 - 16
|
| 2. |
84364089
|
[1] |
BODY
|
BN
Front
|
| 3. |
84364090
|
[1] |
END PLATE
|
BN
|
| 4. |
84187261
|
[1] |
SHAFT
|
CUR
Shaft
|
| 5. |
9577
|
[1] |
HOUSING
|
SAS
Gerotor Housing HM1
|
| 6. |
BN53769
|
[1] |
REPAIR KIT
|
BN
Gerotor Kit
|
| 7. |
84325648
|
[1] |
SEAL KIT
|
BN
Product Pump Motor
|
| 8. |
84270023
|
[1] |
PIN
|
BN
|
| 9. |
84270022
|
[1] |
PIN
|
BN
|
| 10. |
84174347
|
[1] |
PIN
|
CUR
Round Key Superseded by part number: 6060
|
| 11. |
6057
|
[1] |
SNAP RING
|
SAS
Superseded by part number: 129345
|
| 12. |
87578620
|
[1] |
SNAP RING
|
SAS
|
| 13. |
BN98259
|
[1] |
RING
|
BN
Internal Retaining Ring Superseded by part number: 86629584
|
| 14. |
87577677
|
[1] |
BEARING ASSY
|
SAS
|
| 15. |
84270031
|
[4] |
WASHER
|
BN
Flat 5/16"
|
| 16. |
87577683
|
[1] |
VALVE STEM
|
SAS
Valve Stem
|
