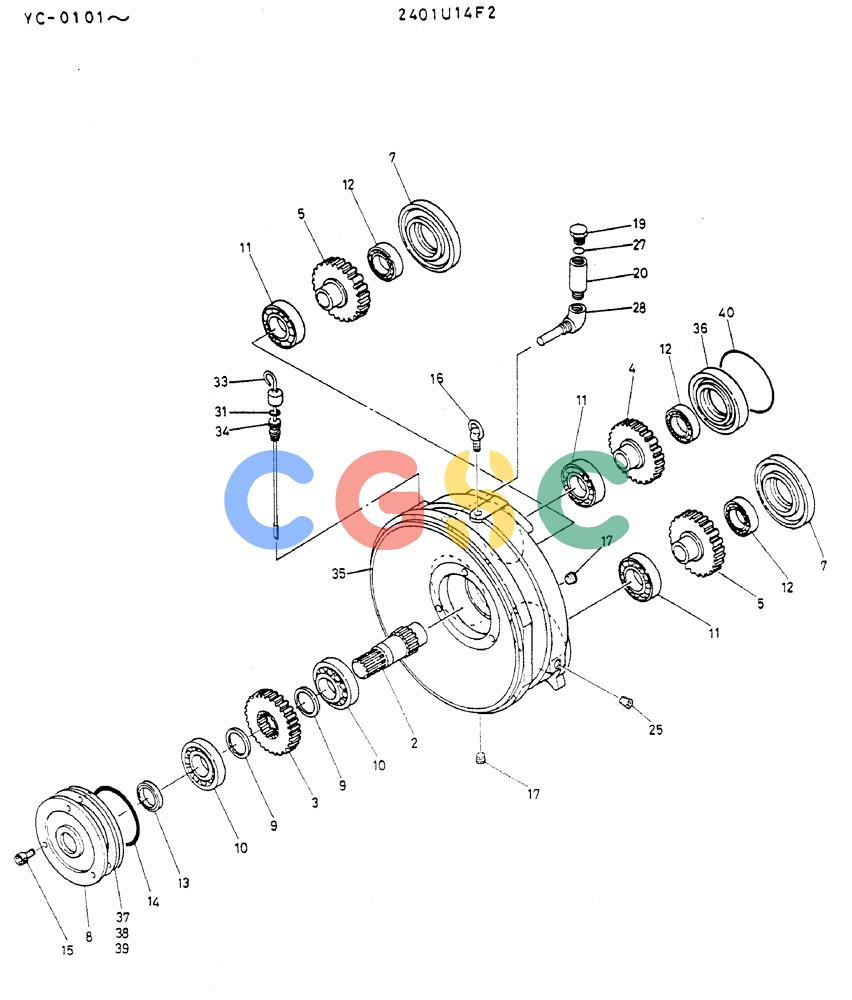

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (05-007) - POWER-DIVIDER (2401U14F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2401U14F2 | [1] | DIVIDER | KOB |
| 2. | 2401U6S2 | [1] | SHAFT | KOB |
| 3. | 2401U6S3 | [1] | DRIVEN GEAR | KOB |
| 4. | 2401U6S4 | [1] | GEAR | KOB |
| 5. | 2401U6S5 | [2] | GEAR | KOB |
| 7. | 2401U6S7 | [2] | CASE | KOB |
| 8. | 2401U6S8 | [1] | CASE | KOB |
| 9. | 2401U6S9 | [2] | SHIM | KOB |
| 10. | 2401U6S10 | [2] | BEARING ASSY | KOBROLLER Superseded by part number: 86509784 |
| 11. | 2401U6S11 | [3] | BALL BEARING | KOB Superseded by part number: 25T819D10 |
| 12. | 2401U6S12 | [3] | BEARING ASSY | KOB Superseded by part number: 25T816D9 |
| 13. | 2401U6S13 | [1] | OIL SEAL | KOB Superseded by part number: 2418Z884D1 |
| 14. | ZD12G17000 | [1] | O-RING,169.30mm ID x 180.70mm OD x 5.70mm | KOB |
| 15. | ZS23C10025 | [3] | SCREW,Hex Socket Head, M10 x 25mm | KOB Superseded by part number: ZS28C10025 |
| 16. | 2401U6S16 | [1] | EYEBOLT | KOB |
| 17. | ZE82T08000 | [2] | PLUG | KOB1/2" PT |
| 19. | 2401U6S23 | [1] | BREATHER | KOB |
| 20. | 2401U6S20 | [1] | PIPE | KOB |
| 25. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 27. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 28. | 2401U14S28 | [1] | SLEEVE | KOBPIPE |
| 31. | 2401U14S31 | [1] | O-RING | KOB |
| 33. | 2401U14S33 | [1] | PORTABLE LAMP | KOB |
| 34. | 2401U14S34 | [1] | HOLDER | KOB |
| 35. | 2401U14S35 | [1] | CASE | KOBGEAR |
| 36. | 2401U14S36 | [1] | CASE | KOBBEARING |
| 37. | 2401U14S37 | [1] | SHIM | KOB |
| 38. | 2401U14S38 | [1] | SHIM | KOB Superseded by part number: 2453U305S16 |
| 39. | 2401U14S39 | [1] | SHIM | KOB |
| 40. | 2441U722S750 | [1] | O-RING | KOB Superseded by part number: 2441U716S750 |
