神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (05-006) - PUMP ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
488 次

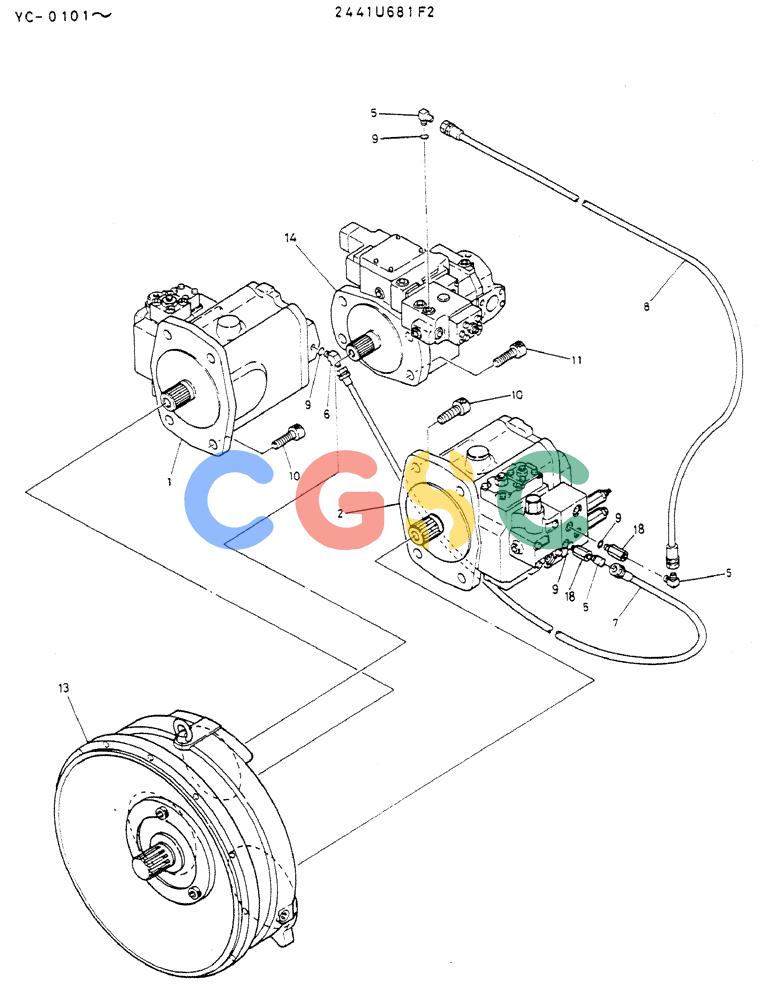

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U681F2 | [1] | PUMP ASSY | |
| 1. | 2441U716F1 | [1] | PUMP | KOBNO. 1 |
| 2. | 2441U716F2 | [1] | PUMP | KOBASSY NO.2 |
| 5. | 2441U681S5 | [3] | LUBE NIPPLE | KOB |
| 6. | 2441U681S6 | [1] | LUBE NIPPLE | KOB |
| 7. | 2441U681S7 | [1] | HOSE | KOB |
| 8. | 2441U681S8 | [1] | HOSE | KOB |
| 9. | ZD12P01100 | [4] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 10. | ZS23C20045 | [8] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 11. | ZS23C200040 | [4] | CAPSCREW | |
| 13. | 2401U14F2 | [1] | DIVIDER | KOBSEE FIGURE 05-007 |
| 14. | 2441U717F2 | [1] | PUMP | KOBNO. 3 |
| 18. | 2441U681S18 | [2] | ADAPTER | KOB, Start Serial: YC-0153 |
| 100. | 2441R67F1 | [1] | REPAIR KlT, Start Serial: YC-0200 | |
| 100-1. | 2401U14S40 | [3] | O-RING | KOB, Start Serial: YC-0200 Superseded by part number: 2441U716S750 |
| 100-2. | 2401U14S41 | [1] | SPARE PART | HIT, Start Serial: YC-0200 Superseded by part number: ZD12G17000 |
