神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (06-005) - SPRING ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
512 次

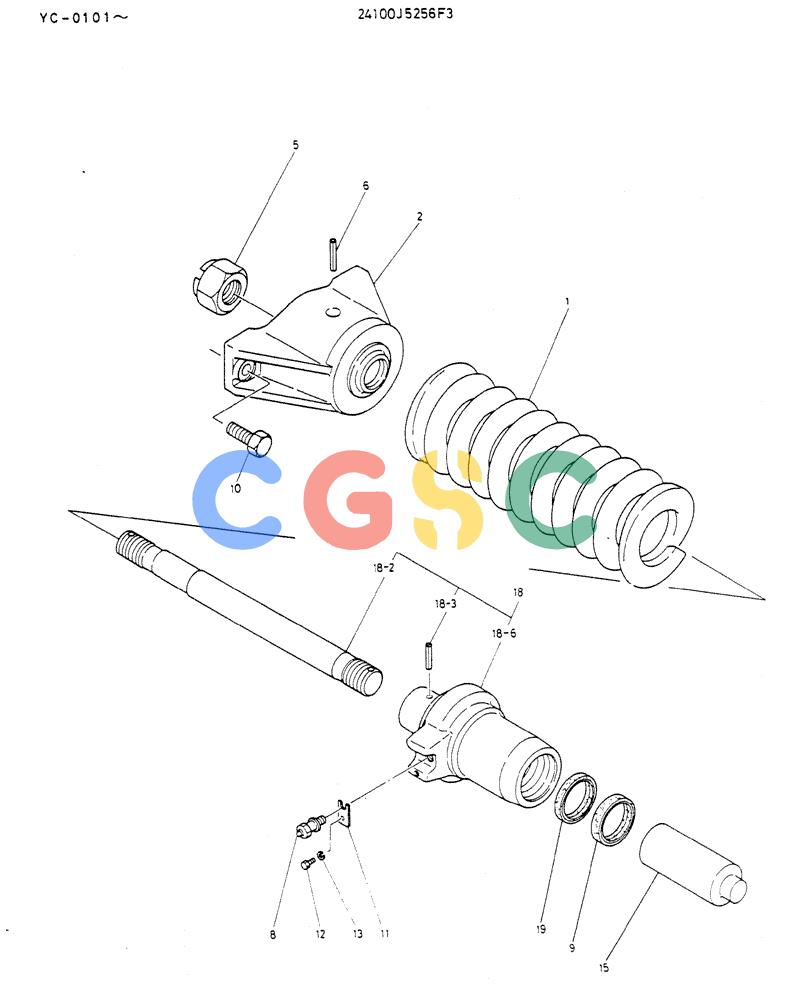

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5256F3 | [1] | TRACK LINK | KOB |
| 1. | 2417P219 | [1] | SPRING | KOB |
| 2. | 2416N2848 | [1] | BRACKET | BRACKET |
| 5. | 2420T4849 | [1] | NUT | KOB |
| 6. | ZP26D08070 | [1] | ROLL PIN | KOB |
| 8. | 2444R663 | [1] | FITTING | KOB |
| 9. | R45T0009D5 | [1] | SEAL | KOB |
| 10. | ZS13C24060 | [2] | SCREW | KOBM24x3.0x60mm |
| 11. | 2418T7294 | [1] | PLATE | KOB |
| 12. | ZS12C08020 | [1] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm Superseded by part number: ZS18C08020 |
| 13. | ZW22X08000 | [1] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 15. | 2439P153 | [1] | PISTON | KOB |
| 18. | 2438P168F4 | [1] | CYLINDER, GREASE | CYLINDER, GREASE |
| 18-2. | 2420T4850 | [1] | ROD | KOB |
| 18-3. | ZP26D08056 | [1] | ROLL PIN | KOB |
| 18-6. | 2438P181 | [1] | CYLINDER, GREASE | CYLINDER, GREASE |
| 19. | 2445Z1034 | [1] | GASKET,90mm ID x 105mm OD x 10mm Thk | KOB |
