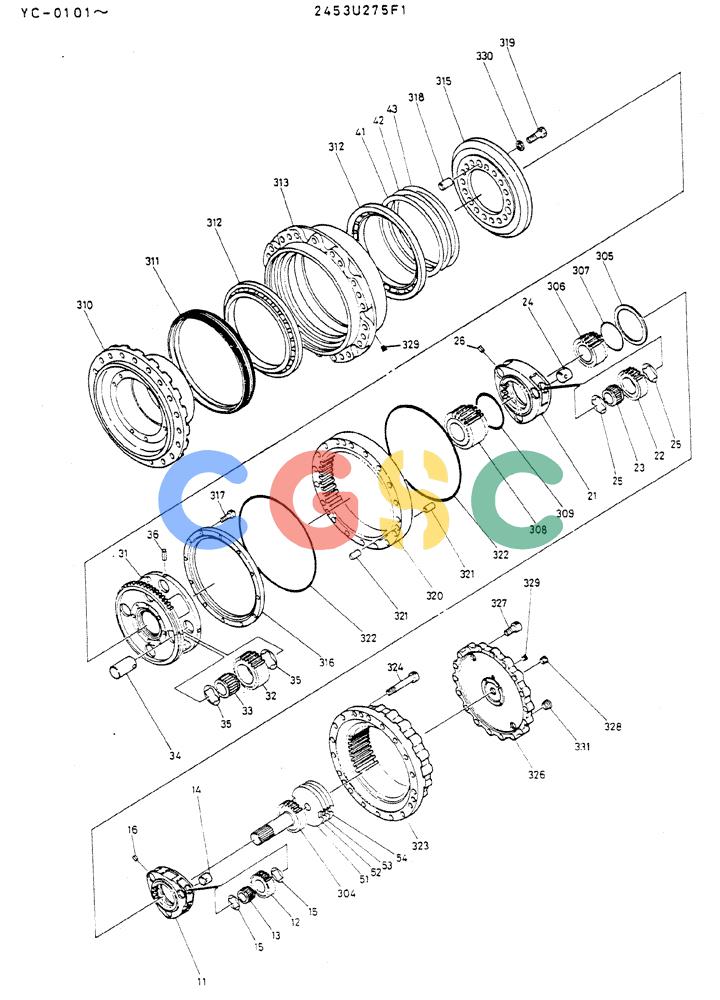

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (06-006) - REDUCTION UNIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
640 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2453U275F1 | [1] | HYDRAULIC MOTOR | KOB |
| 11. | 2453U275S11 | [1] | HOLDER | KOB |
| 12. | 2453U275S12 | [3] | GEAR | KOB |
| 13. | 2453U275S13 | [3] | BEARING | KOB |
| 14. | 2453U275S14 | [3] | SHAFT | KOB |
| 15. | 2453U275S15 | [6] | THRUST WASHER | KOB |
| 16. | ZP26D05020 | [3] | PIN | KOBSpring |
| 21. | 2453U275S21 | [1] | HOLDER | KOB |
| 22. | 2453U275S22 | [3] | GEAR | KOB |
| 23. | 2453U275S23 | [3] | BEARING | KOB |
| 24. | 2453U275S24 | [3] | SHAFT | KOB |
| 25. | 2453U275S25 | [6] | WASHER | KOB |
| 26. | ZP26D05020 | [3] | PIN | KOBSpring |
| 31. | 2453U275S31 | [1] | HOLDER | KOB |
| 32. | 2453U275S32 | [4] | GEAR | KOB |
| 33. | 2453U275S33 | [4] | BEARING | KOB |
| 34. | 2453U275S34 | [4] | SHAFT | KOB |
| 35. | 2453U275S35 | [8] | THRUST WASHER | KOB |
| 36. | ZP26D06028 | [4] | PIN | KOBSpring |
| 41. | 2453U275S41 | [1] | SHIM | KOB |
| 42. | 2453U275S42 | [1] | SHIM | SHIM |
| 43. | 2453U275S43 | [1] | SHIM | KOB |
| 51. | 2453U275S51 | [1] | THRUST PLATE | KOB |
| 52. | 2453U275S52 | [1] | THRUST PLATE | KOB |
| 53. | 2453U275S53 | [1] | THRUST PLATE | KOB |
| 54. | 2453U275S54 | [1] | PLATE, THRUST | PLATE, THRUST |
| 304. | 2453U275S304 | [1] | DRIVEN GEAR | KOB |
| 305. | 2453U275S305 | [1] | THRUST PLATE | KOB |
| 306. | 2453U275S306 | [1] | GEAR, SUN | GEAR, SUN |
| 307. | 2453U275S307 | [1] | SNAP RING | KOB |
| 308. | 2453U275S308 | [1] | SUN GEAR | KOB |
| 309. | 2453U275S309 | [1] | SNAP RING | KOB |
| 310. | 2453U275S310 | [1] | FLANGE | |
| 311. | 2453U275S311 | [1] | SEAL | KOB Superseded by part number: ZD58F36637 |
| 312. | 2453U275S312 | [2] | BALL BEARING | KOB |
| 313. | 2453U275S313 | [1] | HOUSING | |
| 315. | 2453U275S315 | [1] | HOLDER | KOB |
| 316. | 2453U275S316 | [1] | PLATE, RETAINER | PLATE, RETAINER |
| 317. | ZS23C08020 | [12] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| 318. | 2453U275S318 | [3] | PIN | KOB |
| 319. | ZS13C20060 | [15] | SCREW | KOBM20x2.50x60mm |
| 320. | 2453U275S320 | [1] | RING GEAR | KOB |
| 321. | 2453U275S321 | [6] | PIN | KOB |
| 322. | 2453U275S322 | [2] | O-RING | KOB |
| 323. | 2453U275S323 | [1] | RING GEAR | KOB |
| 324. | ZS23C16110 | [18] | SCREW,Hex Socket Head, M16 x 110mm | KOBM16x2.0x110mm |
| 326. | 2453U275S326 | [1] | COVER | COVER |
| 327. | ZS23C12040 | [8] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 328. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 329. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 330. | 2453U275S330 | [15] | WASHER | WASHER |
| 331. | ZE82T12000 | [2] | PLUG | KOB3/4" PT |
