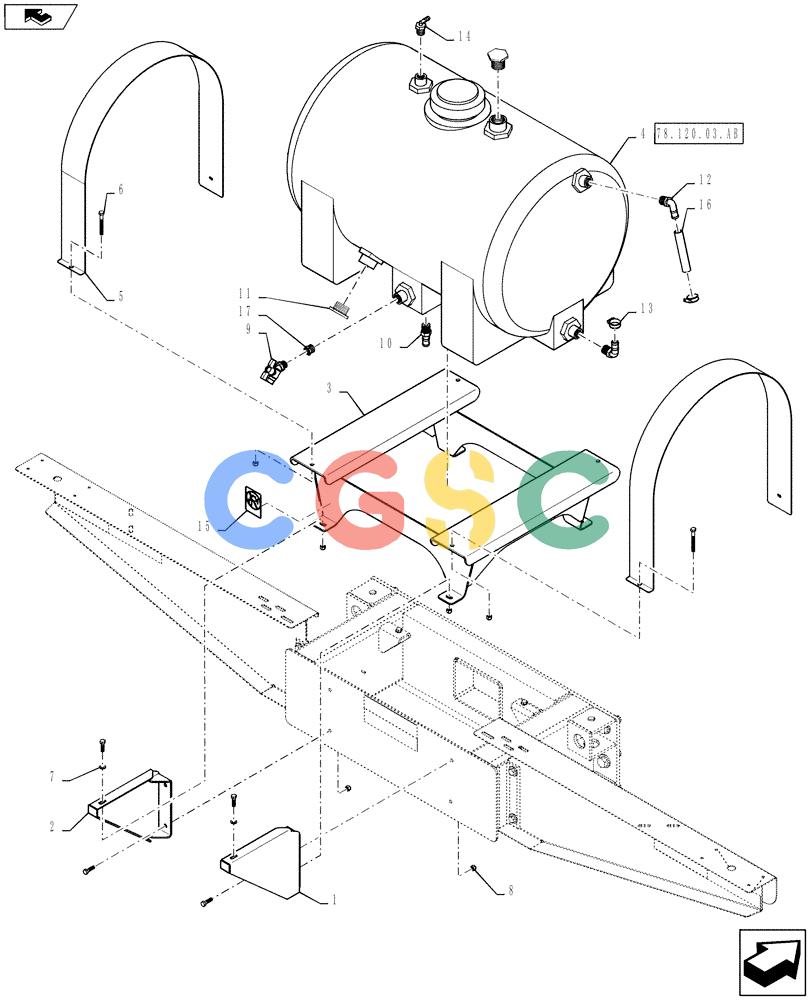

凯斯零件查询(810) - FLEX-AIR APPLICATOR - 2012 (2/12-) (78.120.03.AA) - PRESSURE WASHER WATER TANK MOUNTING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN320734
|
[1] |
SUPPORT
|
TYR
Pressure Washer, RH
|
| 2. |
BN320735
|
[1] |
SUPPORT
|
BN
Pressure Washer, LH
|
| 3. |
87593194
|
[1] |
SUPPORT
|
TYR
Tank Frame
|
| 4. |
86986818
|
[1] |
TANK
|
TYR
65 Gallon, Poly, Black
|
| 5. |
BN323943
|
[2] |
BAND
|
BN
Tank Mount
|
| 6. |
BN50258
|
[10] |
BOLT,3/8"-16 X 1.25", Stainless
|
BN
|
| 7. |
BN50146
|
[4] |
WASHER,3/8", Stainless
|
BN
|
| 8. |
BN50759
|
[12] |
LOCK NUT,3/8"-16, Nylon, Stainless
|
BN
|
| 9. |
BN53817
|
[1] |
DRAIN VALVE
|
BN
Ball, 1/2" NPT x Garden Hose Thread, Blue Handle
|
| 10. |
BN73561
|
[1] |
FITTING
|
BN
3/4" NPT x 3/4" Hose Barb, Poly Superseded by part number: 34306063
|
| 11. |
BN73655
|
[2] |
PLUG,1-1/4" Male NPT, Poly
|
BN
1-1/4 NPT, Poly
|
| 12. |
BN73562
|
[2] |
ELBOW,90 Degree Elbow, 3/4" Male NPT x 3/4" Hose Barb, Poly
|
BN
3/4" NPT x 3/4" Hose Barb, Poly Superseded by part number: 34306061
|
| 13. |
BN310446
|
[2] |
HOSE CLAMP
|
BN
#12, Stainless Steel
|
| 14. |
87265956
|
[1] |
FITTING,3/8" Hose Barb x 3/4" Male NPT, Poly
|
BN
3/8" Hose Barb X 3/4" NPT, Poly
|
| 15. |
87271146
|
[1] |
DECAL
|
BN
Do Not Drink
|
| 16. |
BN324754
|
[1] |
HOSE,0.75" ID x 18.00"
|
BN
|
| 17. |
BN73552
|
[1] |
SLEEVE
|
CUR
Bushing - 3/4" x 1/2" NPT
|
