神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-007) - PLATE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
643 次

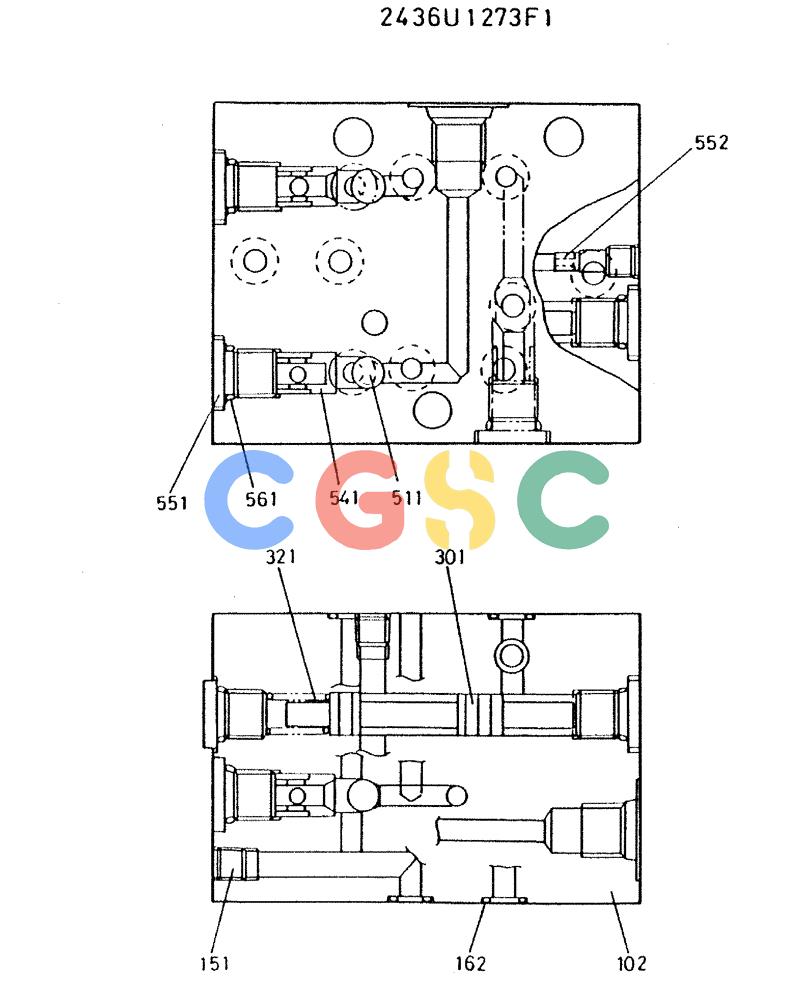

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1273F1 | [1] | PLATE ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 102. | 2436U1273S102 | [1] | CASING | |
| 151. | 2436U741S462 | [5] | PLUG | KOB |
| 162. | ZD12P00800 | [10] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 301. | 2436U1273S301 | [1] | SPOOL | |
| 321. | 2436U1207S322 | [1] | SPRING | KOB |
| 511. | 2483U172S19 | [3] | BALL | KOB |
| 541. | 2436U1273S541 | [3] | SEAT | |
| 551. | 2436U1807S251 | [5] | PLUG | PLUG |
| 552. | 2436U1273S552 | [1] | ORIFICE | |
| 561. | ZD12P01000 | [5] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
