神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-008) - COVER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
991 次

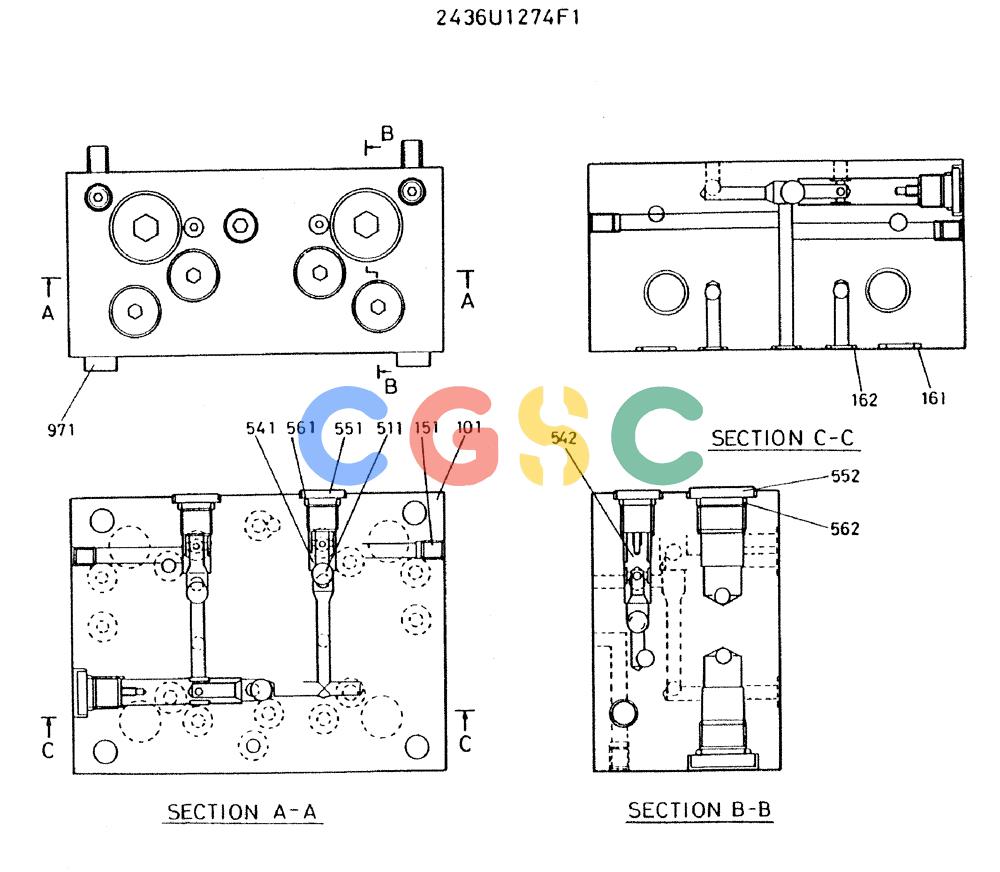

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1274F1 | [1] | COVER ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 101. | 2436U1274S101 | [1] | CASING | |
| 151. | 2436U741S462 | [22] | PLUG | KOB |
| 161. | ZD12P01100 | [4] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 162. | ZD12P00800 | [15] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 511. | 2483U172S19 | [6] | BALL | KOB |
| 541. | 2436U1273S541 | [2] | SEAT | |
| 542. | 2436U1274S542 | [2] | SEAT | |
| 543. | 2436U1272S542 | [2] | SEAT | |
| 551. | 2436U1807S251 | [6] | PLUG | PLUG |
| 552. | 2436U1832S651 | [4] | PLUG | KOBM18x1.5mm |
| 561. | ZD12P01000 | [6] | O-RING | KOBID 09.80 ± 0.17 x OD 13mm |
| 562. | ZD12P01600 | [4] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 971. | 2436U1274S971 | [4] | CAPSCREW | |
