神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-011) - VALVE ASSY 2436U1307F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
616 次

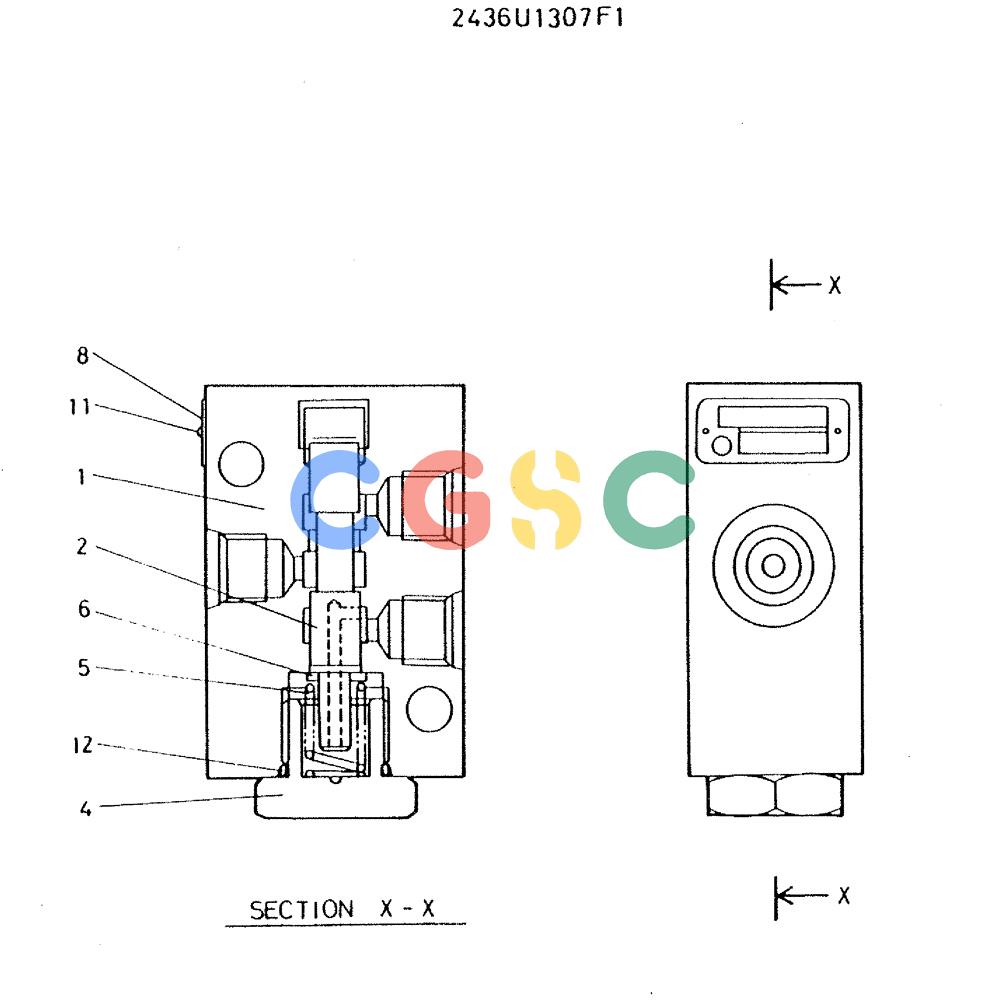

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1307F1 | [1] | VALVE ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 4. | 2436U1307S4 | [1] | PLUG | |
| 5. | 2436U1307S5 | [1] | SPRING | |
| 6. | 2436U1307S6 | [1] | RETAINER | |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| 11. | 2436U487S35 | [2] | SCREW, DRIVE | |
| 12. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| . . | 2436U1307R100 | [1] | REPAIR KIT, CONSISTS OF REF 1 & 2 | |
