神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-012) - VALVE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
634 次

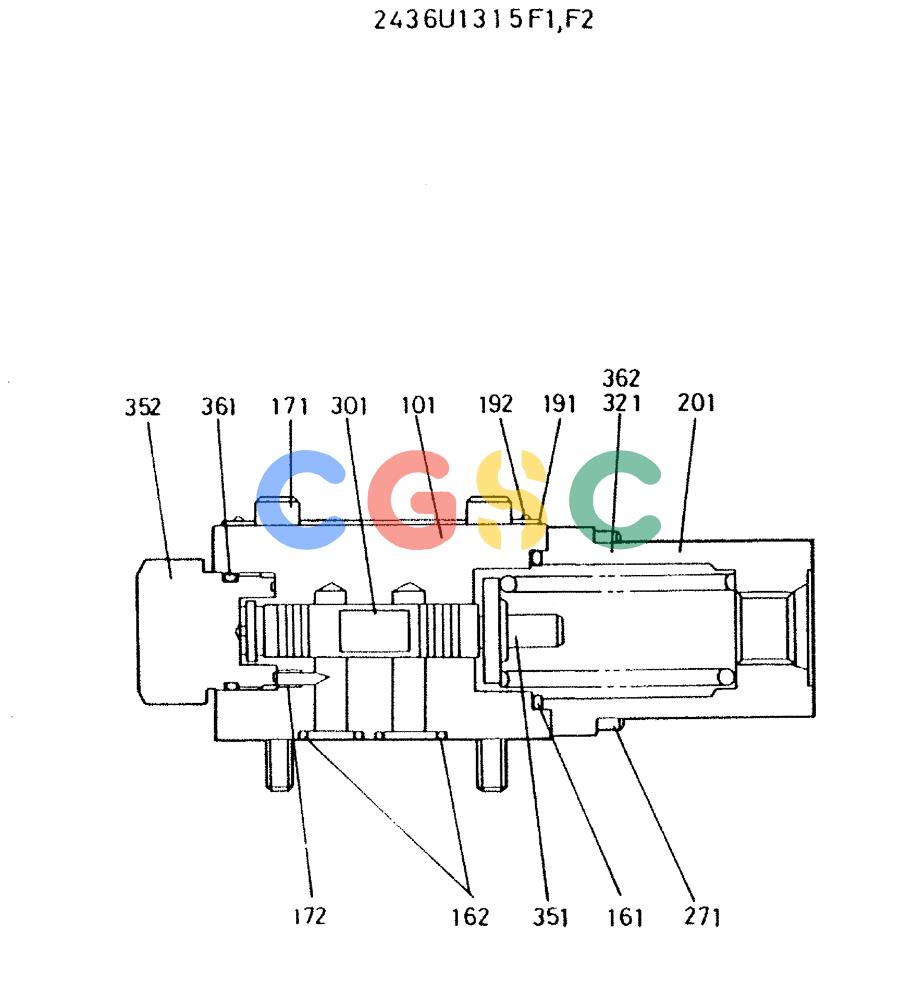

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436U1315F1 | [1] | VALVE ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2436U1315F2 | [1] | VALVE ASSY, CONSISTS OF THE FOLLOWING PARTS | VALVE ASSY, CONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 161. | ZD12G02500 | [1] | O-RING,24.40mm ID x 30.60mm OD x 3.10mm | KOBID 24.4 ± 0.25 x OD 30mm |
| 162. | 2436U1315S162 | [2] | O-RING | O-RING |
| 171. | ZS23C05050 | [4] | SCREW,Hex Socket Head, M5 x 50mm | KOBM05x0.8x50mm |
| 172. | 2436U1315S172 | [1] | ORIFICE | ORIFICE |
| 191. | 2436U1315S191 | [1] | NAME-PLATE | |
| 192. | 2436U1170S14 | [4] | PIN | KOBPIN |
| 201. | 2436U1315S201 | [1] | COVER | |
| 271. | ZS23C05016 | [4] | SCREW,Hex Socket Head, M5 x 16mm | KOBM05x0.8x16mm |
| 301. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 321. | 2436U1315S321 | [1] | SPRING, F1 ONLY | |
| 351. | 2436U1315S351 | [1] | SEAT, SPRING | |
| 352. | 2436U1315S352 | [1] | PLUG | |
| 361. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 362. | 2436U1315S362 | [1] | SPRING, F2 ONLY | |
| . . | 2436U1315R100 | [1] | REPAIR KIT, CONSISTS OF REF 101 & 301 | |
