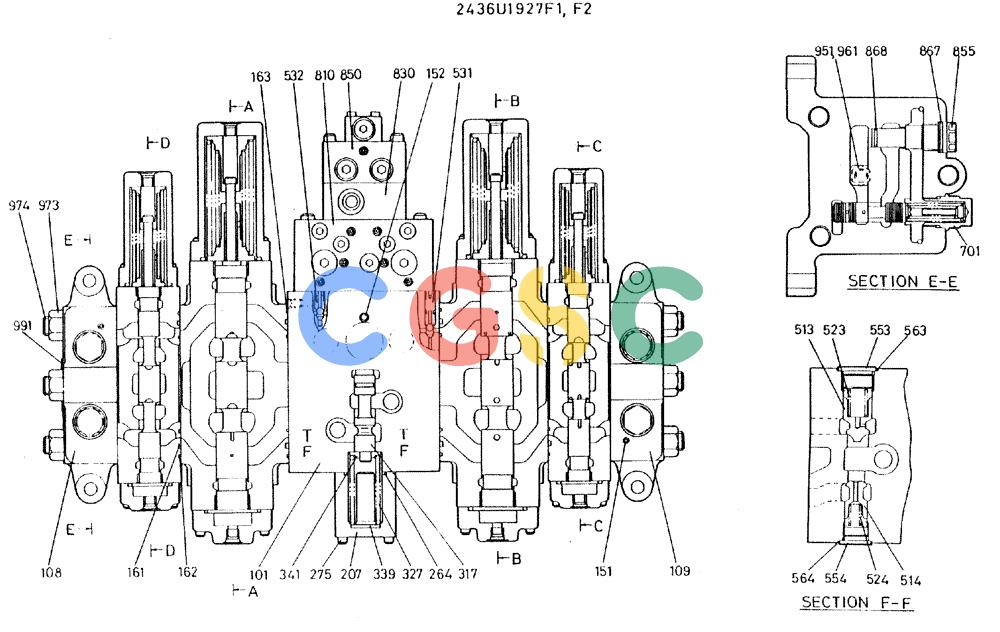

| . . | 2436U1927F1 | [1] | VALVE ASSY, CONTROL CONSISTS OF THE FOLLOWING PARTS | |
| . . | 2436U1927F2 | [1] | CONTROL VALVE | KOBASSY, CONSISTS OF THE FOLLOWING PARTS |
| 101. | NNS | [1] | CASING | |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 103. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 104. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 108. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 109. | NSS | [1] | NOT SOLD SEPARAT | CONCASING |
| 151. | NSS | [18] | NOT SOLD SEPARAT | CONPLUG |
| 152. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 161. | ZD12G11000 | [6] | O-RING,109.40mm ID x 115.60mm OD x 3.10mm | KOBID 109.4 ± 0.91 x OD 115mm |
| 162. | 2436U665S162 | [12] | O-RING | KOB Superseded by part number: 2436U1345S162 |
| 163. | ZD12P00600 | [4] | O-RING | KOBID 05.80 ± 0.15 x OD 09mm |
| 201. | NSS | [2] | NOT SOLD SEPARAT | CONCOVER, SPRING |
| 202. | NSS | [2] | NOT SOLD SEPARAT | CONCOVER, SPRING |
| 203. | 2436U1927S203 | [2] | COVER SPOOL | COVER SPOOL |
| 204. | 2436U1928S204 | [2] | COVER, SPOOL | |
| 207. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 261. | 2436U1744S261 | [4] | O-RING | KOB |
| 262. | 2436U665S262 | [4] | O-RING | KOB Superseded by part number: 2436U1457S162 |
| 263. | ZD12P01100 | [16] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 264. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 271. | ZS23C06025 | [32] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| 275. | ZS23C06070 | [4] | SCREW,Hex Socket Head, M6 x 70mm | KOBM06x1.0x70mm |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 313. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 316. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 317. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 319. | NSS | [2] | NOT SOLD SEPARAT | CONPOPPET |
| 321. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 322. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 323. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 325. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 327. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 329. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 331. | NSS | [4] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 332. | NSS | [2] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 333. | NSS | [2] | NOT SOLD SEPARAT | CONBOLT, SPACER |
| 334. | NSS | [2] | NOT SOLD SEPARAT | CONBOLT, SPACER |
| 337. | NSS | [2] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 339. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 341. | NSS | [1] | NOT SOLD SEPARAT | CONWASHER |
| 342. | NSS | [2] | NOT SOLD SEPARAT | CONSPACES |
| 359. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 360. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 501. | 24036R79F1 | [4] | CHECK VALVE | KOB |
| 502. | 24036R78F1 | [2] | VALVE | KOBCHECK |
| 512. | NSS | [2] | NOT SOLD SEPARAT | CONPOPPET |
| 513. | NSS | [2] | NOT SOLD SEPARAT | CONPOPPET |
| 514. | NSS | [2] | NOT SOLD SEPARAT | CONPOPPET |
| 515. | NSS | [4] | NOT SOLD SEPARAT | CONBALL |
| 522. | NNS | [2] | SPRING | |
| 523. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 524. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 531. | NSS | [2] | NOT SOLD SEPARAT | CONSEAT |
| 532. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 539. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 540. | NSS | [8] | NOT SOLD SEPARAT | CONORIFICE |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONSPACER |
| 552. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 553. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 554. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 562. | ZD12P02200 | [2] | O-RING | KOBID 21.80 ± 0.24 x OD 26mm |
| 563. | ZD12P02900 | [2] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 564. | ZD12P02400 | [2] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 602. | 24036R77F3 | [4] | VALVE PRESSURE RELIE | KOBPORT |
| 603. | 24036R76F6 | [2] | VALVE PRESSURE RELIE | KOBPORT |
| 604. | 2436U1281F2 | [2] | VALVE, RELIEF F2 ONLY | VALVE, RELIEF F2 ONLY |
| 701. | 2436U1275F1 | [1] | VALVE ASSY BY-PASS | VALVE ASSY BY-PASS |
| 810. | 2436U1274F1 | [1] | COVER, VALVE | |
| 830. | 2436U1273F1 | [1] | PLATE, VALVE | |
| 850. | 2436U1832F1 | [1] | VALVE ASSY INTER-LOCK | VALVE ASSY INTER-LOCK |
| 852. | 2436U1744S852 | [2] | PLUG | KOB |
| 853. | 2436U1927S853 | [4] | PLUG, BLIND | |
| 854. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 855. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG, BLIND |
| 861. | ZD12P02900 | [2] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 864. | ZD12P01500 | [4] | O-RING | KOBID 14.80 ± 0.20 x OD 19mm |
| 865. | ZD12P02000 | [4] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 866. | NSS | [1] | NOT SOLD SEPARAT | CONO-RING |
| 867. | NSS | [2] | NOT SOLD SEPARAT | CONO-RING |
| 868. | NSS | [2] | NOT SOLD SEPARAT | CONO-RING |
| 951. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 961. | NSS | [2] | NOT SOLD SEPARAT | CONO-RING |
| 973. | 2436U1744S973 | [6] | NUT | |
| 974. | 2436U1744S974 | [6] | BOLT, DOUBLE-NUT | |
| 991. | NSS | [1] | NOT SOLD SEPARAT | CONNAME-PLATE |
| . . | 2436U1927R100 | [1] | REPAIR KIT CONSISTS OF REF 101, 151, 152, 317, 513 - 515, 523, 524, 531, 532, 553, 554, 564 | REPAIR KIT CONSISTS OF REF 101, 151, 152, 317, 513 - 515, 523, 524, 531, 532, 553, 554, 564 |
| . . | 2436U1927R110 | [1] | REPAIR KIT CONSISTS OF REF 207, 264, 327, 339, 341 | REPAIR KIT CONSISTS OF REF 207, 264, 327, 339, 341 |
| . . | 2436U1927R120 | [1] | REPAIR KIT | KOBCONSISTS OF REF 102, 311, 319, 329, 359 |
| . . | 2436U1927R130 | [1] | REPAIR KIT | KOBCONSISTS OF REF 201, 321, 322, 331, 333 |
| . . | 2436U1927R140 | [1] | REPAIR KIT | KOBCONSISTS OF REF 103, 312, 319, 329, 360, 515 |
| . . | 2436U1927R150 | [1] | REPAIR KIT | KOBCONSISTS OF REF 104, 313, 512, 522, 562 |
| . . | 2436U1927R160 | [1] | REPAIR KIT | KOBCONSISTS OF REF 202, 323, 325, 332, 334 |
| . . | 2436U1927R170 | [1] | REPAIR KIT | KOBCONSISTS OF REF 202, 323, 325, 334, 337 |
