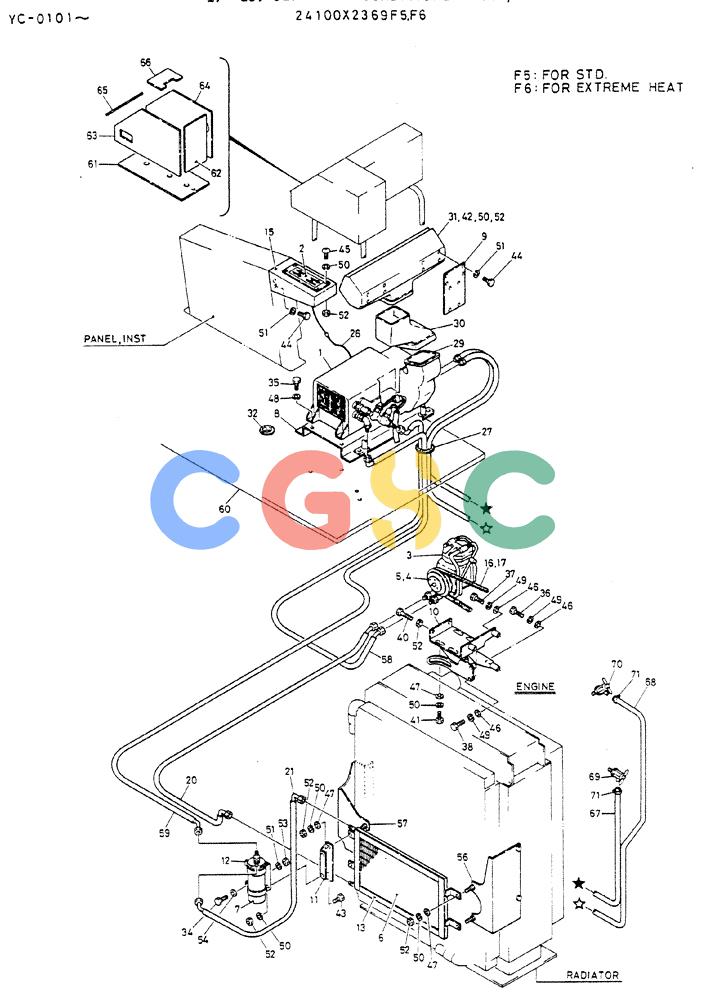

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-032[01]) - CONDITIONER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
605 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X2369F5 | [1] | CONDITIONER ASSY, AIR | |
| 1. | 24100U343F1 | [1] | UNIT ASSY, COOLING | |
| 2. | 24100U344F1 | [1] | MANIFOLD | KOB |
| 3. | 2450U213 | [1] | COMPRESSOR | COMPRESSOR |
| 4. | 2415U205 | [1] | CLUTCH | |
| 5. | 2418Z688 | [3] | SCREW | |
| 6. | 2484U164 | [1] | CONDENSER | CONDENSER |
| 7. | 2451R225 | [1] | TANK, RECEIVER | |
| 8. | 2416T13202 | [1] | BRACKET | |
| 9. | 2416T13201 | [2] | SUPPORT | |
| 10. | 2416N3754 | [1] | BRACKET | BRACKET |
| 11. | 2416T17698 | [1] | BRACKET | |
| 12. | 2416R232 | [1] | BRACKET | |
| 13. | 2416T10841 | [1] | BRACKET | |
| 15. | 2416P8642 | [1] | BOX | |
| 16. | R06P0004D5 | [1] | BELT | KOB |
| 20. | 2444R879 | [1] | HOSE | |
| 21. | 2444R881 | [1] | HOSE | |
| 25. | 2405Z147 | [6] | BUSHING | |
| 26. | NSS | [1] | NOT SOLD SEPARAT | CONHARNESS |
| 27. | 2420Z1189 | [1] | GROMMET | KOB |
| 28. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 29. | 2414Z275 | [1] | DUCT, AIR | |
| 30. | 2414Z274 | [1] | DUCT, AIR | |
| 31. | 2414Z273 | [1] | DUCT, AIR | |
| 32. | 2420Z1617 | [1] | PLUG | KOB |
| 34. | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 35. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 36. | ZS18C10070 | [1] | SCREW,Hex, M10 x 70mm | KOBM10x1.50x70mm |
| 37. | ZS18C10060 | [2] | SCREW,Hex, M10 x 60mm | KOBM10x1.50x60mm |
| 38. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 40. | 2420Z786 | [2] | CAPSCREW | |
| 41. | ZS18C08035 | [4] | SCREW,Hex, M8 x 35mm | KOBM08x1.25x35mm |
| 42. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 43. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 44. | ZS18C06016 | [12] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 45. | ZS31C08014 | [4] | MACHINE SCREW M08x1.25x14mm | MACHINE SCREW M08x1.25x14mm |
| 46. | ZW16X10000 | [5] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 47. | ZW16X08000 | [8] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 48. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 49. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 50. | ZW26X08000 | [18] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 51. | ZW26X06000 | [14] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 52. | ZN18C08007 | [16] | NUT | KOBM08x1.25mm |
| 53. | ZN18C06005 | [2] | NUT | KOBM06x1.0mm |
| 54. | ZW16X06000 | [2] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 56. | 2416T17662 | [1] | BRACKET | |
| 57. | 2416T17663 | [1] | BRACKET | |
| 58. | 2444Z2647D1 | [1] | HOSE | |
| 59. | 2444Z2648D1 | [1] | HOSE | |
| 60. | 2422P665 | [1] | REWORK, FLOOR PLATE | |
| 61. | 2414Z276 | [1] | INSULATION, HEAT | |
| 62. | 2414Z277 | [1] | INSULATION, HEAT | |
| 63. | 2414Z278 | [1] | INSULATION, HEAT | |
| 64. | 2414Z279 | [1] | INSULATION, HEAT | |
| 65. | 2414Z280 | [1] | INSULATION, HEAT | |
| 66. | 2414Z281 | [1] | INSULATION, HEAT | |
| 67. | R18T0026D29 | [1] | HOSE,12mm ID x 4150mm L | KOB |
| 68. | R18T0026D23 | [1] | FLEXIBLE HOSE | KOBID 12 x OD 22 x 4500mm |
| 69. | R44T0180 | [1] | COCK | KOB |
| 70. | R44T0201 | [1] | HYD CONNECTOR | KOBCOCK Superseded by part number: 113700-1381 |
| 71. | R16T0238D1 | [4] | CLIP | KOB |
