神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-031) - CHECK VALVE, ANTI Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
788 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

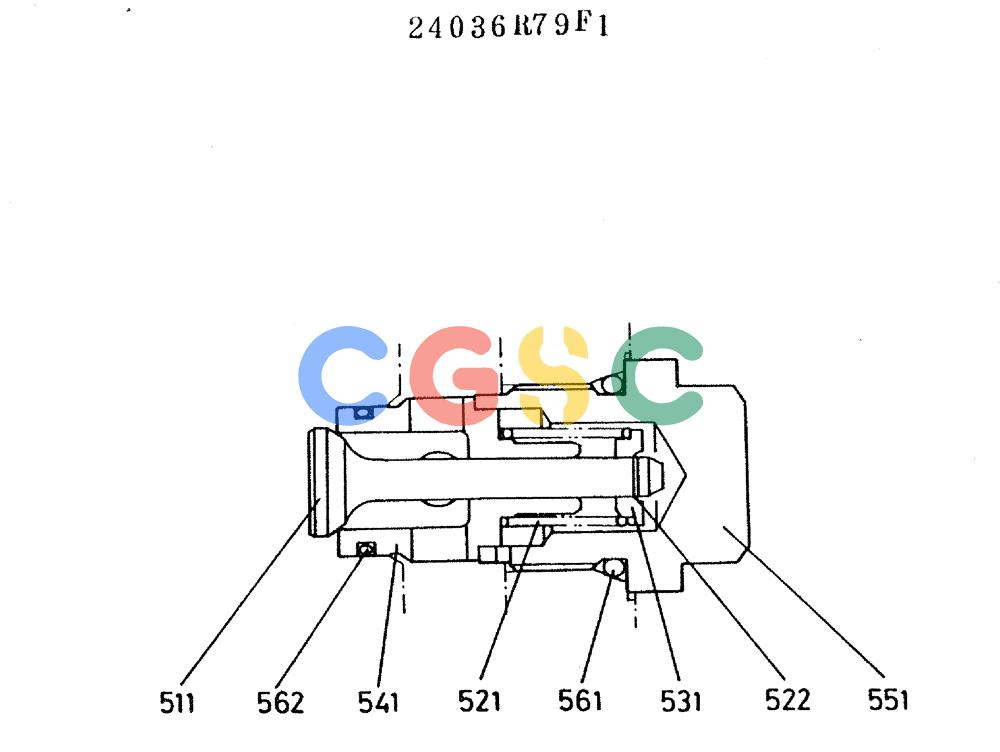

| . . | 24036R79F1 | [1] | CHECK VALVE | KOBANTI, CONSISTS OF THE FOLLOWING PARTS |
| 511. | 24036R79S511 | [1] | POPPET | |
| 521. | 24036R79S521 | [1] | SPRING | |
| 522. | 24036R79S522 | [1] | RING, LOCK | RING, LOCK |
| 531. | 24036R79S531 | [1] | GUIDE, SPRING | |
| 541. | 24036R79S541 | [1] | SEAT | |
| 551. | 24036R79S551 | [1] | PLUG | |
| 561. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 662. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
