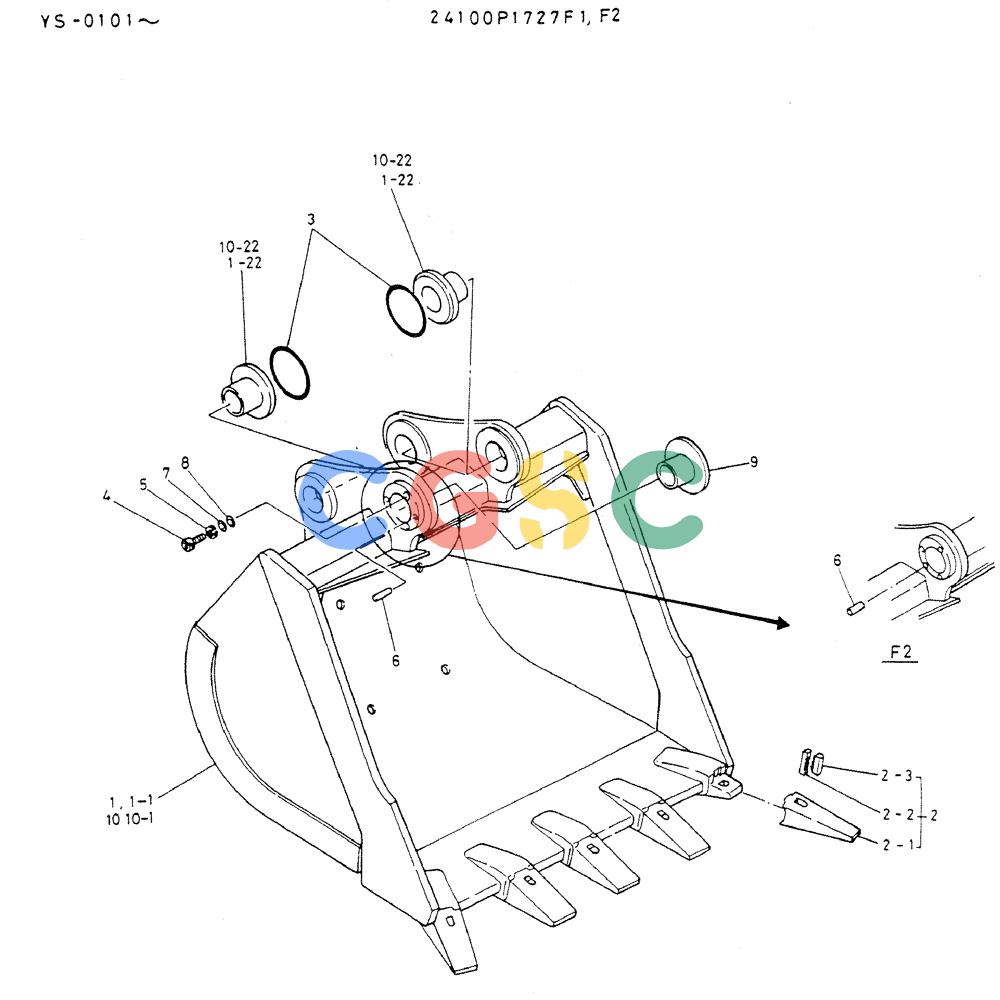

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-040) - BUCKET ASSY, 1.6M Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
152 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1727F1 | [1] | BUCKET ASSY, 1.6M3, Serial Range: YC-0101-YC-0170 | |
| . . | 24100P1727F2 | [1] | BUCKET ASSY, 1.6M3, Start Serial: YC-0171 | |
| 1. | 2412J757F1 | [1] | BUCKET ASSY, Serial Range: YC-0101-YC-0170 | |
| 1-1. | 2412J757 | [1] | BUCKET YC-0101 to YC -0170 | |
| 1-22. | 2405T911 | [3] | BUSHING | KOBYC-, Serial Range: 0101-YC-0170 |
| 2. | 2412U173F1 | [5] | BUCKET TOOTH POINT | KOBTOOTH |
| 2-1. | 2412U173S1 | [1] | POINT, TOOTH | POINT, TOOTH |
| 2-2. | 2412U62S2 | [1] | PIN | KOB |
| 2-3. | 2412U62S3 | [1] | LOCK PIN | KOB |
| 3. | 24445Z1003 | [4] | O-RING | |
| 4. | 2420Z1640D1 | [3] | SCREW | KOBM20 x 50mm Long |
| 5. | ZW22K20000 | [3] | LOCK WASHER | KOB |
| 6. | 2419T4628D1 | [1] | PIN | KOB |
| 7. | 2418T14548D2 | [3] | SHIM | KOBID 21 x OD 32 x Th 3.2mm |
| 8. | 2418T14548D1 | [30] | SHIM | KOBID 21 x OD 32 x Th 1.0mm |
| 9. | 2405T1226 | [1] | BUSHING | KOB |
| 10. | 2412J867F1 | [1] | BUCKET ASSY, Start Serial: YC-0171 | |
| 10-1. | 2412J867 | [1] | BUCKET, Start Serial: YC-0171 | |
| 10-22. | 2405T911 | [3] | BUSHING | KOB, Start Serial: YC-0171 |
