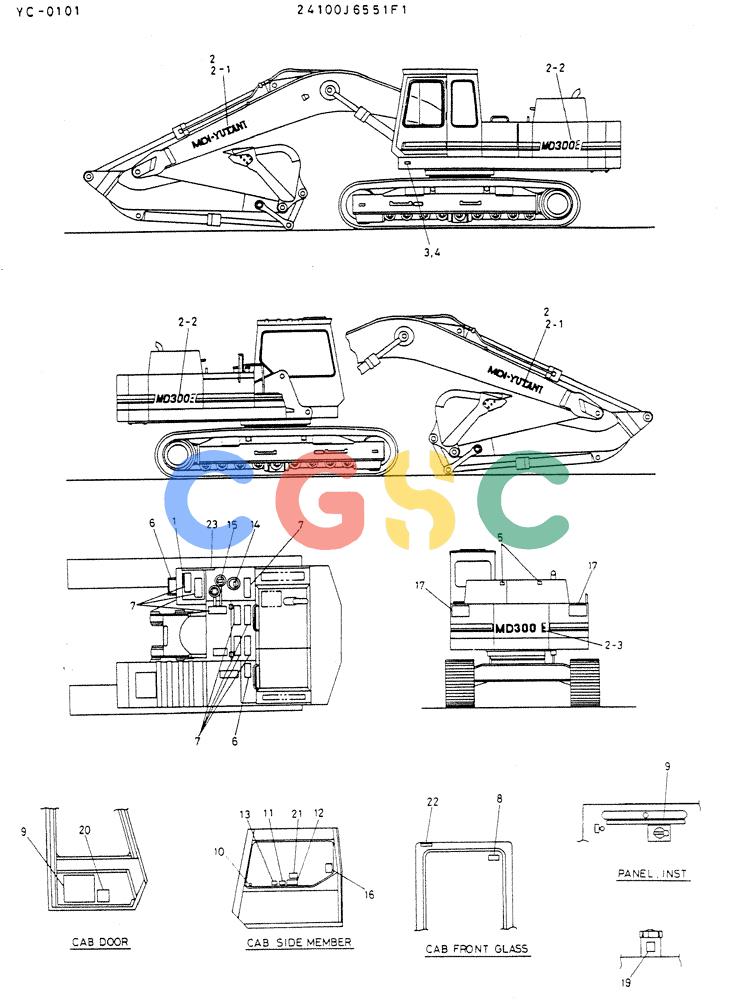

神钢零件查询(MD300LC) - EXCAVATOR BTW YC0101 - YC0300 (1/80-12/06) (08-041) - LABEL NAME-PLATE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
821 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6551F1 | [1] | LABEL, NAME-PLATE | |
| 1. | 2432T1142 | [8] | LABEL | KOB |
| 2. | 24105J4133 | [1] | SCHEME, PAINTING | |
| 2-1. | 2432J1328 | [2] | NAME-PLATE | NAME-PLATE |
| 2-2. | 2432J1335 | [2] | NAME-PLATE | |
| 2-3. | 2432J1334 | [1] | NAME-PLATE | |
| 3. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 4. | 2432T1530 | [1] | IDENTITY PLATE | KOBLABEL |
| 5. | 2432T1290D3 | [2] | LABEL | KOB |
| 6. | 2427Z329 | [2] | SHEET | KOBAnti-Slip (300x150mm) |
| 7. | 2427Z329D2 | [9] | SHEET | KOBAnti-Slip (400x150mm) |
| 8. | 2432T892 | [1] | LABEL | KOBPLATE, CAUTION |
| 9. | 2432J1341 | [1] | LABEL | LABEL |
| 10. | 2432T2415 | [1] | LABEL | KOB |
| 11. | 2432T1426 | [1] | PLATE, CAUTION LABEL | PLATE, CAUTION LABEL |
| 12. | 2432N578 | [1] | PLATE | KOB |
| 13. | 2432T1215 | [1] | DATA PLAQUE | KOBDecal, Caution - To prevent accidents and bodily injury … |
| 14. | 2432T1231 | [1] | DATA PLAQUE | KOBDecal, Warning - |
| 15. | 2432T884 | [1] | LABEL | KOB |
| 16. | 2432T2991D1 | [1] | LABEL | KOB |
| 17. | 2432N1097 | [2] | LABEL | KOBDecal, Danger - Stay out of the swing area. |
| 18. | 2432T2318 | [1] | CLAMP | KOBLABEL |
| 19. | 2432T2283 | [1] | LABEL | KOBDecal, Fuel location |
| 20. | 2432T1759 | [1] | PLATE | KOBLABEL |
| 21. | 2432P1014 | [1] | LABEL | KOB |
| 22. | 2432T2341 | [1] | LABEL | KOB |
| 23. | 2432T1202 | [1] | PLATE | KOBLABEL |
